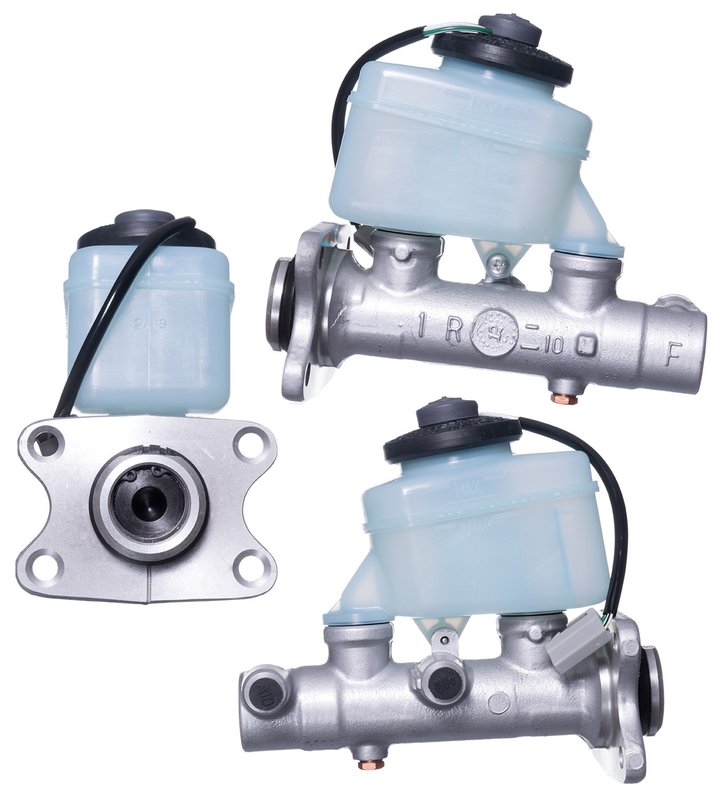

ADVICS BMT-044 Brake Master Cylinder
ADVICS Brake Master Cylinder for Toyota Land Cruiser
The ADVICS BMT-044 is a standard replacement brake master cylinder built for 1991-1992 Toyota Land Cruiser applications, including the non-USA fitment listed by the manufacturer. It features a 25.4 mm bore, aluminum housing, single plastic reservoir, and integrated sensor and cap for a direct OE-style service part.
Key Features
- Part number BMT-044 for Toyota Land Cruiser brake hydraulic service
- Fits 1991-1992 Toyota Land Cruiser, non-USA application
- 25.4 mm master cylinder bore diameter
- Aluminum master cylinder body with plastic single reservoir
- Includes reservoir, cap, gasket/seal, and sensor
- Two ports with M10 x 1.0 primary and secondary outlet threads
- Four mounting holes for OE-style installation
- ADVICS Original Equipment Manufacturer product line
Product Details
ADVICS Original Equipment Manufacturer brake master cylinders are produced with anodized and Kanizen-plated surfaces and use high-quality rubber seals and related components. The BMT-044 follows that OE-manufactured approach for Toyota Land Cruiser brake hydraulics, giving technicians a replacement master cylinder that matches the listed application and key hydraulic dimensions. This part cross-references Toyota 47201-60460 for the same application.
Common Issues This Part Can Address
- Brake pedal travel that has become excessive
- Internal master cylinder seal wear causing hydraulic pressure loss
- Fluid leakage at the master cylinder body or outlets
- Brake warning sensor concerns tied to the master cylinder assembly
- Restoration or repair of the brake hydraulic system on a 1991-1992 Toyota Land Cruiser
Installation Notes and Tips
- Verify the 25.4 mm bore, 4 mounting holes, and M10 x 1.0 outlet threads before installation.
- Bench bleed the master cylinder before connecting brake lines.
- Transfer or inspect the brake booster interface and push rod separately, as they are not included.
- Confirm reservoir and sensor connections match the vehicle’s original setup.
- Use fresh brake fluid and bleed the full hydraulic system after installation.
Quality Assurance
ADVICS supplies OE-manufactured brake hydraulic components with anodized and Kanizen-plated finishes and quality rubber sealing materials. The BMT-044 is built as a standard replacement master cylinder for the listed Toyota Land Cruiser application.
| Brand | ADVICS |
|---|---|
| Part Number | BMT-044 |
| Position | ADVICS Original Equipment Manufacturer |
| Reservoir Material | Plastic |
| Dust Boot Included | No |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Master Cylinder Bore Diameter | 25.4 |
| Bleeder Screw Included | No |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminium |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Bleeder Hoses Included | No |
| Sensor Included | Yes |
| Port Quantity | 2 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Size | M10 - 1.0 |
| Primary Outlet Thread Size | M10 - 1.0 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1992 | Toyota | Land Cruiser | N/A | non USA application; ADVICS Original Equipment Manufacturer |
| 1991 | Toyota | Land Cruiser | N/A | non USA application; ADVICS Original Equipment Manufacturer |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
