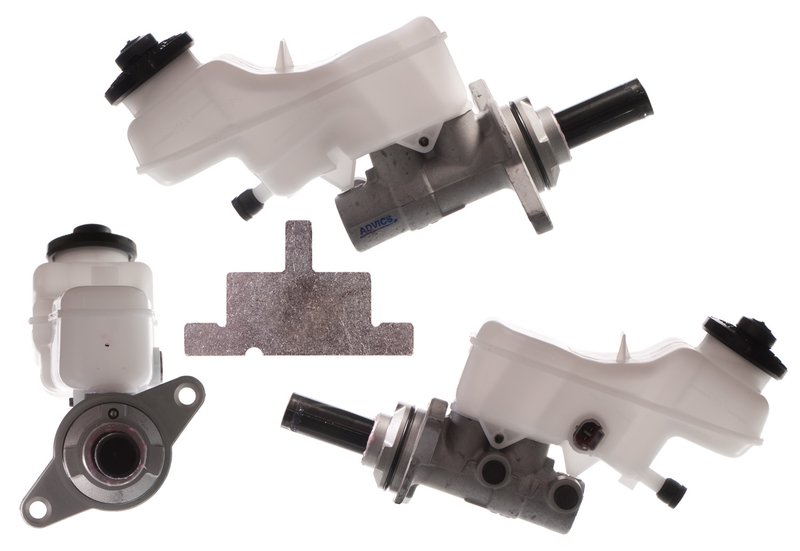

ADVICS BMTU-013 Brake Master Cylinder

OE Brake Master Cylinder for Corolla

ADVICS BMTU-013 is an OE-style brake master cylinder built for 2014-2018 Toyota Corolla applications with a 12mm outlet port. It uses OE quality rubber components and an anodized, Kanizen-plated cylinder body to help strengthen the surface finish.

Key Features

• Brake master cylinder for brake hydraulic service
• New construction
• 0.88 bore size
• OE-style cylinder design
• OE quality rubber components
• Anodized and Kanizen-plated cylinder body
• Fits 2014-2018 Toyota Corolla, N/A, with 12mm outlet port

Product Details

ADVICS Original Equipment Manufacturer BMTU-013 is built for drivers and repair shops replacing a worn or leaking master cylinder on a Toyota Corolla. The 0.88 bore size and OE-style construction support proper hydraulic response, while the plated cylinder body adds surface durability. This part cross-references Toyota 47201-02670 for the same application. Use BMTU-013 when servicing 2014-2018 Toyota Corolla brake hydraulics with the specified 12mm outlet port. The ADVICS Original Equipment Manufacturer line focuses on OE-level fit and materials for brake system replacement work.

Common Repair Symptoms

• Low or sinking brake pedal
• External brake fluid leakage at the master cylinder
• Uneven or inconsistent brake pedal feel
• Brake warning concerns tied to hydraulic pressure loss
• Need for replacement during brake hydraulic overhaul

Installation Notes

Verify the 12mm outlet port and bore size before installation. Bench bleeding is recommended before the unit is installed into the brake system. After installation, bleed the hydraulic system thoroughly and confirm pedal feel, fluid level, and leak-free operation. Match the part to the vehicle’s brake hydraulic configuration before final assembly.

Quality Assurance

ADVICS supplies OE-focused brake components, and this master cylinder is built with OE-style materials and surface treatment for consistent replacement quality. Part number BMTU-013 is engineered for direct service use on the listed Corolla applications.
