Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

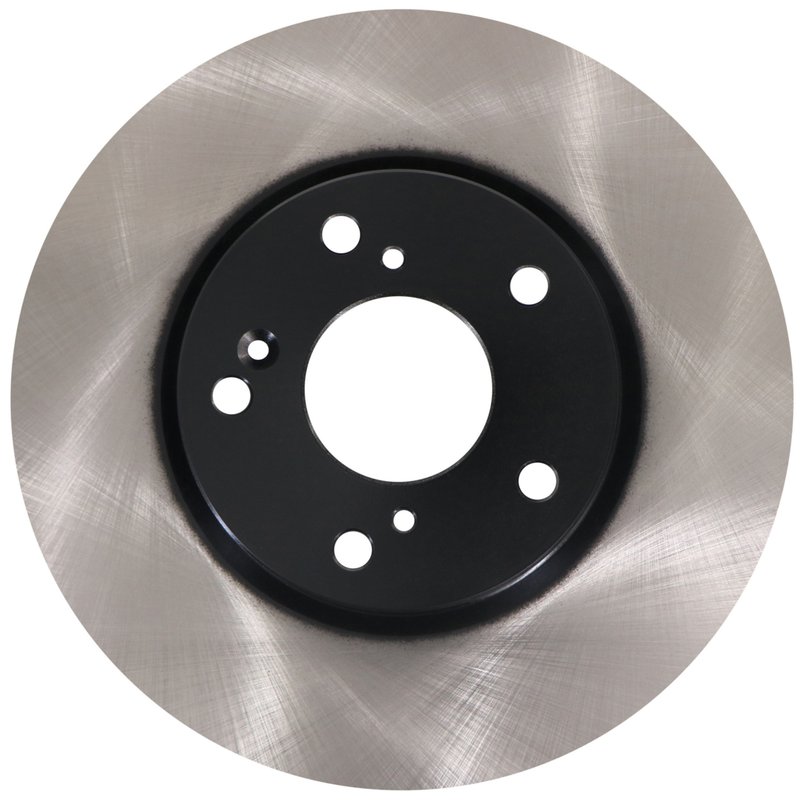

ADVICS C6F470U Disc Brake Rotor - Front
| Brand | ADVICS C6F470U |
|---|---|
| Position | Front |
| Material | High carbon |
| Discard Thickness | 0.827 |
| Discard Thickness | 21.0 |
| Nominal Thickness | 0.906 |
| Nominal Thickness | 23.0 |
| Brake Surface Finish | Non-directional |
| Overall Height | 1.858 |
| Overall Height | 47.2 |
| Outside Diameter | 11.102 |
| Outside Diameter | 282.0 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 64.2 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Stud/Lug Hole Quantity | 5 |
| Product line | Ultra-Premium OE Replacement |
| Fits | Honda · 14 vehicles |
OE replacement rotor. Manufactured from high-carbon steel for efficient airflow and heat management.
Vented design. Helps air flow freely and efficiently through the rotor.
Non-directional finish. Smooth braking surface promotes consistent contact and quieter operation.
Cross-references ADVICS C6F470U, DuraGo BR901466 and Raybestos Brakes 982053 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Front OE Replacement Rotor for Civic, Insight, Accord
ADVICS C6F470U is an ultra-premium OE replacement disc brake rotor built for front brake applications on select Honda models. It uses high carbon steel and a vented design to support consistent braking performance and efficient airflow.
Key Features
- High carbon rotor construction for stable braking performance
- Vented rotor design helps air move through the braking system
- Non-directional brake surface finish for even pad contact
- Smooth surface type for OE-style replacement fit and function
- Nominal thickness: 0.906 in. / 23.0 mm
- Discard thickness: 0.827 in. / 21.0 mm
- Outside diameter: 11.102 in. / 282.0 mm
- Center hole diameter: 64.2 mm
- 5-lug bolt pattern with 114.3 mm bolt circle diameter
Product Details
The ADVICS C6F470U front brake rotor is manufactured as an OE replacement for drivers who need a direct-fit rotor with factory-style dimensions and surface characteristics. Its high carbon steel construction and vented profile are engineered to help manage heat during repeated stops, while the non-directional finish supports proper pad bedding and consistent contact across the braking surface. This rotor is a strong match for front brake service on 2016-2024 Honda Civic, 2019-2022 Honda Insight, and 2017 Honda Accord. This part cross-references DuraGo BR901466 for the same application.
Common Issues This Rotor Can Address
- Brake pulsation caused by worn or uneven rotor surfaces
- Reduced braking smoothness from rotor scoring or glazing
- Heat buildup during frequent stop-and-go driving
- Noise related to rotor surface wear
- Front brake service needs on OE-style replacement applications
Installation Notes and Tips
Verify rotor dimensions, hub fitment, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent lateral runout, and inspect brake pads, calipers, and hardware condition during service. Proper bedding-in of new pads and rotors helps establish even contact and stable braking feel.
Quality Assurance
ADVICS positions this rotor as an ultra-premium OE replacement part, and the design reflects factory-style material selection and dimensional accuracy for front brake service.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Honda | Civic | Touring | — | — | Front | Ultra-Premium OE Replacement |
| 2023 | Honda | Civic | Touring | — | — | Front | Ultra-Premium OE Replacement |
| 2022 | Honda | Civic | Touring | — | — | Front | Ultra-Premium OE Replacement |
| 2022 | Honda | Insight | — | — | — | Front | Ultra-Premium OE Replacement |
| 2021 | Honda | Civic | — | 2.0L | L4 | Front | Ultra-Premium OE Replacement |
| 2021 | Honda | Insight | — | — | — | Front | Ultra-Premium OE Replacement |
| 2020 | Honda | Civic | i-Style | — | — | Front | Ultra-Premium OE Replacement |
| 2020 | Honda | Insight | — | — | — | Front | Ultra-Premium OE Replacement |
| 2019 | Honda | Civic | Touring | — | — | Front | Ultra-Premium OE Replacement |
| 2019 | Honda | Insight | — | — | — | Front | Ultra-Premium OE Replacement |
| 2018 | Honda | Civic | i-Style | — | — | Front | Ultra-Premium OE Replacement |
| 2017 | Honda | Accord | LX-S | — | — | Front | Ultra-Premium OE Replacement |
| 2017 | Honda | Civic | Turbo | — | — | Front | Ultra-Premium OE Replacement |
| 2016 | Honda | Civic | — | — | — | Front | Ultra-Premium OE Replacement |
| No rows match your filter. | |||||||
