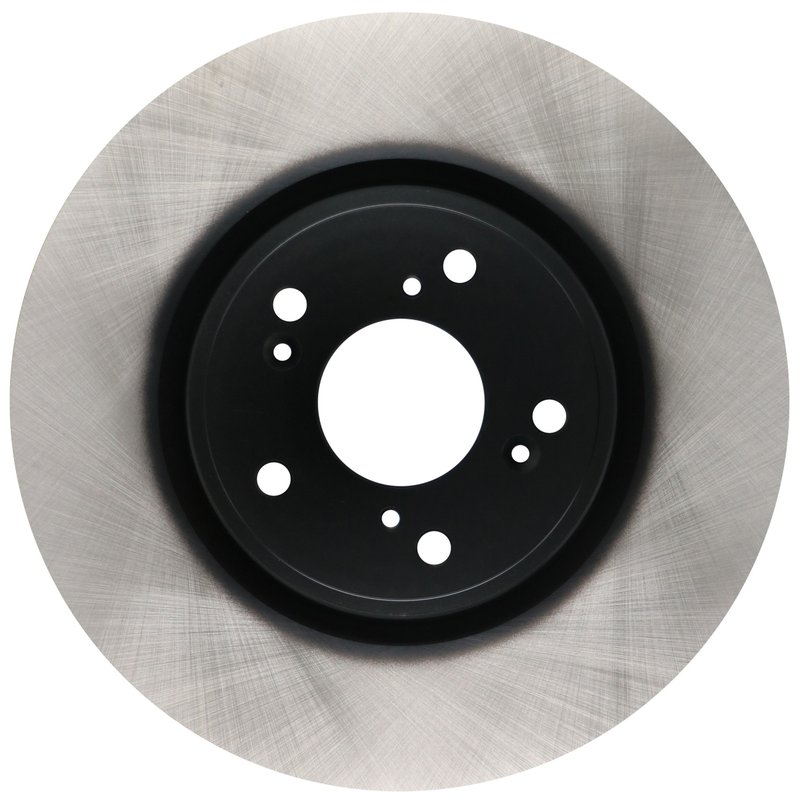

ADVICS C6F475U Disc Brake Rotor - Front

ADVICS OE Replacement Front Brake Rotor

The ADVICS C6F475U is an ultra-premium OE replacement front disc brake rotor built for precise fitment and consistent braking performance. It uses high carbon steel and a vented design to help manage heat during repeated stops on daily-driven vehicles.

Compatible with select Acura and Honda front brake applications, including the 2023-2025 Acura Integra, 2018-2025 Honda Accord, 2022-2025 Honda Civic, 2020-2025 Honda CR-V, 2017-2018 Honda CR-V, and 2023-2024 Honda HR-V.

Key Features

• High carbon rotor construction for stable braking characteristics
• Vented rotor design to promote airflow through the braking surface
• Non-directional brake surface finish for even pad contact
• Smooth surface type for OE-style replacement performance
• 12.283 in. outside diameter, 1.854 in. overall height
• Nominal thickness: 0.984 in. / 25.0 mm
• Discard thickness: 0.906 in. / 23.0 mm
• 5-lug pattern with 114.3 mm bolt circle and 64.2 mm center hole
• ABS tone ring not included

Product Details

ADVICS positions the C6F475U within its Ultra-Premium OE Replacement line, which focuses on direct-fit brake components for vehicles that require factory-style dimensions and braking feel. This rotor is manufactured from high carbon steel to support heat flow through the vented internal vanes, helping maintain rotor stability under repeated braking. The non-directional finish supports pad bedding and even surface contact, while the smooth face matches OE replacement expectations for front axle service. This part cross-references Centric Parts 121.40096 and Raybestos Brakes 982124 for the same application.

What This Rotor Helps Address

• Brake pulsation caused by worn or uneven front rotors
• Reduced braking consistency from heat buildup in stop-and-go driving
• Surface scoring or wear on the original rotor
• Noise or vibration related to rotor condition
• OE rotor replacement needs on Acura Integra and Honda Accord, Civic, CR-V, or HR-V front applications

Installation Notes and Tips

Verify rotor dimensions, hub fit, and bolt pattern before installation. Clean the hub mounting surface thoroughly to reduce runout concerns, and inspect pads, calipers, and hardware condition at the same time. Follow the vehicle manufacturer’s brake service procedure for pad bedding and torque specifications.

Quality Assurance

ADVICS manufactures this rotor as an OE replacement part using high carbon steel and application-specific dimensions for front brake service. The C6F475U is built to match the listed vehicle fitments and braking geometry for direct replacement use.
