Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

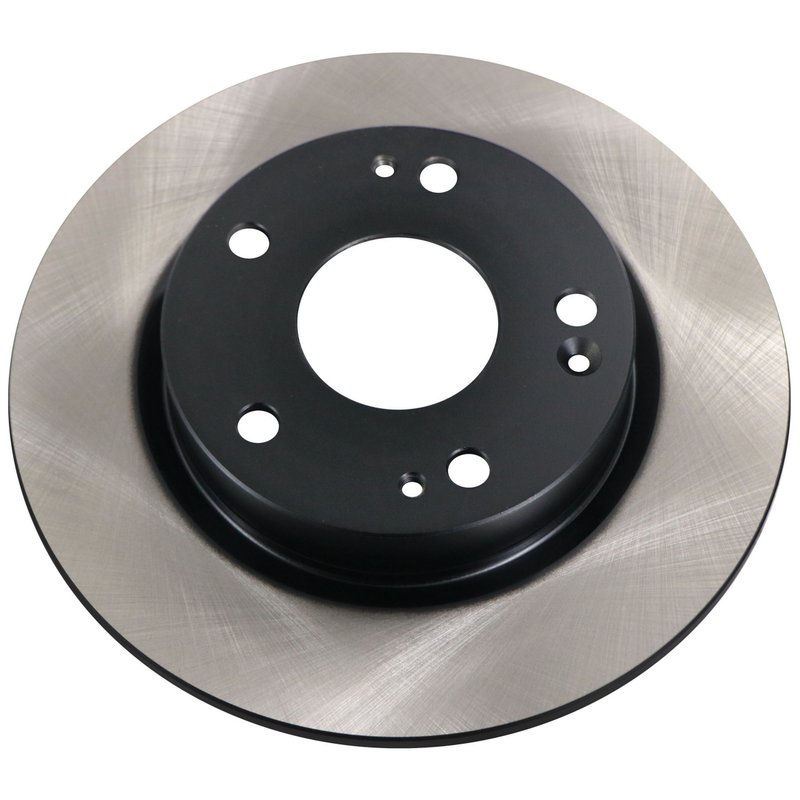

ADVICS C6R408U Disc Brake Rotor - Rear
| Brand | ADVICS C6R408U |
|---|---|
| Position | Rear |
| Material | High carbon |
| Discard Thickness | 0.315 |
| Discard Thickness | 8.0 |
| Nominal Thickness | 0.354 |
| Nominal Thickness | 9.0 |
| Brake Surface Finish | Non-directional |
| Overall Height | 1.543 |
| Overall Height | 39.2 |
| Outside Diameter | 10.236 |
| Outside Diameter | 260.0 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Center Hole Diameter | 64.1 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Stud/Lug Hole Quantity | 5 |
| Product line | Ultra-Premium OE Replacement |
| Fits | Honda · 14 vehicles |
OE replacement. Ultra-premium rotor built to original-equipment specifications.
High-carbon material. Helps manage heat for consistent braking performance.
Non-directional finish. Smooth surface promotes even pad contact and quiet operation.
Cross-references ADVICS C6R408U, Centric Parts 121.40089 and DuraGo BR901460 for the same application. See all 17.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
ADVICS Rear Disc Brake Rotor for Civic and Insight
The ADVICS C6R408U is an ultra-premium OE replacement rear disc brake rotor built for 2016-2025 Honda Civic and 2019-2022 Honda Insight applications. It uses a high carbon construction and a smooth, non-directional brake surface to support consistent braking performance and even pad contact.
Key Features
- High carbon rotor material for stable braking characteristics
- Solid rotor design for rear brake applications
- Non-directional brake surface finish for proper pad bedding
- Smooth surface type for consistent rotor-to-pad contact
- Outside diameter: 260.0 mm (10.236 in.)
- Nominal thickness: 9.0 mm (0.354 in.)
- Discard thickness: 8.0 mm (0.315 in.)
- Overall height: 39.2 mm (1.543 in.)
- 5 lug holes with 114.3 mm bolt circle diameter
- Center hole diameter: 64.1 mm
- ABS tone ring not included
Product Details
ADVICS positions the C6R408U within its Ultra-Premium OE Replacement line for drivers who want a direct-fit rear brake rotor with OE-style dimensions and material selection. This rotor is engineered to match the specified rear brake setup on Honda Civic and Honda Insight models, with a solid design and high carbon composition that support heat management and braking consistency in everyday driving.
This part cross-references Centric Parts 121.40089 for the same application.
Common Brake Issues It Can Address
- Brake pulsation from a worn or uneven rear rotor
- Noise caused by a scored or heat-affected braking surface
- Reduced braking consistency from rotor wear beyond discard thickness
- Uneven pad contact on a rotor with an irregular finish
- Rear brake service needs on Honda Civic and Honda Insight models
Installation Notes and Tips
Verify rotor dimensions, hub fitment, and rear brake compatibility before installation. Clean the hub mounting surface thoroughly, inspect pads and caliper hardware for wear, and measure rotor thickness after installation to confirm it remains above discard specifications. For best results, follow proper pad bedding procedures after service.
Quality Assurance
ADVICS manufactures OE brake components to high specification standards, and this rotor is built to meet the dimensional and material requirements associated with direct replacement rear brake service.
Compatible Vehicles
- Fits 2016-2025 Honda Civic, Rear
- Fits 2019-2022 Honda Insight, Rear
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2025 | Honda | Civic | Sport | — | — | Rear | Ultra-Premium OE Replacement |
| 2024 | Honda | Civic | Touring | — | — | Rear | Ultra-Premium OE Replacement |
| 2023 | Honda | Civic | Touring | — | — | Rear | Ultra-Premium OE Replacement |
| 2022 | Honda | Civic | Touring | — | — | Rear | Ultra-Premium OE Replacement |
| 2022 | Honda | Insight | — | — | — | Rear | Ultra-Premium OE Replacement |
| 2021 | Honda | Civic | — | 2.0L | L4 | Rear | Ultra-Premium OE Replacement |
| 2021 | Honda | Insight | — | — | — | Rear | Ultra-Premium OE Replacement |
| 2020 | Honda | Civic | i-Style | — | — | Rear | Ultra-Premium OE Replacement |
| 2020 | Honda | Insight | — | — | — | Rear | Ultra-Premium OE Replacement |
| 2019 | Honda | Civic | Touring | — | — | Rear | Ultra-Premium OE Replacement |
| 2019 | Honda | Insight | — | — | — | Rear | Ultra-Premium OE Replacement |
| 2018 | Honda | Civic | i-Style | — | — | Rear | Ultra-Premium OE Replacement |
| 2017 | Honda | Civic | Turbo | — | — | Rear | Ultra-Premium OE Replacement |
| 2016 | Honda | Civic | — | — | — | Rear | Ultra-Premium OE Replacement |
| No rows match your filter. | |||||||
