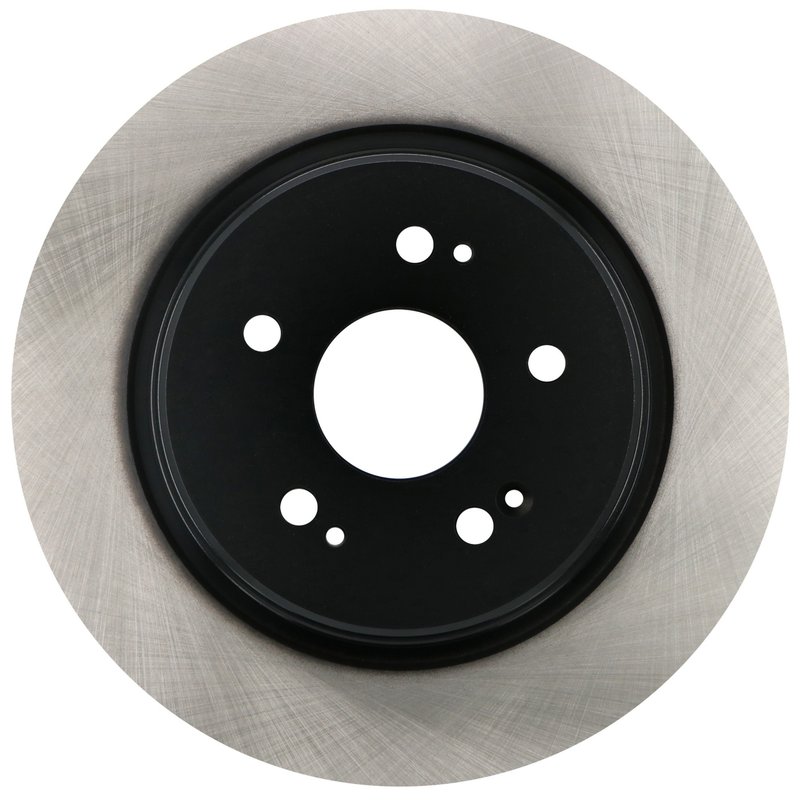

ADVICS C6R413U Disc Brake Rotor - Rear

ADVICS Rear Brake Rotor for Honda and Acura

ADVICS C6R413U is an ultra-premium OE replacement rear disc brake rotor built for precise fitment and consistent braking performance. It is engineered for 2025 Acura ADX, 2017-2025 Honda CR-V, and 2023-2025 Honda HR-V rear applications.

Key Features

• High carbon rotor material for improved thermal stability
• Solid rotor design for rear brake applications
• Non-directional brake surface finish for even pad contact
• Smooth surface type for consistent braking feel
• 12.205 in. outside diameter, 1.531 in. overall height
• 10.0 mm nominal thickness and 8.0 mm discard thickness
• 64.1 mm center hole diameter with 5 lug holes
• 114.3 mm bolt circle diameter
• ABS tone ring not included

Product Details

ADVICS C6R413U is part of the Ultra-Premium OE Replacement line, a product line focused on original-equipment-style fit and braking geometry. This rear brake rotor uses a high carbon construction to help manage heat and maintain stable rotor characteristics under repeated stops. The solid rotor profile, smooth braking surface, and non-directional finish support even pad bedding and predictable pedal response. For shoppers searching for a rear brake rotor for 2017-2025 Honda CR-V or a rear brake rotor for 2023-2025 Honda HR-V, this part number provides a direct OE-style replacement option. This part cross-references Centric Parts 121.40087 for the same application.

Common Brake Issues It Can Address

• Brake pulsation caused by rotor wear or thickness variation
• Noise from uneven rotor surface condition
• Reduced braking consistency from heat-related rotor distortion
• Service replacement for rotors at or near discard thickness
• Rear brake maintenance on Honda CR-V and Honda HR-V applications

Installation Notes and Tips

Confirm rear position, hub dimensions, and bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent rotor runout, and inspect pads, calipers, and hardware condition during service. Follow the vehicle manufacturer’s torque specifications and perform a proper brake bed-in procedure after installation. Verify rotor thickness before reuse or replacement; C6R413U is specified with a 10.0 mm nominal thickness and 8.0 mm discard thickness.

Quality Assurance

ADVICS manufactures OE disc brake rotors to high specification standards with attention to airflow and braking consistency. C6R413U is built as an OE replacement rotor for rear brake service on Acura and Honda applications, including the 2025 Acura ADX, 2017-2025 Honda CR-V, and 2023-2025 Honda HR-V.
