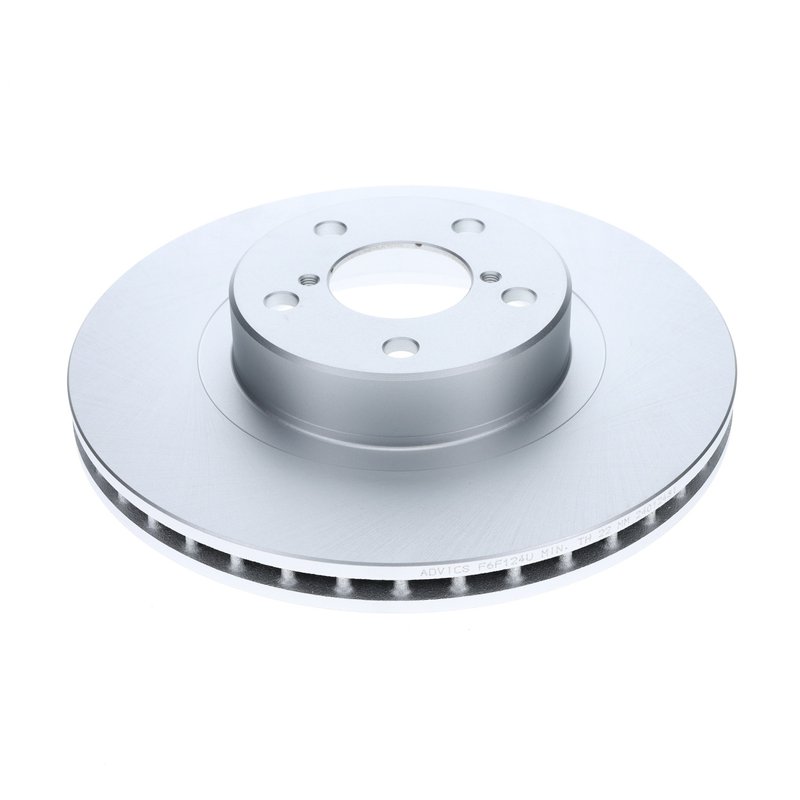

ADVICS F6F124U Disc Brake Rotor - Front

Overview of ADVICS Ultra-Premium OE Replacement Disc Brake Rotor

The ADVICS Ultra-Premium OE Replacement Disc Brake Rotor F6F124U is engineered for Subaru vehicles including the BRZ, Impreza, and Outback models. Designed with high carbon material and vented construction, this rotor offers reliable braking performance and durability.

• High carbon material for enhanced heat dissipation and wear resistance
• Vented rotor design to improve cooling and reduce brake fade
• Non-directional brake surface finish for consistent pad contact
• Nominal thickness of 0.945 inches (24.0 mm) with discard thickness at 0.866 inches (22.0 mm)
• Overall height of 2.236 inches (56.8 mm) and outside diameter of 10.894 inches (276.7 mm)
• Five stud/lug hole configuration with 100.0 mm bolt hole circle diameter
• Smooth surface type for optimal braking response

Detailed Product Description

The ADVICS F6F124U disc brake rotor is constructed from high carbon steel, which provides improved thermal conductivity and resistance to cracking under high stress. Its vented design allows air to flow between the rotor surfaces, helping to maintain lower operating temperatures during braking. The non-directional brake surface finish ensures even pad wear and consistent braking performance. With a nominal thickness of 0.945 inches and a discard thickness of 0.866 inches, this rotor meets precise specifications for safe and effective use. The rotor’s overall height and outside diameter are engineered to fit Subaru BRZ, Impreza, and Outback models, ensuring proper alignment and fitment. The five-lug hole pattern with a 100 mm bolt circle diameter matches factory mounting points for straightforward installation.

About the Ultra-Premium OE Replacement Product Line

The ADVICS Ultra-Premium OE Replacement line focuses on delivering original equipment quality and fitment for brake components. This product line is designed to meet or exceed OEM standards, providing a reliable replacement option for Subaru vehicles. The F6F124U rotor is part of this line, offering consistent performance and durability comparable to factory-installed parts.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading from standard rotors to vented design for improved heat management
• Resolving brake noise or uneven pad wear due to surface finish issues
• Maintaining proper braking performance on Subaru BRZ, Impreza, and Outback models
• Ensuring rotor thickness meets safety standards to prevent brake failure

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is above the discard limit of 0.866 inches to maintain safety. Use proper torque specifications for the five lug nuts on the 100 mm bolt circle diameter. It is recommended to inspect brake pads and hardware during rotor replacement to ensure optimal braking system performance.

Quality Assurance and Warranty

ADVICS Ultra-Premium OE Replacement rotors are manufactured to meet strict quality control standards. The high carbon material and vented design contribute to long service life and consistent braking. Warranty coverage details should be confirmed with the supplier or manufacturer, as they may vary by region.
