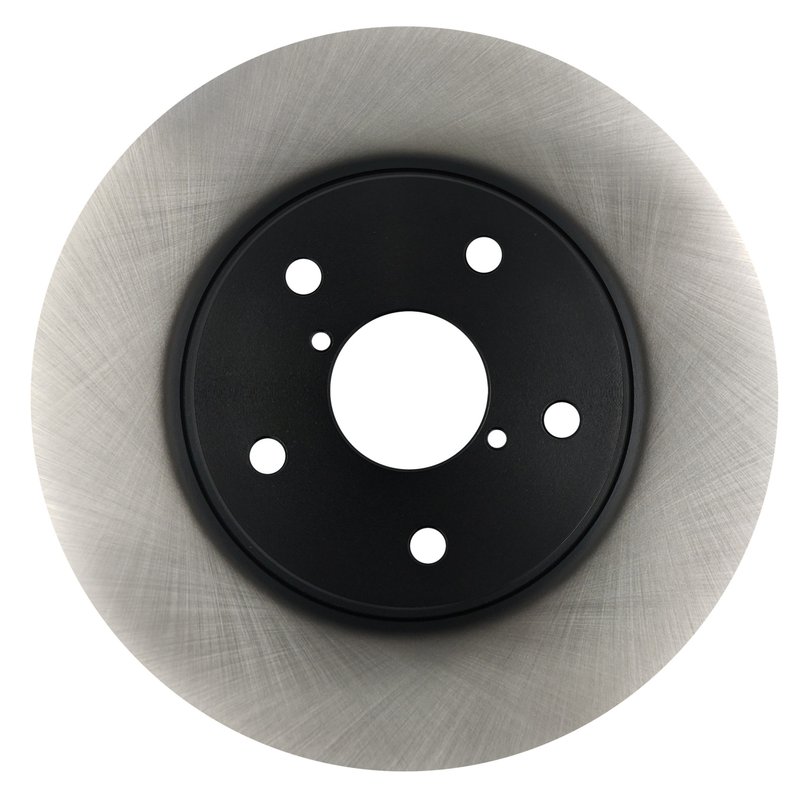

ADVICS F6F459U Disc Brake Rotor - Front

ADVICS Front Disc Brake Rotor for Subaru Legacy and Outback

The ADVICS F6F459U is an ultra-premium OE replacement front disc brake rotor built for Subaru Legacy and Subaru Outback applications. Manufactured from high carbon steel, it supports consistent braking performance while helping air move through the rotor more efficiently.

For drivers searching for a front brake rotor for 2015-2019 Subaru Legacy or 2017-2018 Subaru Outback, this ADVICS rotor matches the listed OE-style dimensions and fitment details.

Key Features

• High carbon rotor material for stable braking performance
• Vented rotor design to promote airflow and heat management
• Non-directional brake surface finish for even pad contact
• Smooth surface type for OE-style replacement service
• Outside diameter: 293.5 mm (11.555 in.)
• Nominal thickness: 28.0 mm (1.102 in.)
• Discard thickness: 26.0 mm (1.024 in.)
• 5-lug mounting pattern with 114.3 mm bolt circle diameter
• Center hole diameter: 58 mm

Product Details

ADVICS Ultra-Premium OE Replacement brake components are built to match original equipment expectations for fit and function. The F6F459U front rotor uses high carbon steel and a vented construction to help manage heat during repeated stops, while the non-directional finish supports proper pad bedding and smooth contact across the braking surface. This rotor is listed for 2015 Subaru Legacy front, 2016-2019 Subaru Legacy front with 16in wheels, and 2017-2018 Subaru Outback front with 293.5mm diameter rotor. This part cross-references Centric Parts 121.47034 for the same application.

Common Brake Issues This Rotor Can Address

• Brake pulsation from a worn or uneven rotor surface
• Reduced braking consistency from heat buildup
• Noise caused by rotor surface wear or scoring
• Thickness loss approaching discard specifications
• OE rotor replacement needs on Subaru Legacy and Subaru Outback front brake service

Installation Notes and Tips

Verify rotor diameter, thickness, center hole, and bolt pattern before installation. This rotor is for front position applications only and is listed for Subaru Legacy models with 16in wheels where specified, plus Subaru Outback models with the 293.5mm diameter rotor. Inspect pads, caliper hardware, and hub condition during brake service, and clean the hub mounting surface before installing the new rotor.

Quality Assurance

ADVICS positions this rotor as an OE replacement part built to original-equipment style specifications, with high carbon steel construction and application-specific dimensions for Subaru Legacy and Subaru Outback front brake service.
