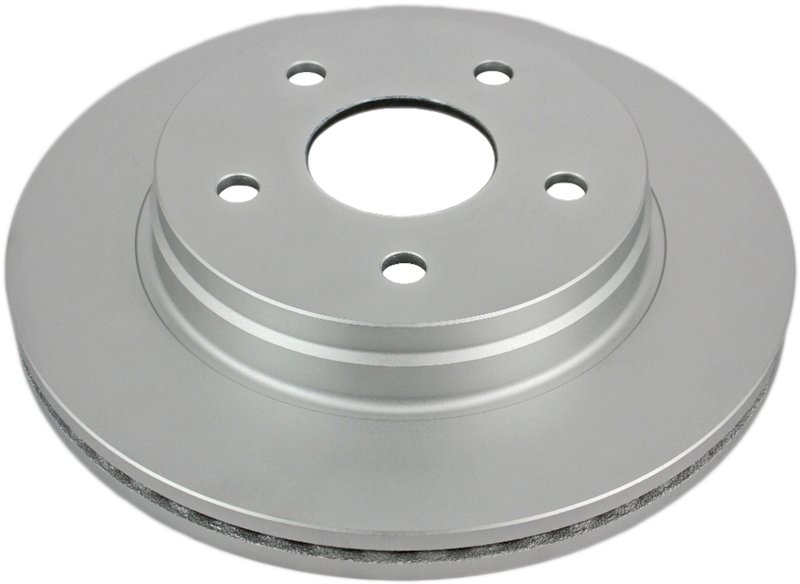

ADVICS P6F199U Disc Brake Rotor - Front

ADVICS Front Brake Rotor for Ram and Dodge

ADVICS P6F199U is an ultra-premium OE replacement front disc brake rotor built for Ram 1500, Ram 1500 Classic, Dodge Ram 1500, Dodge Durango, and Chrysler Aspen applications. It uses high carbon steel and a vented rotor design to support consistent braking performance on the front axle.

The ADVICS Ultra-Premium OE Replacement line focuses on direct-fit brake components that match original equipment dimensions and braking characteristics. For shoppers searching for a front brake rotor for 2013-2018 Ram 1500, a 2004-2009 Dodge Durango front rotor, or a 2019-2024 Ram 1500 Classic front rotor, P6F199U is built to meet those vehicle-specific requirements.

Key Features

• High carbon rotor material for stable braking under repeated heat cycles
• Vented disc brake rotor design for improved airflow through the rotor
• Non-directional brake surface finish for even pad bedding
• Smooth surface type for OE-style braking contact
• Outside diameter: 13.224 in. (335.9 mm)
• Nominal thickness: 1.102 in. (28.0 mm)
• Discard thickness: 1.039 in. (26.4 mm)
• Overall height: 2.654 in. (67.4 mm)
• Center hole diameter: 78.5 mm
• 5 lug / 5 stud wheel bolt pattern with 139.7 mm bolt circle diameter
• ABS tone ring not included

Detailed Description

ADVICS P6F199U is a front brake rotor engineered for OE replacement use on Ram and Dodge trucks and SUVs. Its high carbon construction helps manage heat more effectively during stop-and-go driving, towing, and repeated braking, while the vented rotor layout promotes airflow through the braking surface. The non-directional finish supports predictable pad contact and helps simplify the bedding process after installation. This part cross-references Bosch 16010153 and Raybestos Brakes 780073 for the same application.

What It Helps Address

• Brake pulsation caused by worn or uneven front rotors
• Reduced braking consistency from heat buildup in the rotor
• Noise or vibration related to rotor surface wear
• Front brake service needs on Ram 1500 and Dodge Durango applications
• OE-style rotor replacement for vehicles with 5-stud front hubs

Installation Notes and Tips

Verify rotor dimensions, hub fitment, and bolt circle diameter before installation. Clean the hub mounting surface thoroughly to help prevent lateral runout and brake pedal pulsation. After installation, follow the brake pad manufacturer’s bedding procedure and confirm proper torque on wheel fasteners. Compatible With 2019-2024 Ram 1500 Classic, front; 2013-2018 Ram 1500, front; 2011-2012 Ram 1500, front; 2009-2010 Dodge Ram 1500, front; 2002-2005 Dodge Ram 1500, front; 2007-2009 Chrysler Aspen, front; 2004-2009 Dodge Durango, front; and 2006-2008 Dodge Ram 1500, front.

Quality Assurance

ADVICS positions this rotor in its Ultra-Premium OE Replacement line and manufactures it from high carbon steel to support OE-style fit and braking performance. Part number P6F199U is built to match the listed front applications and dimensional requirements.
