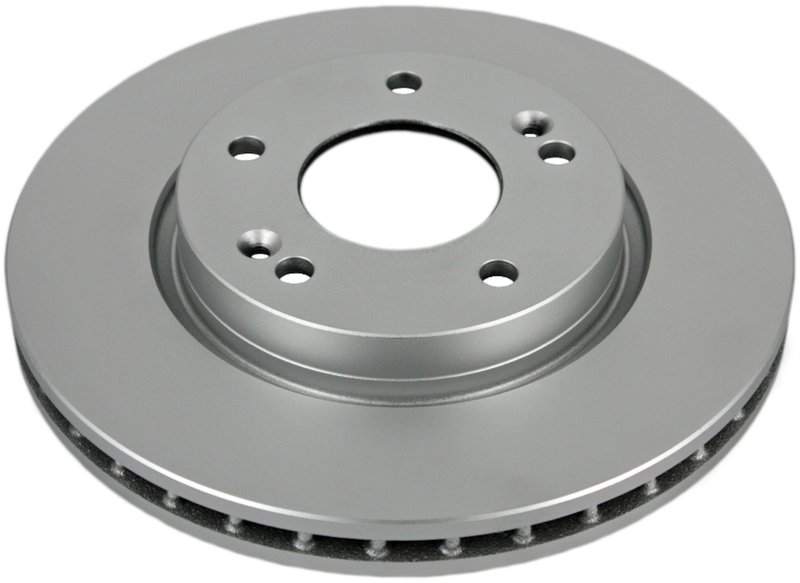

ADVICS R6F227U Disc Brake Rotor - Front

ADVICS Front Disc Brake Rotor for Hyundai Elantra

The ADVICS R6F227U is an OE replacement front disc brake rotor for 2007-2010 Hyundai Elantra models. Built from high carbon steel with a vented design and smooth, non-directional brake surface finish, it supports consistent braking performance and even pad contact.

As part of the ADVICS Ultra-Premium OE Replacement line, this rotor is engineered for drivers who want a direct-fit replacement that follows original equipment sizing and construction standards for the Hyundai Elantra front brake system.

Key Features

• Fits 2007-2010 Hyundai Elantra, front
• Part number: R6F227U
• High carbon steel construction for thermal stability
• Vented rotor design for improved airflow through the braking surface
• Non-directional brake surface finish for pad bedding consistency
• Smooth surface type for OE-style replacement fit and finish
• 5-lug pattern with 114.3 mm bolt circle diameter
• 69 mm center hole diameter

Detailed Description

ADVICS R6F227U is a front brake rotor engineered for 2007-2010 Hyundai Elantra applications. It measures 275.0 mm outside diameter, 26.0 mm nominal thickness, 24.0 mm discard thickness, and 47.4 mm overall height, with a vented rotor profile and 5-lug mounting layout. The high carbon material helps the rotor manage heat more evenly during repeated stops, while the non-directional finish supports uniform pad transfer across the braking surface.

The Ultra-Premium OE Replacement line focuses on original-equipment-style dimensions and braking characteristics. For shoppers searching for a front brake rotor for 2007-2010 Hyundai Elantra, Hyundai Elantra front disc brake rotor replacement, or ADVICS R6F227U OE replacement rotor, this part matches the listed fitment and specifications. This part cross-references Bosch 28010819 for the same application.

Common Problems This Rotor Can Address

• Brake pulsation caused by worn or uneven rotor surfaces
• Reduced braking consistency from heat-affected rotors
• Noise from rotor surface irregularities
• Pad contact issues related to scoring or glazing
• Front brake service needs on a 2007-2010 Hyundai Elantra

Installation Notes and Tips

Verify rotor dimensions, hub fitment, and wheel clearance before installation. Clean the hub mounting surface thoroughly to help prevent runout from debris or corrosion. After installation, follow the brake pad manufacturer’s bedding procedure and confirm proper torque on the wheel fasteners.

Quality Assurance

ADVICS manufactures OE replacement brake components using high carbon steel and OE-style specifications for direct replacement applications. The R6F227U is built to match the listed front fitment for 2007-2010 Hyundai Elantra models.
