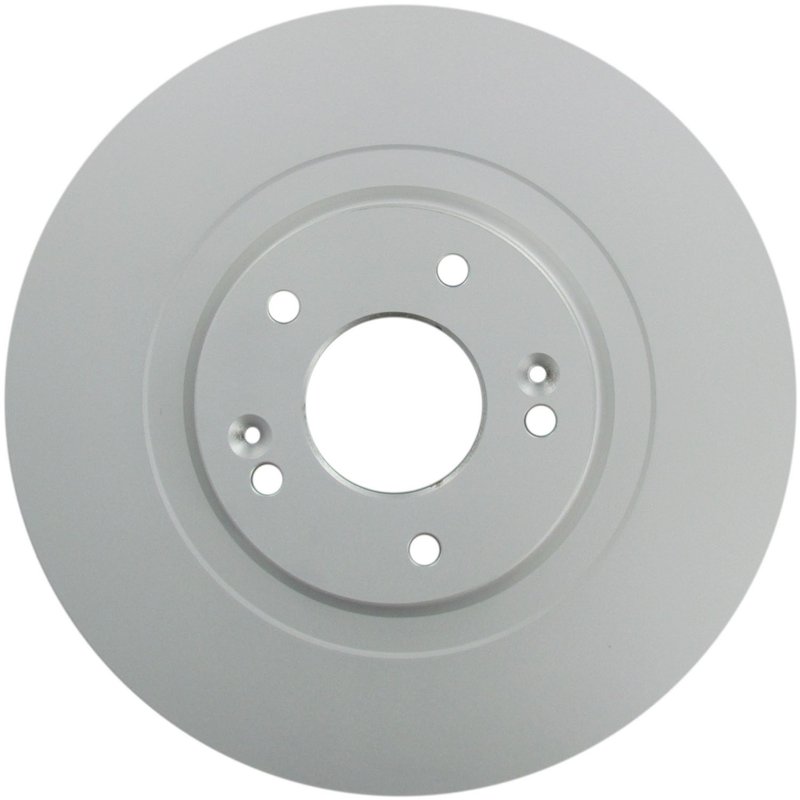

ADVICS R6F233U Disc Brake Rotor - Front

ADVICS Front Vented Brake Rotor

The ADVICS R6F233U is an ultra-premium OE replacement disc brake rotor built for front axle applications on select Hyundai and Kia vehicles. It uses high carbon steel and a vented design to support consistent braking performance, smoother operation, and efficient heat flow.

Key Features

• High carbon steel construction for stable braking performance
• Vented rotor design helps air move through the rotor more efficiently
• Non-directional brake surface finish supports even pad contact during break-in
• Smooth surface type for OE-style replacement fit and function
• Front position rotor for select Hyundai Santa Fe, Santa Fe XL, Santa Fe Sport, and Kia Sorento applications
• Part number R6F233U for easy identification and cross-reference

Product Details

ADVICS Ultra-Premium OE Replacement line focuses on direct-fit brake components built to match original equipment expectations. The R6F233U rotor measures 320.0 mm outside diameter, 28.0 mm nominal thickness, and 26.4 mm discard thickness, with a 49.1 mm overall height, 69 mm center hole diameter, and 114.3 mm bolt circle diameter. It is a 5-lug vented rotor with no ABS tone ring included. This rotor is a direct replacement choice for front brake service on 2013-2020 Hyundai Santa Fe, 2013-2019 Hyundai Santa Fe XL, 2013-2018 Hyundai Santa Fe Sport, and 2014-2015 Kia Sorento. This part cross-references Raybestos Brakes 981010 for the same application.

What This Rotor Helps Address

• Brake pulsation caused by worn or uneven rotor surfaces
• Reduced braking smoothness from heat-affected rotor wear
• Front brake service needs on Hyundai Santa Fe and Kia Sorento models
• OE-style replacement requirements for vented front disc brake systems
• Noise or vibration concerns related to rotor surface condition

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and center bore before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake pulsation. Follow proper brake bedding procedures after installation to promote even pad transfer and stable stopping feel. Confirm front axle application and vehicle year range before ordering the ADVICS R6F233U.

Quality Assurance

ADVICS positions this rotor in its Ultra-Premium OE Replacement line, using high carbon steel construction and a vented design to align with original-equipment service expectations for the listed Hyundai and Kia applications.
