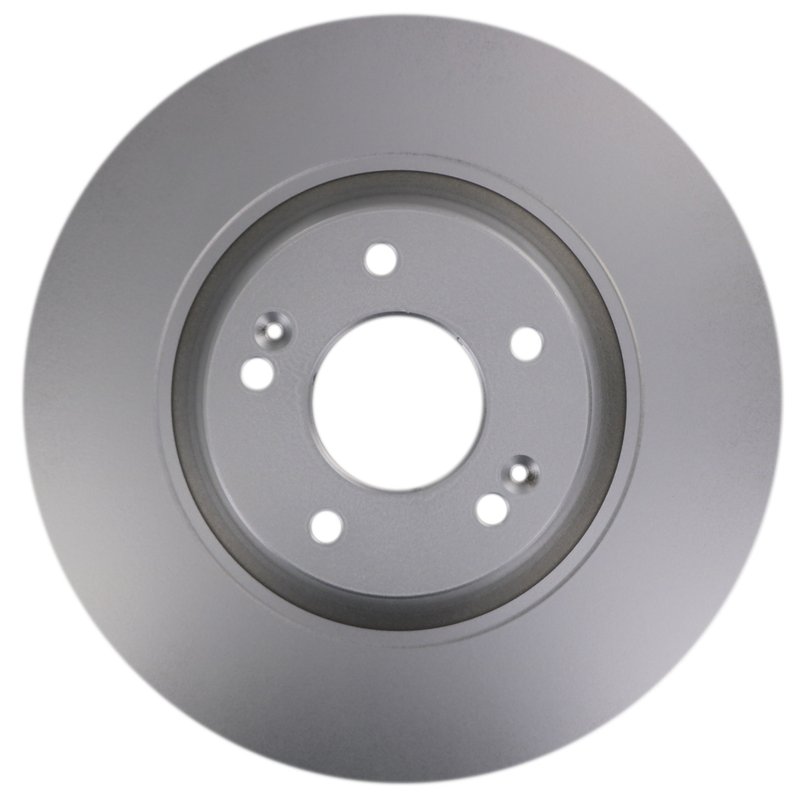

ADVICS R6F317U Disc Brake Rotor - Front
| Brand | ADVICS R6F317U |
|---|---|
| Position | Front |
| Material | High carbon |
| Discard Thickness | 1.079 |
| Discard Thickness | 27.4 |
| Nominal Thickness | 1.142 |
| Nominal Thickness | 29.0 |
| Brake Surface Finish | Non-directional |
| Overall Height | 1.882 |
| Overall Height | 47.8 |
| Outside Diameter | 12.598 |
| Outside Diameter | 320.0 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 69 |
| Mounting Bolt Hole Circle Diameter | 114.3 |
| Mounting Bolt Hole Circle Diameter | 4.5 |
| Stud/Lug Hole Quantity | 5 |
| Product line | Ultra-Premium OE Replacement |
| Fits | Kia · 4 vehicles |
OE replacement rotor. Manufactured from high-carbon steel for efficient airflow and heat management.
Vented design. Promotes freer air flow through the rotor for consistent braking performance.
Non-directional finish. Smooth brake surface helps support even pad contact and quiet operation.
Cross-references ADVICS R6F317U, Centric Parts 120.50038 and Dynamic Friction Company 600-21035 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE Replacement Front Brake Rotor for Cadenza
The ADVICS R6F317U is an ultra-premium OE replacement front disc brake rotor for the 2017-2020 Kia Cadenza. Built from high carbon steel with a vented design, it supports consistent braking performance and efficient heat flow in demanding stop-and-go driving.
Key Features
- Fits 2017-2020 Kia Cadenza, front
- High carbon rotor construction for stable braking performance
- Vented rotor design helps move air through the braking system
- Non-directional brake surface finish for even pad contact
- Smooth surface type for OE-style brake service
- Outside diameter: 320.0 mm; nominal thickness: 29.0 mm
- Discard thickness: 27.4 mm; overall height: 47.8 mm
- 5-lug pattern with 114.3 mm bolt circle and 69 mm center hole
Product Details
ADVICS R6F317U is engineered as an OE replacement disc brake rotor for front axle service on the Kia Cadenza. The high carbon steel construction helps the rotor manage heat more effectively, while the vented internal design promotes airflow through the rotor body. With a non-directional finish and smooth surface, this rotor is built for straightforward pad bedding and consistent contact across the braking surface. This part cross-references Centric Parts 120.50038 for the same application.
Common Brake Issues It Can Address
- Brake pulsation from rotor wear or thickness variation
- Reduced braking consistency from heat buildup
- Uneven pad contact on a worn front rotor
- Noise caused by a damaged or out-of-spec rotor surface
- Service replacement for a front rotor that has reached discard thickness
Installation Notes
Verify rotor dimensions, hub fitment, and wheel bolt pattern before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake vibration. Always inspect pads, calipers, and hardware condition during rotor replacement, and follow the vehicle manufacturer’s service procedure for bedding-in new brake components. Fits 2017-2020 Kia Cadenza, front. ADVICS R6F317U is also referenced by aftermarket listings for this same front brake application.
Quality Assurance
ADVICS positions this rotor within its Ultra-Premium OE Replacement line, using high carbon steel and OE-style specifications to support factory-level fitment and braking consistency.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Kia | Cadenza | Front | Ultra-Premium OE Replacement |
| 2019 | Kia | Cadenza | Front | Ultra-Premium OE Replacement |
| 2018 | Kia | Cadenza | Front | Ultra-Premium OE Replacement |
| 2017 | Kia | Cadenza | Front | Ultra-Premium OE Replacement |
