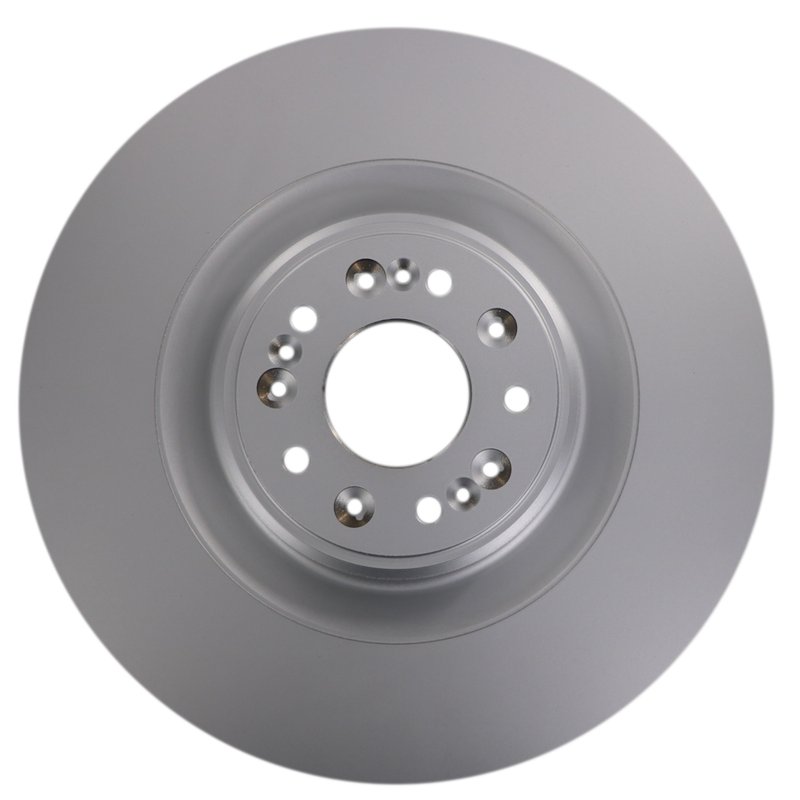

ADVICS R6F335U Disc Brake Rotor - Front

Overview of ADVICS Ultra-Premium OE Replacement Disc Brake Rotor

The ADVICS Ultra-Premium OE Replacement Disc Brake Rotor R6F335U is engineered for the Genesis G90, providing reliable braking performance with high carbon material construction. Designed to meet original equipment specifications, this vented rotor ensures consistent heat dissipation and smooth braking response.

• High carbon material for enhanced durability and heat resistance
• Vented rotor design to improve cooling and reduce brake fade
• Non-directional brake surface finish for uniform pad contact
• Nominal thickness of 1.339 inches (34.0 mm) with discard thickness at 1.276 inches (32.4 mm)
• Outside diameter of 14.764 inches (375.0 mm) suitable for Genesis G90
• Five stud/lug hole configuration with 114.3 mm bolt circle diameter
• Smooth surface type for consistent braking performance

Detailed Product Description

This ADVICS disc brake rotor, part number R6F335U, is crafted from high carbon steel to provide a balance of strength and thermal conductivity. The vented design allows air to flow between the rotor surfaces, helping to dissipate heat generated during braking and reducing the risk of warping. The rotor features a non-directional brake surface finish, which promotes even pad wear and consistent braking feel. With a nominal thickness of 1.339 inches and a discard thickness of 1.276 inches, this rotor maintains optimal performance throughout its service life. The overall height measures 2.311 inches (58.7 mm), and the center hole diameter is 69 mm, ensuring precise fitment on the Genesis G90. The five-lug hole pattern with a 114.3 mm bolt circle diameter matches factory specifications for secure mounting.

About the Ultra-Premium OE Replacement Product Line

The ADVICS Ultra-Premium OE Replacement line focuses on delivering parts that meet or exceed original equipment standards. This product line emphasizes quality materials and precise manufacturing tolerances to ensure compatibility and performance comparable to factory-installed components. The R6F335U rotor is part of this line, offering Genesis G90 owners a reliable replacement option that aligns with the vehicle’s original braking system requirements.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing reduced braking efficiency due to rotor surface wear
• Eliminating noise or vibration from uneven rotor thickness
• Upgrading to a vented rotor for improved heat dissipation
• Restoring proper rotor dimensions to maintain ABS and braking system function

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is above the discard limit of 1.276 inches to maintain safety and performance. Use proper torque specifications for the five lug nuts on the 114.3 mm bolt circle diameter. Since this rotor does not include an ABS tone ring, confirm compatibility with the vehicle’s ABS system. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance and Warranty

ADVICS manufactures this disc brake rotor to meet stringent quality standards, ensuring durability and consistent braking performance. The Ultra-Premium OE Replacement line is designed to match original equipment specifications for fit and function. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
