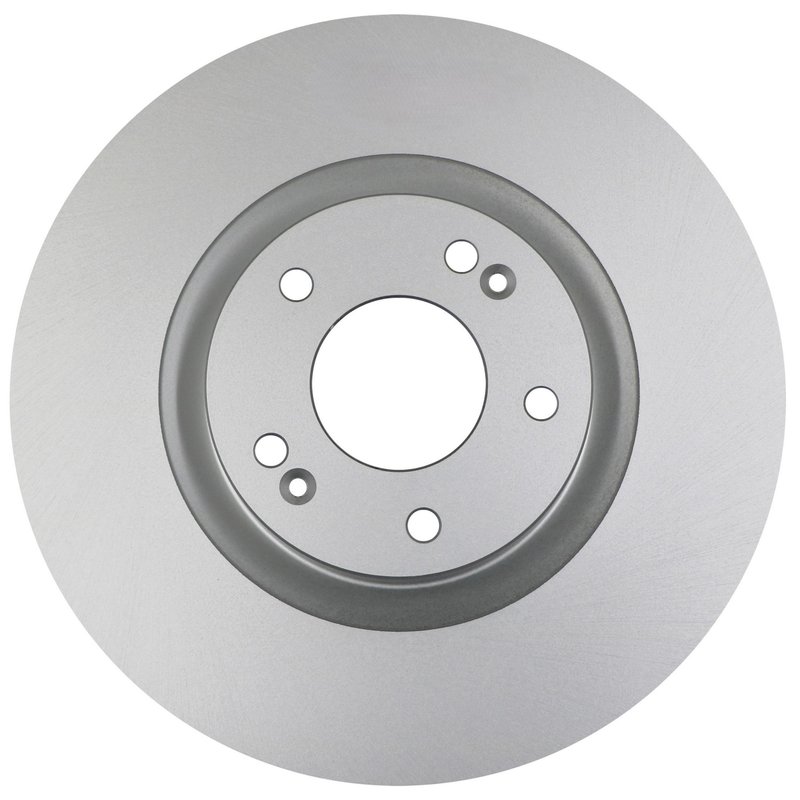

ADVICS R6F509U Disc Brake Rotor - Front

ADVICS Front Vented Brake Rotor

The ADVICS R6F509U is an Ultra-Premium OE Replacement disc brake rotor built for front brake service on select Hyundai and Kia applications. It uses high carbon steel and a vented design to support consistent braking performance, smoother operation, and efficient airflow through the rotor.

Compatible with 2021-2025 Hyundai Santa Fe, 2022-2025 Hyundai Santa Cruz, and 2021-2025 Kia Sorento front brake applications, this rotor matches OE-style dimensions and mounting specifications for direct replacement service. The ADVICS R6F509U is a practical choice when you need a front brake rotor for Hyundai Santa Fe, Hyundai Santa Cruz, or Kia Sorento maintenance.

Key Features

• High carbon rotor material for stable braking characteristics
• Vented rotor construction to help move air through the braking surface
• Non-directional brake surface finish for even pad contact
• Smooth surface type for OE-style brake service
• Outside diameter: 12.795 in. / 325.0 mm
• Nominal thickness: 1.181 in. / 30.0 mm
• Discard thickness: 1.102 in. / 28.0 mm
• Center hole diameter: 69 mm
• 5-lug mounting pattern with 114.3 mm bolt circle diameter
• ABS tone ring not included

Product Details

ADVICS positions the Ultra-Premium OE Replacement line as a direct-fit brake solution for drivers who want OE-style dimensions and material selection. The R6F509U rotor is manufactured from high carbon steel, which supports heat management during repeated stops, while the vented design helps air flow more freely through the rotor assembly. That combination makes it a strong match for front brake service on the Hyundai Santa Fe, Hyundai Santa Cruz, and Kia Sorento.

This part cross-references Hyundai/Kia OE numbers 51712P2000 and 51712P2700 for the same application. The ADVICS R6F509U is a front disc brake rotor for 2021-2025 Hyundai Santa Fe, 2022-2025 Hyundai Santa Cruz, and 2021-2025 Kia Sorento models.

Common Brake Issues This Rotor Can Address

• Front brake pulsation caused by rotor wear or thickness variation
• Brake noise related to uneven rotor surfaces
• Reduced braking smoothness from worn OE rotors
• Service replacement for rotors that have reached discard thickness
• Brake vibration during everyday stopping and slowing

Installation Notes and Tips

Verify rotor dimensions, hub fitment, and brake pad condition before installation. Clean the hub mounting surface thoroughly to help prevent runout-related vibration, and inspect calipers, slides, and pads at the same time. Because this rotor is vented and uses a non-directional finish, it should be installed with standard front brake service procedures for the listed Hyundai and Kia applications.

Quality Assurance

ADVICS manufactures this OE replacement rotor to OE-style specifications using high carbon steel and controlled surface finishing for consistent fit and function in front brake service.
