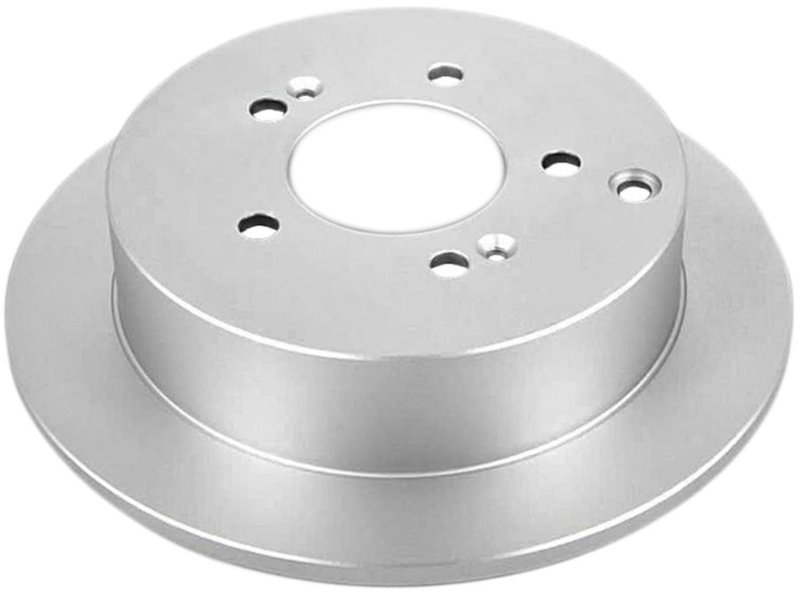

ADVICS R6R235U Disc Brake Rotor - Rear

Overview of ADVICS Ultra-Premium OE Replacement Disc Brake Rotor

The ADVICS Ultra-Premium OE Replacement Disc Brake Rotor R6R235U is engineered for reliable braking performance on select Hyundai and Kia models. Designed with high carbon material and a smooth, solid rotor surface, this part ensures consistent stopping power and durability.

• High carbon material for enhanced heat dissipation and wear resistance
• Solid disc brake rotor with a smooth, non-directional brake surface finish
• Nominal thickness of 0.398 inches (10.1 mm) and discard thickness of 0.331 inches (8.4 mm)
• Overall height of 2.406 inches (61.1 mm) and outside diameter of 11.181 inches (284.0 mm)
• Center hole diameter of 76 mm and 5 mounting bolt holes on a 114.3 mm bolt circle diameter

Product Line Details: Ultra-Premium OE Replacement

The Ultra-Premium OE Replacement line by ADVICS focuses on delivering original equipment quality and fitment. This product line is designed to meet or exceed factory specifications, providing a direct replacement for worn or damaged rotors on compatible vehicles. The R6R235U rotor maintains the integrity of the braking system with precise dimensions and material composition aligned with OE standards.

Technical Description and Specifications

This disc brake rotor is constructed from high carbon steel, which improves thermal conductivity and reduces the risk of warping under heavy braking conditions. The rotor features a solid design with a smooth surface type and a non-directional brake surface finish, allowing for even pad wear and consistent braking response. The rotor’s nominal thickness is 0.398 inches (10.1 mm), with a discard thickness of 0.331 inches (8.4 mm), indicating when replacement is necessary to maintain safe braking performance. The overall height measures 2.406 inches (61.1 mm), and the outside diameter is 11.181 inches (284.0 mm), ensuring proper fitment on the specified vehicles. The rotor includes five stud/lug holes arranged on a 114.3 mm bolt circle diameter, with a center hole diameter of 76 mm, matching the hub specifications of compatible Hyundai and Kia models.

Compatible Vehicles and Common Applications

• Hyundai Santa Fe disc brake rotor replacement
• Kia Sportage front or rear rotor upgrade
• Hyundai Tucson brake rotor maintenance
• Addressing rotor wear and brake noise issues
• Replacing warped or scored rotors for improved braking

Installation Notes and Tips

Ensure the rotor surface is clean and free of rust or debris before installation. Verify the rotor thickness is above the discard limit of 0.331 inches (8.4 mm) to maintain braking safety. Use proper torque specifications for the 5 mounting bolts on the 114.3 mm bolt circle diameter. This rotor does not include an ABS tone ring, so confirm compatibility with your vehicle’s ABS system. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance and Warranty

The ADVICS Ultra-Premium OE Replacement disc brake rotor R6R235U is manufactured to meet stringent quality standards consistent with original equipment specifications. While specific warranty details are not provided, ADVICS products typically undergo rigorous testing to ensure durability and performance on Hyundai and Kia vehicles.
