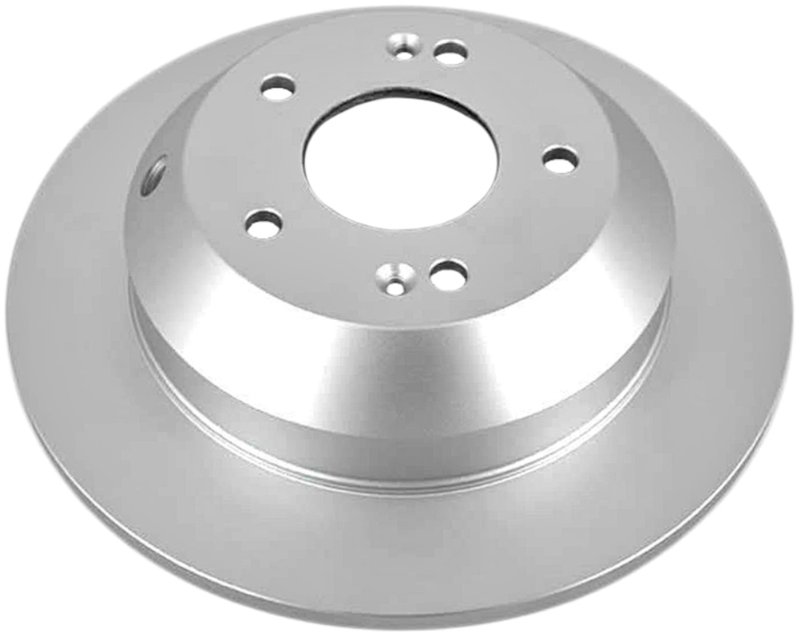

ADVICS R6R238U Disc Brake Rotor - Rear

Overview of ADVICS Ultra-Premium OE Replacement Disc Brake Rotor

The ADVICS Ultra-Premium OE Replacement Disc Brake Rotor (Part Number R6R238U) is engineered for reliable braking performance on select Hyundai and Kia vehicles. Designed with high carbon material and a solid rotor construction, this part ensures consistent stopping power and durability.

• High carbon material for enhanced heat dissipation and wear resistance
• Solid disc brake rotor design for stable braking performance
• Non-directional brake surface finish for uniform pad contact
• Compatible with Hyundai Santa Fe, Santa Fe Sport, Santa Fe XL, Kia Sedona, and Sorento models
• Nominal thickness of 11.0 mm and discard thickness of 9.4 mm for precise wear limits
• Outside diameter of 302.0 mm and overall height of 71.4 mm
• Five lug holes with a mounting bolt hole circle diameter of 114.3 mm

ADVICS Ultra-Premium OE Replacement Product Line Details

The Ultra-Premium OE Replacement line by ADVICS focuses on delivering original equipment quality and fitment for brake components. This disc brake rotor meets stringent manufacturing standards to provide consistent performance and durability comparable to factory-installed parts. The line is designed to offer a direct replacement solution for vehicles requiring reliable braking components without modification.

Technical Specifications and Features

This disc brake rotor is constructed from high carbon steel, which improves heat management and reduces the risk of warping under heavy braking conditions. The rotor features a smooth, non-directional brake surface finish that promotes even pad wear and consistent braking response. With a solid rotor type, it is optimized for vehicles that do not require vented rotors. The rotor’s dimensions include an outside diameter of 302.0 mm (11.89 inches), an overall height of 71.4 mm (2.811 inches), and a center hole diameter of 69 mm, ensuring proper fitment on compatible Hyundai and Kia models. The mounting bolt hole circle diameter is 114.3 mm with five lug holes, matching factory specifications for secure installation.

Compatible Vehicles and Common Applications

• Replacement rotor for Hyundai Santa Fe, Santa Fe Sport, and Santa Fe XL models
• Suitable for Kia Sedona and Sorento vehicles
• Addresses issues such as brake rotor wear, vibration during braking, and reduced braking efficiency
• Helps resolve rotor thickness below discard limits and surface irregularities
• Ideal for restoring braking performance after rotor damage or wear

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it meets or exceeds the nominal thickness of 11.0 mm and is above the discard thickness of 9.4 mm. Clean the rotor surface to remove any protective coatings or contaminants before mounting. Verify the mounting bolt hole circle diameter and lug hole quantity match the vehicle specifications. Proper torque specifications should be followed when securing the rotor to avoid warping or uneven wear.

Quality Assurance and Warranty Information

ADVICS disc brake rotors are manufactured to meet original equipment standards, ensuring consistent quality and performance. The Ultra-Premium OE Replacement line undergoes rigorous testing to comply with industry requirements. Warranty coverage details should be confirmed with the product documentation or manufacturer, as they may vary by region and application.
