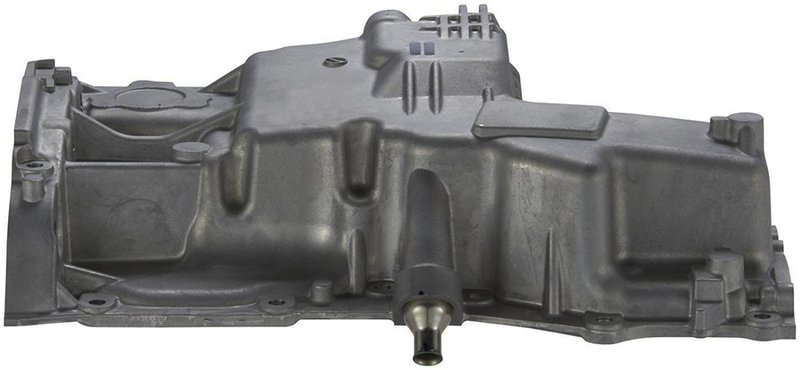

Agility Autoparts 3310016 Engine Oil Pan
OE Quality 60-Day Returns
Agility Autoparts
 Engine Oil Pan

Agility Autoparts 3310016 Engine Oil Pan

Brand Agility Autoparts 3310016
Material Aluminum
Baffled Yes
Drain Plug Included Yes
Windage Tray Included No
Drain Thread Size M14 x 1-1/2
Product line Engine Oil Pan
Fits Mazda · 2 vehicles

Aluminum construction. Lightweight replacement material for the engine oil pan assembly.

Baffled design. Helps manage oil movement inside the pan during operation.

Drain plug included. Supports routine oil service with a serviceable drain point.

Cross-references Dorman - OE Solutions 264-051, Spectra Premium MZP07A and 311-58814 for the same application. See all 9.

$196.02Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $196.02
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Oil Pan options

Engine Oil Pan Overview

Agility Autoparts engine oil pan part number 3310016 is a direct replacement for the factory-style oil pan used on select Mazda applications. It is built from aluminum and includes a baffled design to help manage oil movement inside the pan.

Compatible with 2004-2005 Mazda 3, this engine oil pan is a practical choice for replacing a damaged, leaking, or corroded pan. The included drain plug and M14 x 1-1/2 drain thread size support serviceable oil changes, while the absence of a windage tray keeps the design focused on the oil pan assembly itself.

  • Aluminum construction for a lightweight, corrosion-resistant replacement
  • Baffled design to help control oil slosh inside the pan
  • Drain plug included for routine oil service
  • M14 x 1-1/2 drain thread size

Detailed Fitment and Function

Fits 2004-2005 Mazda 3, N/A. This engine oil pan is used to contain engine oil at the bottom of the crankcase and provide a drain point for maintenance. Part number 3310016 is also referenced by Dorman - OE Solutions 264-051 and Spectra Premium MZP07A for the same application.

Common Replacement Reasons

  • Cracked or punctured oil pan housing
  • Oil leaks from the pan or drain area
  • Damaged drain threads that prevent proper sealing
  • Oil control concerns related to a worn or missing baffled pan

Installation Notes and Quality

Verify drain thread size and pan configuration before installation. Clean the sealing surface thoroughly and inspect the gasket or sealant method required by the vehicle service procedure. Part number 3310016 is supplied by Agility Autoparts, a North American aftermarket brand with distribution warehouses in Canada and the United States for efficient parts availability.

Related reading

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2005Mazda32.0LL4Engine Oil Pan
2004Mazda32.0LL4Engine Oil Pan
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 264-051Spectra Premium — MZP07A311-58814KMZP7ALF5010400BLF5010400CLF5010400ELF5010400HLF5010400J
