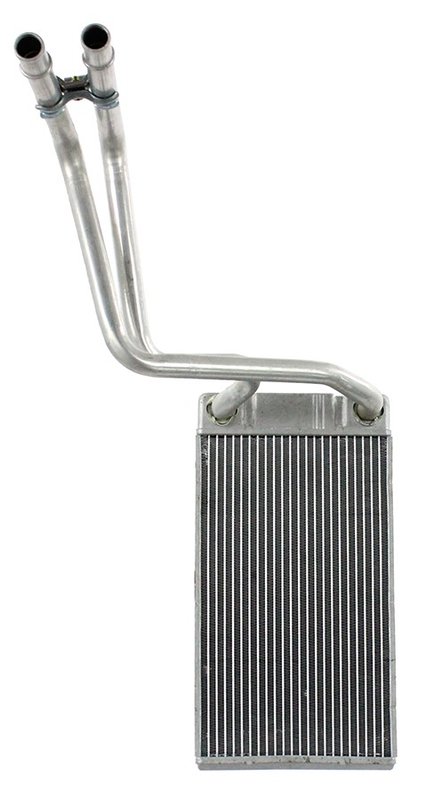

Agility Autoparts 9010763 HVAC Heater Core

Agility Autoparts Heater Core for Tacoma

Agility Autoparts Heater Core 9010763 is an aluminum HVAC heater core built for direct replacement service in select Toyota Tacoma applications. It is sized for the factory heater box and uses aluminum core and tank construction with 0.750 in inlet and outlet pipe diameters.

Compatible With 2016-2023 Toyota Tacoma heater core applications, this part supports cabin heat performance in trucks that need a replacement heater core for the HVAC system. The Agility Autoparts heater core line focuses on aftermarket wholesale coverage with North American distribution support in Canada and the United States.

Key Features

• Part number 9010763
• Aluminum core material and aluminum tank material
• Aluminum construction for HVAC heater core service
• 0.750 in inlet pipe diameter
• 0.750 in outlet pipe diameter
• Core dimensions: 1.000 in depth, 9.500 in height, 6.000 in width
• Direct-fit coverage for Toyota Tacoma heater core replacement

Product Details

This heater core is built around aluminum construction for the core and tanks, which is a common OE-style material choice for HVAC heat exchangers. The compact 9.500 in by 6.000 in core size and 1.000 in depth help match the factory heater case layout, while the 0.750 in inlet and outlet pipe diameters support proper coolant flow connection points. Agility Autoparts 9010763 is listed for 2017-2023 Toyota Tacoma and for 2016 Toyota Tacoma from 08/2015, making it a focused replacement option for Tacoma heater core service.

This part cross-references Four Seasons 92368 and Spectra Premium 93083 for the same application.

Common Repair Uses

• Restores weak or inconsistent cabin heat
• Addresses coolant leakage from the heater core assembly
• Helps correct fogging caused by heater core seepage
• Replaces a clogged core that restricts heater performance
• Supports repair after corrosion or internal blockage in the HVAC system

Installation Notes

Verify the vehicle build date before ordering for 2016 Toyota Tacoma applications, since coverage begins from 08/2015. Confirm inlet and outlet pipe size, heater hose routing, and heater box fitment before installation. Proper coolant draining, system flushing, and air bleeding are recommended during heater core replacement to help protect the new component and restore normal HVAC operation.

Quality Assurance

Agility Autoparts supplies aftermarket automotive parts through distribution warehouses in Canada and the United States, supporting timely fulfillment for wholesale buyers. Part number 9010763 is listed with defined material, dimensional, and fitment data for Toyota Tacoma heater core replacement.
