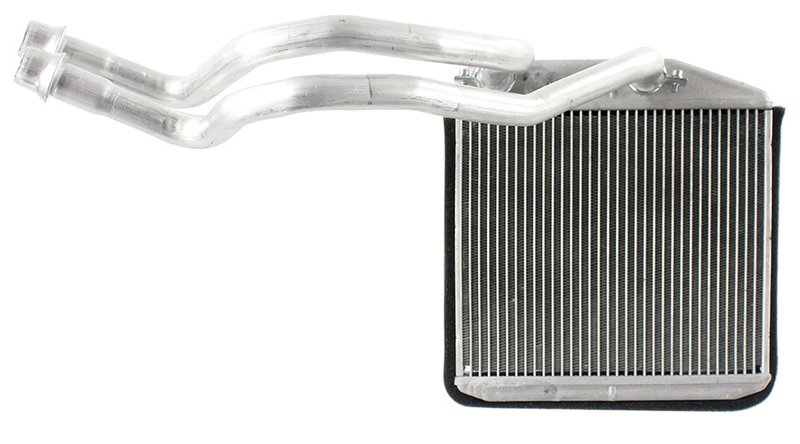

Agility Autoparts 9010835 HVAC Heater Core
| Brand | Agility Autoparts 9010835 |
|---|---|
| Core Material | Aluminum |
| Construction | Aluminum |
| Core Depth (in) | 1.000 |
| Core Height (in) | 6.625 |
| Core Width (in) | 8.000 |
| Heater Core Inlet Connection | 20 mm quick connect |
| Heater Core Outlet Connection | 20 mm quick connect |
| Product line | Heater Core |
| Fits | Fiat and Jeep · 13 vehicles |
Aluminum construction. Built with aluminum core material for efficient HVAC heat transfer.
Quick-connect fittings. Uses 20 mm inlet and outlet connections for specified heater core service.
Agility Autoparts 9010835. Aftermarket heater core from a North American-based parts supplier.
Cross-references Dorman - HELP 92427, Spectra Premium 98202 and 68266040AA for the same application. See all 3.
Heater Core Overview
Agility Autoparts 9010835 is an HVAC heater core built with aluminum core material and aluminum construction. It uses 20 mm quick-connect inlet and outlet connections for a direct-style heater core replacement in supported applications.
Compatible With 2015-2021 Jeep Renegade and 2016-2021 Fiat 500X heater core applications, this part number 9010835 is sized for the listed HVAC housing dimensions and connection style. It cross-references Dorman - HELP 92427 and Spectra Premium 98202 for the same application.
Key Features
- Aluminum core material and aluminum construction for HVAC heat transfer.
- 20 mm quick-connect inlet and outlet connections.
- Core dimensions: 1.000 in depth, 6.625 in height, and 8.000 in width.
- Agility Autoparts heater core, part number 9010835.
Product Details
This HVAC heater core is intended for vehicles that use the listed connection style and core dimensions. In supported Jeep Renegade and Fiat 500X applications, it restores heater circuit function by replacing a leaking, restricted, or heat-transfer-limited core. The aluminum construction supports efficient thermal transfer within the HVAC system, while the quick-connect fittings simplify line attachment where specified by the vehicle.
Common Issues It Can Address
- Loss of cabin heat from a leaking or clogged heater core.
- Coolant odor or moisture inside the HVAC case.
- Poor heat output from restricted coolant flow through the core.
- Temperature inconsistency caused by internal heater core damage.
Installation Notes
Verify the heater core dimensions and 20 mm quick-connect connections against the original part before installation. Confirm fitment by year, make, and model for Jeep Renegade and Fiat 500X applications, and inspect the HVAC housing and coolant lines for wear or contamination during service. Part number 9010835 should be matched to the vehicle’s original heater core configuration.
Quality Assurance
Agility Auto Parts is a North American-based aftermarket supplier with distribution warehouses in Canada and the United States, supporting efficient logistics for wholesale automotive parts.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2021 | Fiat | 500X | 1.3L | L4 | Heater Core |
| 2021 | Jeep | Renegade | 1.3L | L4 | Heater Core |
| 2020 | Fiat | 500X | 1.3L | L4 | Heater Core |
| 2020 | Jeep | Renegade | 2.4L | L4 | Heater Core |
| 2019 | Fiat | 500X | 1.3L | L4 | Heater Core |
| 2019 | Jeep | Renegade | 1.4L | L4 | Heater Core |
| 2018 | Fiat | 500X | 2.4L | L4 | Heater Core |
| 2018 | Jeep | Renegade | — | — | Heater Core |
| 2017 | Fiat | 500X | 2.4L | L4 | Heater Core |
| 2017 | Jeep | Renegade | 2.4L | L4 | Heater Core |
| 2016 | Fiat | 500X | 1.4L | L4 | Heater Core |
| 2016 | Jeep | Renegade | 1.8L | L4 | Heater Core |
| 2015 | Jeep | Renegade | — | — | Heater Core |
