Airtex E3506M Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC

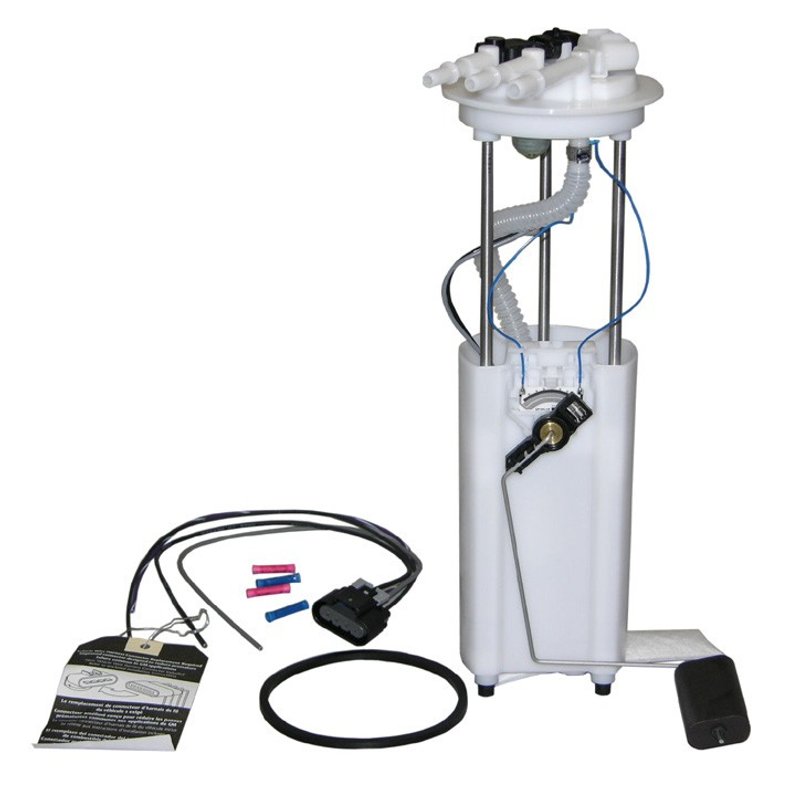

The Airtex E3506M fuel pump module assembly is designed specifically for Chevrolet Astro and GMC Safari models. This in-tank electric fuel pump module ensures consistent fuel delivery with integrated components tailored to your vehicle's requirements.

• Fuel sending unit included for accurate fuel level readings
• Negative ground electrical system compatibility
• White male connector with blade-type terminals (4 terminals)
• External strainer inlet with quick connect outlet fitting
• Includes gasket/seal and fuel tank pressure sensor
• Minimum flow rating of 20.0 and minimum pressure of 62.0 psi
• Specific fit for Chevrolet Astro and GMC Safari

Detailed Features and Specifications

The Airtex E3506M fuel pump module assembly is an electric pump designed for in-tank installation, providing reliable fuel delivery for Chevrolet Astro and GMC Safari vehicles. It includes a fuel sending unit for precise fuel level monitoring and a fuel tank pressure sensor to maintain optimal system performance. The module features a white male connector with four blade terminals, ensuring secure electrical connections with a negative ground system. The inlet uses an external strainer to protect the pump from debris, while the outlet employs a quick connect fitting for efficient fuel flow. This assembly comes with a gasket/seal to ensure a proper fit and prevent leaks. The pump delivers a minimum flow rate of 20.0 gallons per hour and maintains a minimum pressure of 62 psi, meeting the regular grade type requirements for these specific vehicle models.

Compatible Vehicles and Applications

• Chevrolet Astro fuel pump replacement
• GMC Safari fuel pump module upgrade
• Resolving fuel delivery issues in Chevrolet Astro
• Replacing faulty fuel sending unit in GMC Safari
• Addressing fuel tank pressure sensor malfunctions

Installation Notes and Tips

Installation of the Airtex E3506M fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the vehicle's battery is disconnected before beginning work to prevent electrical hazards. The included gasket/seal must be properly seated to avoid fuel leaks. Since mounting hardware and lock ring are not included, reuse existing components or source compatible parts. Verify connector polarity and terminal connections match the vehicle's wiring harness. It is recommended to inspect the fuel tank and lines for contamination before installation to prolong pump life.

Quality Assurance and Warranty Information

Airtex fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The E3506M part number undergoes rigorous testing to ensure durability and reliable performance in Chevrolet Astro and GMC Safari vehicles. This product includes a gasket/seal and fuel tank pressure sensor to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
