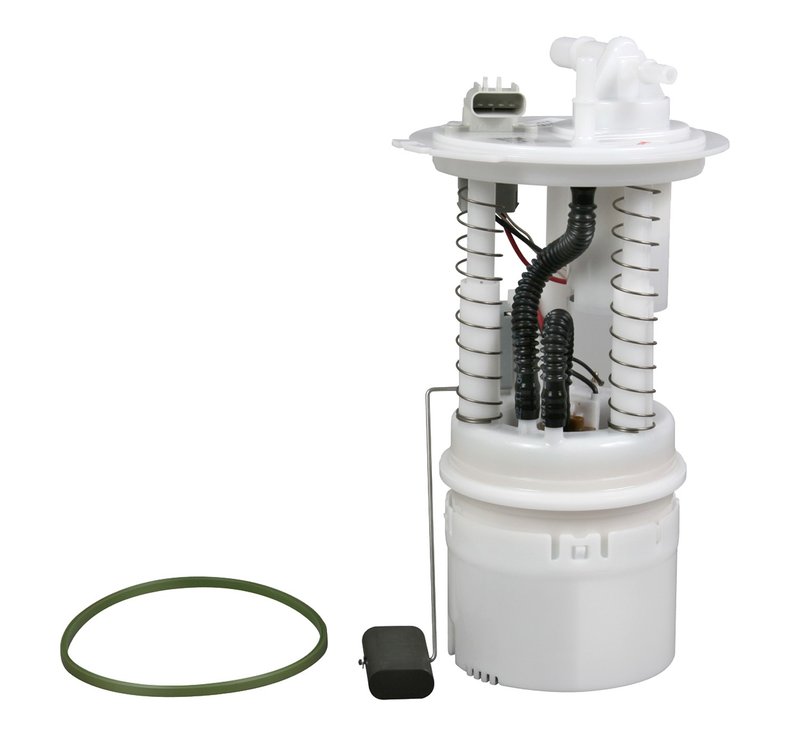

Airtex E7167M Fuel Pump Module Assembly

Overview of Airtex Fuel Pump Module Assembly E7167M

The Airtex Fuel Pump Module Assembly E7167M is designed specifically for Chrysler Sebring and Dodge Stratus models. This in-tank electric fuel pump module includes a fuel sending unit and is engineered to meet the exact specifications required for these vehicles.

• Fuel sending unit included for accurate fuel level readings
• Negative ground compatible for proper electrical connection
• Outlet outside diameter of 9.7 mm with quick connect outlet type
• 300 mm wiring harness length with 20 gauge wire for reliable power delivery
• White oval connector with four blade terminals (male terminals, female connector)
• Plastic housing material with included gasket or seal for secure installation
• External strainer included to protect the pump from debris
• Top mount diameter of 158 mm designed for specific fitment
• In-tank installation with one inlet port and one outlet port
• Regular grade type pump with a minimum flow rating of 25

Detailed Product Description

The Airtex E7167M fuel pump module assembly is an electric pump designed for in-tank installation in Chrysler Sebring and Dodge Stratus vehicles. It features a fuel sending unit to provide accurate fuel level data to the vehicle’s gauge. The module uses a negative ground electrical system and includes a 300 mm wiring harness with 20 gauge wire, ensuring consistent electrical performance. The connector is white and oval-shaped with four blade terminals, designed for a secure and specific fit. The plastic housing is durable and comes with a gasket or seal to prevent leaks during installation. An external strainer is included to filter out contaminants before fuel reaches the pump, helping maintain fuel system integrity. The outlet has a quick connect type fitting with a 9.7 mm outside diameter, facilitating straightforward connection to the fuel line. This module is intended for specific fitment applications, matching the top mount diameter of 158 mm for Chrysler Sebring and Dodge Stratus models.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chrysler Sebring and Dodge Stratus
• Resolves inaccurate fuel level readings due to faulty sending units
• Addresses fuel delivery interruptions caused by clogged strainers or worn pump components
• Eliminates electrical connection problems with proper negative ground and connector design
• Prevents fuel leaks with included gasket or seal during installation

Installation Notes and Tips

• Ensure compatibility with Chrysler Sebring and Dodge Stratus before installation
• Handle the fuel sending unit carefully to avoid damage to the float mechanism
• Verify the wiring harness length and connector type match the vehicle’s existing setup
• Use the included gasket or seal to prevent fuel leaks at the mounting surface
• Check the external strainer for debris and replace if necessary during installation

Quality Assurance and Warranty

The Airtex E7167M fuel pump module assembly is manufactured to meet OEM specifications for Chrysler and Dodge vehicles. It undergoes rigorous testing to ensure reliable fuel delivery and accurate fuel level readings. While specific warranty details may vary, Airtex products typically include a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
