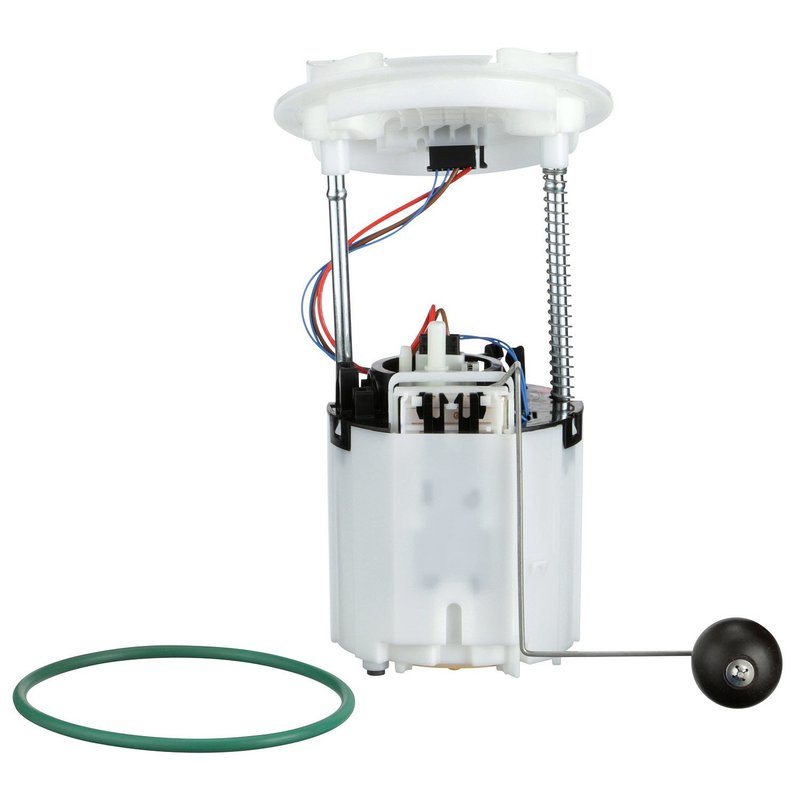

Airtex E7192M Fuel Pump Module Assembly - Left

Reliable Fuel Pump Module Assembly for Chrysler and Dodge Vehicles

The Airtex E7192M Fuel Pump Module Assembly is designed specifically for select Chrysler and Dodge models, including the 300, Challenger, Charger, and Magnum. This in-tank electrical fuel pump module ensures consistent fuel delivery and integrates a fuel sending unit for accurate fuel level readings.

• Fuel sending unit included for precise fuel measurement
• 300 mm wiring harness length with 20 gauge wire
• White oval connector with 5 blade terminals (male)
• Plastic housing with a 152 mm top mount diameter
• Includes strainer and gasket for proper installation
• Electrical pump operating at 12 volts with a minimum flow rate of 43
• Quick connect outlet port and single outlet quantity
• Designed for specific fitment on Chrysler 300, Dodge Challenger, Charger, and Magnum

Detailed Product Description and Specifications

The Airtex E7192M fuel pump module assembly is engineered as an internal, in-tank electrical pump designed to meet the fuel delivery requirements of Chrysler and Dodge vehicles such as the 300, Challenger, Charger, and Magnum. The module features a plastic housing with a 152 mm top mount diameter, ensuring a secure fit within the fuel tank. It includes a fuel sending unit for accurate fuel level monitoring and a strainer to protect the pump from debris. The wiring harness measures 300 mm in length and uses 20 gauge wire with four wires total, terminating in a white oval-shaped connector with five blade terminals (male). The pump operates at 12 volts and provides a minimum flow rate of 43, with a minimum pressure rating of 63 psi. The outlet is a quick connect port designed for a single outlet line. While mounting hardware and wiring harness are not included, the module comes with a gasket to ensure a proper seal during installation.

Compatible Vehicles and Common Applications

This fuel pump module assembly is compatible with specific Chrysler and Dodge models, including:

• Chrysler 300
• Dodge Challenger
• Dodge Charger
• Dodge Magnum

It is commonly used to address issues such as:

• Fuel delivery failure causing engine stalling or no-start conditions
• Inaccurate fuel gauge readings due to faulty sending units
• Fuel pump noise or inconsistent fuel pressure
• Fuel system contamination affecting pump performance
• Electrical pump failure within the fuel tank

Installation Notes and Tips

Installation of the Airtex E7192M fuel pump module assembly requires removal of the fuel tank or access through the service panel, depending on vehicle design. Ensure the gasket is properly seated to prevent fuel leaks. Since mounting hardware and wiring harness are not included, reuse existing components or source compatible parts. Verify connector compatibility with the vehicle’s wiring harness before installation. Follow all safety precautions when working with fuel system components, including depressurizing the fuel system and disconnecting the battery.

Quality Assurance and Warranty Information

Airtex fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The E7192M part number undergoes rigorous quality control to ensure reliable operation within the specified Chrysler and Dodge models. This product includes a gasket and strainer to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
