Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

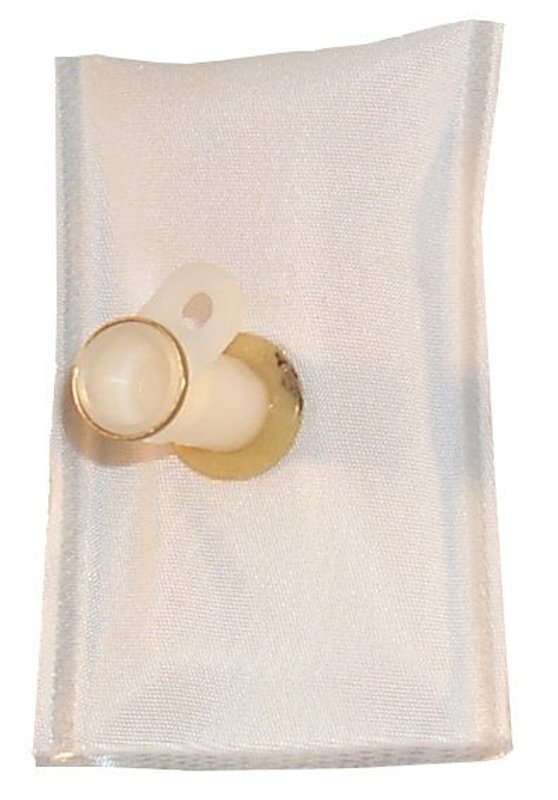

Airtex FS126 Fuel Pump Strainer
| Brand | Airtex FS126 |
|---|---|
| Length | 180.3 |
| Color | White |
| Attachment Type | Push on |
| Width | 53.3 |
| Strainer Material | Media |
| Fitting Inside Diameter | 11.0 |
| Gasket Included | N |
| Internal Or External | Internal |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Fits | Suzuki · 3 vehicles |
Gradient density media. Delivers reliable filtration as the first line of defense against contaminants.
Push-on attachment. Simplifies installation with a secure, straightforward connection.
Specific fit. Made for a precise replacement application.
Cross-references Autobest F227S, Spectra Premium STR36 and 565-4030 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Strainer for Suzuki Sidekick
Airtex FS126 is an internal fuel pump strainer built for specific applications, including 1989-1991 Suzuki Sidekick models with a 2 inch diameter pump. It serves as the first filtration stage in the fuel system, helping keep contaminants away from the fuel pump and downstream fuel filter.
- Specific-fit fuel pump strainer for targeted applications
- Internal, push-on attachment style
- Gradient density media for staged filtration
- White strainer construction
- Fits 1989-1991 Suzuki Sidekick, with 2 inch diameter pump
Filtration and Fitment Details
Airtex FS126 is engineered as a fuel pump strainer for the fuel tank side of the system, where it helps capture debris before it reaches the pump. The 180.3 mm length and 53.3 mm width reflect a specific application design, while the 11.0 mm inside diameter fitting and push-on attachment support proper installation on the intended pump setup. This part cross-references Spectra Premium STR36 for the same application.
Common Issues Addressed
- Fuel pump inlet contamination from tank debris
- Restricted fuel flow caused by a clogged strainer
- Premature wear on the fuel pump from abrasive particles
- Reduced fuel filter life due to upstream contamination
- Fuel delivery problems on 1989-1991 Suzuki Sidekick models with a 2 inch diameter pump
Installation Notes
Install FS126 on the fuel pump inlet using the correct push-on connection for the specified pump diameter. Confirm the application matches the vehicle and pump configuration before installation, since this is a specific-fit part. A new strainer is required to validate the warranty.
Quality Assurance
Airtex positions this strainer as a replacement filtration component for fuel system protection, with gradient density media intended to provide reliable debris capture at the pump inlet. For 1989-1991 Suzuki Sidekick service, FS126 supports the correct fuel system setup when matched to the listed pump specification.
| Year | Make | Model | # Doors | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1991 | Suzuki | Sidekick | 2 Door | 1.6L | L4 | N/A | with 2 Inch Diameter Pump |
| 1990 | Suzuki | Sidekick | 2 Door | 1.6L | L4 | N/A | with 2 Inch Diameter Pump |
| 1989 | Suzuki | Sidekick | 2 Door | 1.6L | L4 | N/A | with 2 Inch Diameter Pump |
