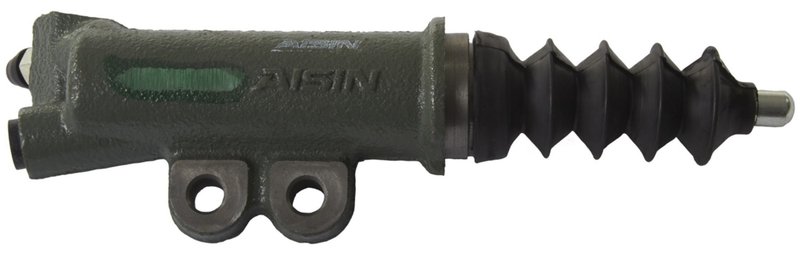

Aisin CRT-150 Clutch Slave Cylinder

Aisin CRT-150 Clutch Slave Cylinder for Tacoma

The Aisin CRT-150 is a manual transmission clutch slave cylinder built for 2016-2019 Toyota Tacoma applications. It uses a cast iron body, bolt-on mounting, and a supplied push rod to support consistent clutch hydraulic operation in the Tacoma’s manual transmission system.

Key Features

• Fits 2016-2019 Toyota Tacoma manual transmission applications
• Cast iron construction for a standard replacement fit
• Bolt-on mounting with 2 mounting holes
• 0.86 in bore diameter (21.844 mm)
• 0.39 in inlet diameter
• Rubber seal type with push rod included
• Not pre-filled with fluid

Product Details

The Aisin CRT-150 clutch slave cylinder is an OE-manufactured hydraulic cylinder designed for manual transmission service. Its anodized and Kanigen-plated cylinder construction is paired with high-heat ethylene propylene seals to support hydraulic performance in demanding clutch operation. For Toyota Tacoma owners looking for a direct replacement clutch slave cylinder, the CRT-150 provides the core dimensions and mounting style needed for a proper service replacement.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems It Can Help Address

• Soft or inconsistent clutch pedal feel
• Hydraulic fluid leakage at the slave cylinder
• Difficulty disengaging the clutch
• Reduced clutch release performance
• Wear-related failure in the hydraulic release system

Installation Notes and Tips

Fits 2016-2019 Toyota Tacoma, N/A. Confirm bore diameter, inlet size, and mounting hole count before installation. Because this unit is not pre-filled, the hydraulic system must be bled after installation to remove air and restore pedal feel. Verify the push rod engagement and inspect the clutch hydraulic line and related components during service.

Quality Assurance

Aisin manufactures this clutch slave cylinder as an OE-style hydraulic replacement using plated cylinder surfaces and heat-resistant seals. The CRT-150 is built to standard replacement specifications for manual transmission service in Toyota Tacoma applications.
