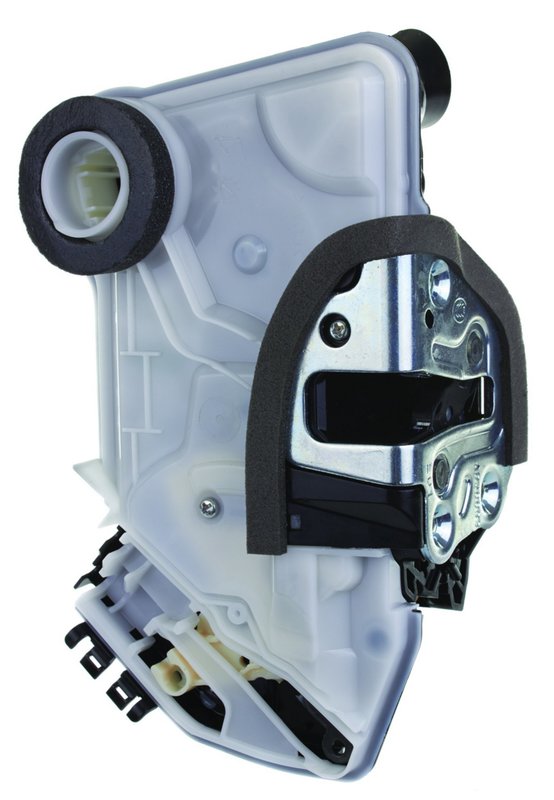

Aisin DLT-117 Door Lock Actuator Motor - Front Right

Aisin DLT-117 Door Lock Actuator Motor

The Aisin DLT-117 is an OE-manufactured door lock actuator motor for the front right door. Built with an aluminum housing, rectangular male connector, blade terminals, and urethane foam seals, it is a specific-fit replacement for select Lexus and Toyota applications.

Use this Aisin door lock actuator motor when you need a direct replacement for front right door locking function on vehicles such as Lexus IS350, RX350, and Toyota Camry applications. The DLT-117 is engineered to match the original equipment layout for a clean electrical and mechanical connection.

Key Features

• OE-manufactured door lock actuator motor
• Specific fit for select front right door applications
• Aluminum construction for the actuator housing
• Rectangular connector with male connector shape and female terminals
• Blade terminal type for factory-style electrical connection
• Includes urethane foam seals for the assembly interface
• Cross-reference part numbers include 69030-02380 and 69030-53120

Detailed Description

Aisin DLT-117 is a replacement door lock actuator motor designed for the front right door on a wide range of Lexus and Toyota vehicles. It is a specific-fit part, not a universal unit, and is built to align with OE mounting and connector requirements. This makes it a practical choice for restoring proper door lock operation on models including Lexus IS300, NX300, RX450h, and Toyota C-HR, Camry, Highlander, and Sienna. The DLT-117 part number is also useful when cross-checking catalog listings for the correct front right door lock assembly application.

What It Helps Fix

• Front right door lock that does not respond to the key fob or switch
• Intermittent locking or unlocking on the passenger front door
• Slow or weak actuator movement in the door lock assembly
• Electrical connection issues at the door lock actuator interface
• Replacement needs after actuator wear in Lexus and Toyota door assemblies

Installation Notes and Tips

Verify the vehicle year, make, model, and front right position before ordering. This part is listed for applications that include the door lock assembly, so compare the original connector shape, terminal style, and mounting layout to the existing unit. For best results, confirm fitment against the VIN and the original part number before installation. The DLT-117 is a direct replacement for specific Lexus and Toyota front right door applications, including Lexus IS350 and Toyota Corolla listings where equipped.

Quality Assurance

Aisin manufactures OE-level door lock actuators for factory-style fit and function. The DLT-117 is FMVSS approved and built with compact packaging and sealing materials intended to match original equipment requirements.
