Anchor 300497 Engine Mount Kit

Engine Mount Kit for GM V6 Applications

Anchor 300497 is an engine mount kit built for specific Chevrolet, Cadillac, and Buick applications that need controlled engine support and vibration damping. It is a direct-fit style replacement for vehicles such as the Chevrolet Impala, Cadillac XTS, and Buick LaCrosse, with OE-style construction focused on consistent fit and driveline isolation.

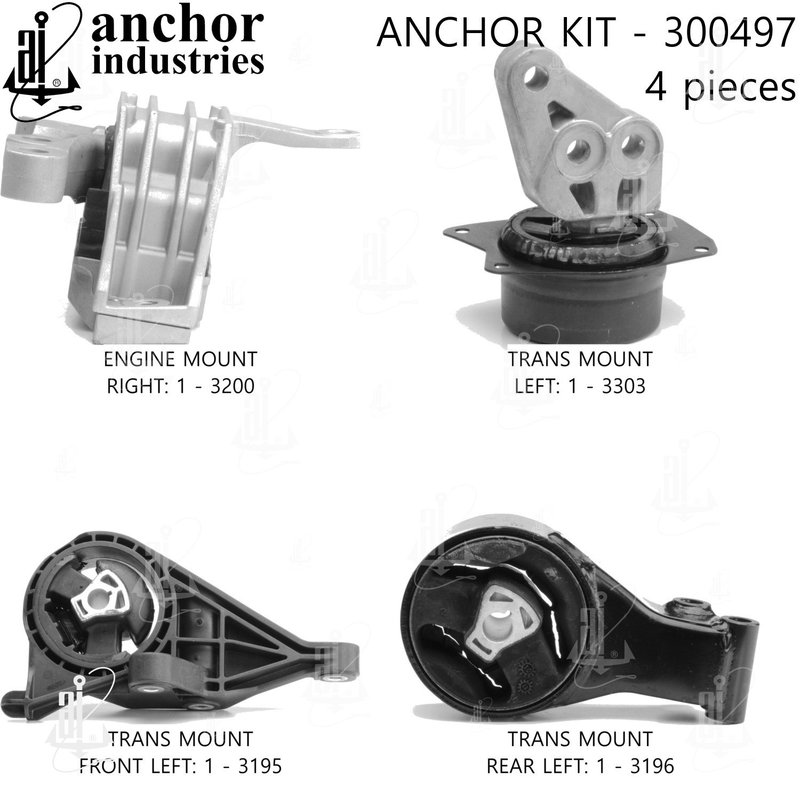

• Kit configuration: 1-3200 engine mount right, 1-3303 trans mount left, 1-3195 trans mount front left, and 1-3196 trans mount rear left
• Engine mount kit for GM front-wheel-drive platforms with matched mount locations
• Rubber components use natural rubber and styrene butadiene rubber for abrasion resistance and aging stability
• CAD/CAM-engineered to OEM standards for consistent dimensions and quality
• Chemlock bonding agent helps maintain a strong rubber-to-metal bond
• Fasteners, where included by application, use hardened steel with heat-treated Grade 5 bolts
• Hydraulic mount design is used where OE application calls for added vibration and torque control

Detailed Fitment and Function

Anchor 300497 is used to restore proper engine and transmission support in vehicles that rely on multiple mounts to control movement under load. It fits 2014-2020 Chevrolet Impala, 2013-2019 Cadillac XTS, 2010-2016 Buick LaCrosse, and 2010 Buick Allure. This part number, 300497, is built around the listed mount positions so the engine and transmission assembly stays aligned and vibration is reduced during idle, acceleration, and shifting.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Correct

• Excess engine vibration felt in the cabin
• Clunking or movement during acceleration and gear changes
• Worn rubber mounts that no longer isolate drivetrain motion
• Misalignment caused by deteriorated engine or transmission mounts
• Noisy drivetrain operation from failed mount support points

Installation Notes and Tips

Verify the vehicle’s mount layout against the listed positions before installation. Because this kit includes multiple mount locations, inspect the surrounding brackets, bolts, and contact points for wear or damage before reassembly. Confirm fitment by year, make, and model, especially on Chevrolet Impala, Cadillac XTS, and Buick LaCrosse applications. Part number 300497 should be matched to the exact mount configuration shown in the vehicle notes.

Quality Assurance

Anchor manufactures these mounts to OEM standards using controlled rubber hardness specifications and bonded rubber-to-metal construction for application-specific performance. The design focus is consistent fit, vibration control, and long service life in the listed GM applications.
