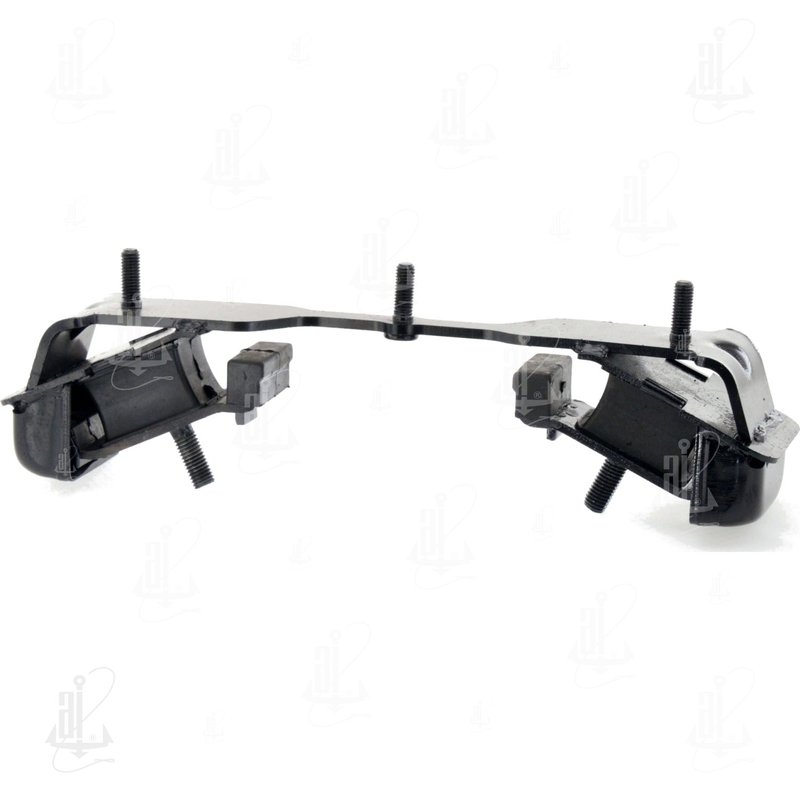

Anchor 3577 Automatic Transmission Mount - Rear

Rear Automatic Transmission Mount for Ram HD

Anchor 3577 is a rear automatic transmission mount built for 2019-2025 Ram 2500 and Ram 3500 applications. It supports the transmission, helps isolate drivetrain vibration, and is engineered to OE standards for consistent fit and function.

Key Features

• Fits 2019-2025 Ram 2500, rear
• Fits 2019-2025 Ram 3500, rear
• Designed to support the transmission and reduce vibration transfer
• Built with natural and Styrene Butadiene rubber for abrasion resistance and aging stability
• CAD/CAM-engineered to match OEM requirements
• Uses Chemlock bonding for a durable rubber-to-metal bond
• Rubber hardness is matched to vehicle application needs

Detailed Description

Anchor 3577 transmission mount is made for rear mounting positions on Ram 2500 and Ram 3500 trucks from 2019 through 2025. This part number 3577 is built to help keep the transmission properly supported while reducing vibration and noise transmitted into the chassis. It is a direct-fit style replacement for trucks that need a rear automatic transmission mount with OE-level material selection and construction.

This part cross-references 68349271AB and C20112 for the same application.

Common Problems It Can Help Solve

• Excess drivetrain vibration felt through the cab
• Clunking or shifting movement from a worn rear transmission mount
• Transmission support issues caused by deteriorated rubber
• Noise transfer from the drivetrain under load

Installation Notes and Tips

Verify rear mount location and match the vehicle by year, make, and model before installation. Inspect surrounding transmission support components, brackets, and fasteners for wear or damage during replacement. Anchor 3577 should be installed on the confirmed Ram 2500 or Ram 3500 rear application listed above.

Quality Assurance

Anchor designs this mount to OEM standards using CAD/CAM engineering and application-specific rubber hardness. The construction uses natural and Styrene Butadiene rubber, hardened steel fasteners where included, and Chemlock bonding to promote a strong rubber-to-metal connection.
