Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

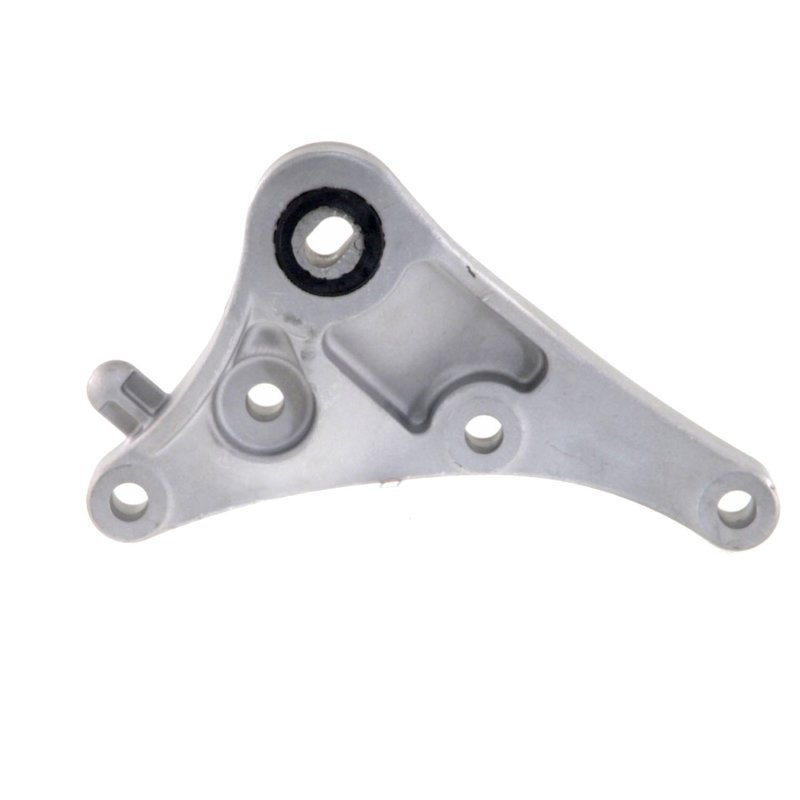

Anchor 3611 Engine Mount - Rear Lower
| Brand | Anchor 3611 |
|---|---|
| Position | Rear Lower |
| Bushing Color | Black |
| Stud Quantity | 0 |
| Sheen Level | Matte |
| Construction | Cast |
| Finish | Uncoated |
| Mount Material | Steel |
| Type | Solid |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Mounting Hole Quantity | 5 |
| Housing Color | Silver |
| Bushing Material | Rubber |
| Bracket Material | Steel |
| Mounting Hole Diameter | 12.50 |
| Heat Shield Included | No |
| Mounting Bracket Included | No |
| Fits | Buick and Chevrolet · 20 vehicles |
Standard replacement. Built to OEM standards for a precise, consistent fit.
Solid mount. Steel and rubber construction helps support the engine and reduce vibration.
Rubber-to-metal bond. Chemlock bonding improves durability and long-term performance.
Cross-references Marmon Ride Control A5679, 95142834 and B5679 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Engine Mount for Rear Lower Applications
Anchor 3611 is a rear lower engine mount built for select Buick Encore and Chevrolet Trax models. It supports the engine assembly and helps reduce vibration transfer into the chassis for smoother operation.
Key Features
- Direct-fit engine mount for rear lower placement
- Steel mount and bracket construction with a cast housing
- Rubber bushing for vibration isolation
- Black bushing color with silver housing finish
- Standard replacement design for OE-style service
- Five mounting holes with 12.50 mm mounting hole diameter
- No mounting hardware, heat shield, or mounting bracket included
Detailed Description
Anchor 3611 is engineered to meet OEM standards using CAD/CAM-based design methods for consistent fit and build quality. The rubber element uses natural and styrene butadiene rubber for abrasion resistance and aging stability, while Chemlock bonding helps maintain a secure rubber-to-metal connection. This part number is a solid, steel-bodied rear lower engine mount for 2013-2022 Buick Encore and 2013-2022 Chevrolet Trax applications. If you are replacing a worn Anchor 3611 mount on a Buick Encore or Chevrolet Trax, this OE-style replacement is built for the original mounting location and service requirements.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Excess engine movement during acceleration and shifting
- Cabin vibration transmitted from a worn rear lower mount
- Clunking or knocking from deteriorated rubber isolation
- Misalignment caused by a fatigued engine support point
- Noise from a mount with separated rubber-to-metal bonding
Installation Notes and Tips
Verify the rear lower mounting position before installation and compare the original mount to Anchor 3611 for hole count, bracket layout, and housing shape. Inspect adjacent mounts and fasteners for wear or damage, and replace any compromised hardware separately if needed. Proper engine support is recommended during removal and installation to prevent strain on surrounding components.
Quality Assurance
Anchor designs this engine mount to OEM standards and uses hardened steel Grade 5 fasteners where applicable, along with application-specific rubber hardness for consistent performance. The construction and bonding process are intended to support long-term durability in normal service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2022 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| 2021 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2021 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| 2020 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2020 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| 2019 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2019 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| 2018 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2018 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| 2017 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2017 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| 2016 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2016 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| 2015 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2015 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| 2014 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2014 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| 2013 | Buick | Encore | 1.4L | L4 | Rear Lower | — |
| 2013 | Chevrolet | Trax | 1.4L | L4 | Rear Lower | — |
| No rows match your filter. | ||||||
