Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

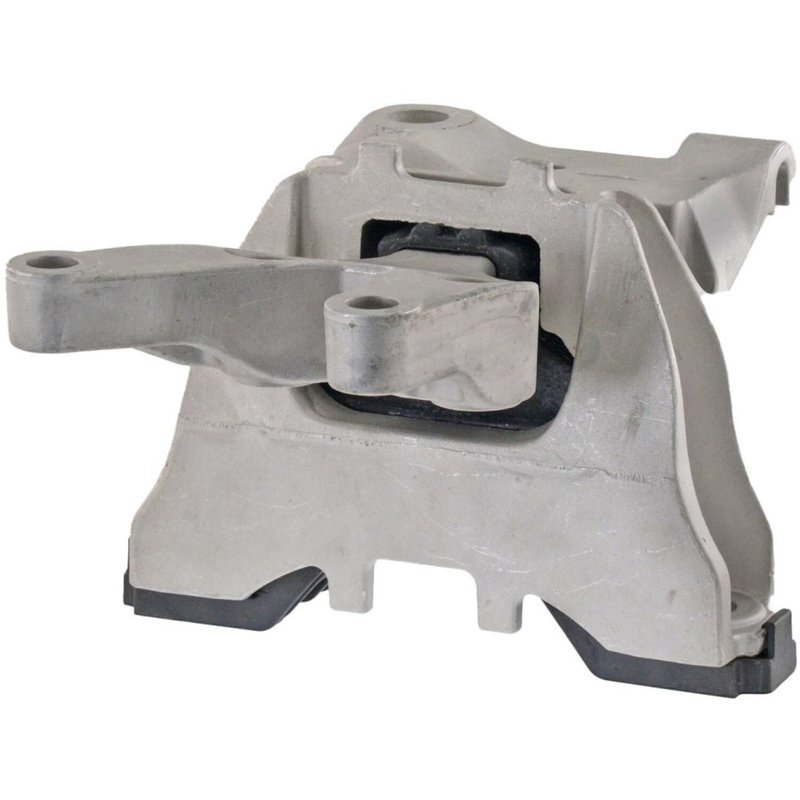

Anchor 3641 Engine Mount - Right
| Brand | Anchor 3641 |
|---|---|
| Position | Right |
| Bushing Color | Black |
| Stud Quantity | 0 |
| Sheen Level | Matte |
| Construction | Cast |
| Finish | Uncoated |
| Mount Material | Steel |
| Type | Hydraulic |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Mounting Hole Quantity | 8 |
| Housing Color | Silver |
| Bushing Material | Rubber |
| Bracket Material | Steel |
| Mounting Hole Diameter | 14.50 |
| Heat Shield Included | No |
| Mounting Bracket Included | No |
| Fits | Dodge · 4 vehicles |
Standard replacement. Engine mount built to OEM standards for a direct-fit replacement.
Hydraulic design. Uses fluid damping to reduce noise and vibration under load.
Steel and rubber construction. Cast housing with rubber bushings for durable support.
Cross-references Marmon Ride Control A20030, 68081486AH and C20030 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Engine Mount for Dodge Dart Right Side
Anchor 3641 is a right engine mount for 2013-2016 Dodge Dart applications. It is built as a hydraulic, standard replacement mount with a steel housing and rubber bushing to help control engine movement and reduce vibration.
Key Features
- Fits 2013-2016 Dodge Dart, right side
- Hydraulic mount design for vibration and torque control
- Steel mount and bracket materials with cast construction
- Rubber bushing material with black finish
- OEM-standard engineering using CAD/CAM processes
- Natural and Styrene Butadiene rubber for abrasion resistance and aging stability
- Chemlock bonding agent for rubber-to-metal adhesion
- Standard replacement part number 3641
Detailed Description
Anchor 3641 engine mount is engineered for the right side of the Dodge Dart and is designed to support the engine while isolating vibration from the chassis. The hydraulic design is suited for higher vibration and torque loads, using internal fluid to reduce excess noise and harshness. Anchor builds this mount to OEM standards and uses controlled rubber hardness, steel construction, and bonded rubber-to-metal interfaces for consistent fit and performance. If you are replacing a worn right engine mount on a 2013-2016 Dodge Dart, part number 3641 provides a direct-fit standard replacement solution.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Problems This Part Can Address
- Excess engine vibration felt in the cabin
- Clunking or shifting during acceleration and deceleration
- Engine movement caused by a deteriorated mount
- Noise from a collapsed or leaking hydraulic mount
- Misalignment stress on nearby drivetrain components
Installation Notes and Tips
Verify right-side placement before installation and compare the new mount to the original unit for bracket shape, hole count, and mounting dimensions. Inspect adjacent mounts and drivetrain components for wear, since a failed mount can place added load on other supports. Professional installation is recommended to ensure proper engine support during replacement.
Quality Assurance
Anchor manufactures this mount to OEM standards using CAD/CAM engineering, controlled rubber specifications, and hardened steel hardware where applicable. The hydraulic construction and bonded rubber-to-metal design are intended to deliver consistent vibration control for the 2013-2016 Dodge Dart right engine mount application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Dodge | Dart | 1.4L | L4 | Right | — |
| 2015 | Dodge | Dart | 1.4L | L4 | Right | — |
| 2014 | Dodge | Dart | 1.4L | L4 | Right | — |
| 2013 | Dodge | Dart | 1.4L | L4 | Right | — |
