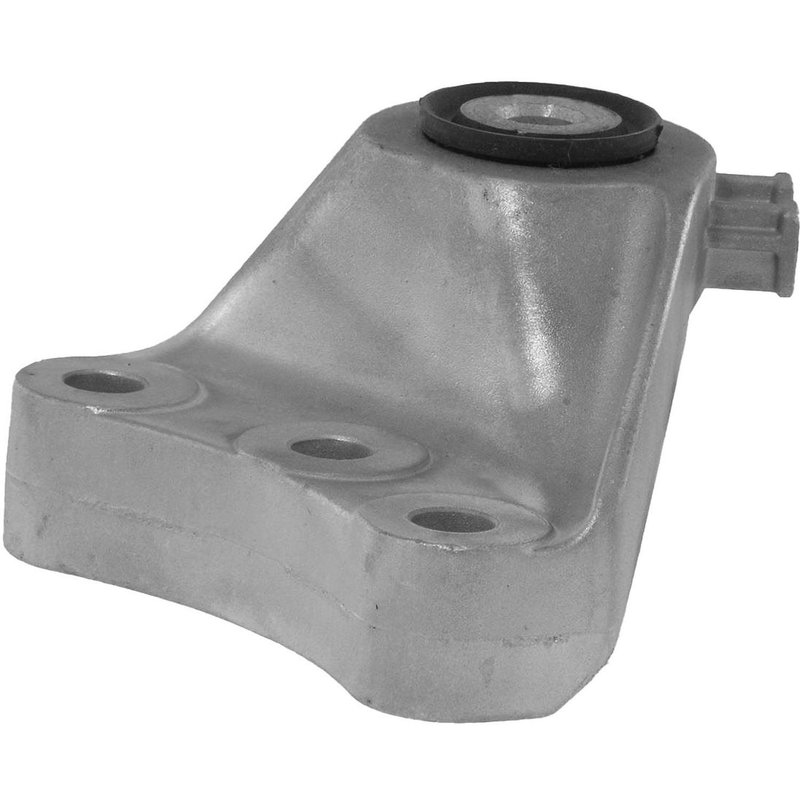

Anchor 3693 Engine Mount - Rear Lower

Engine Mount for Dodge Dart Rear Lower

Anchor 3693 is a rear lower engine mount for the 2013-2016 Dodge Dart. It secures the engine in place while helping reduce vibration transfer into the chassis, making it a direct-fit replacement for worn or damaged OE-style mounting points.

Key Features

• Fits 2013-2016 Dodge Dart, rear lower
• Engine mount construction uses steel with a rubber bushing for vibration isolation
• Standard replacement design with a cast, uncoated finish
• Four mounting holes and a 12.7 mm mounting hole diameter
• Black rubber bushing with silver housing color
• No mounting hardware, bracket, heat shield, or stud quantity specified
• Anchor 3693 cross-references 68164774AA for the same application

Detailed Description

This Anchor engine mount is built for the rear lower position on the Dodge Dart and is engineered to support the engine while controlling movement under load. The steel and rubber construction is selected to isolate vibration, and the standard replacement design follows OEM-style application requirements for consistent fit and function. Anchor 3693 is a practical choice when replacing a deteriorated mount that can allow excess engine movement, noise, or harshness.

Manufacturing details include CAD/CAM-based engineering, natural and Styrene Butadiene rubber for abrasion resistance and aging stability, and Chemlock bonding for a stronger rubber-to-metal connection. The rubber hardness is application-specific, and the mount is built to OE standards for the 2013-2016 Dodge Dart rear lower location.

What This Engine Mount Helps Address

• Excess engine vibration felt in the cabin
• Clunking or shifting caused by a worn rear lower mount
• Engine movement under acceleration or deceleration
• Noise from a cracked or separated rubber isolator
• Loss of support at the rear lower mounting point

Installation Notes and Tips

Verify the rear lower position and compare the original mount to Anchor 3693 before installation. Inspect surrounding brackets and mounting surfaces for wear, corrosion, or damage that could affect alignment. Because mounting hardware is not listed as included, reuse or replace fasteners as needed based on the vehicle service procedure.

Quality Assurance

Anchor designs this mount to OEM standards using controlled manufacturing processes and application-specific rubber hardness. The steel and rubber materials, bonded construction, and OE-style engineering support consistent replacement quality for the Dodge Dart platform.
