Anchor 9516 Manual Transmission Mount - Left
OE Quality 60-Day Returns
Anchor

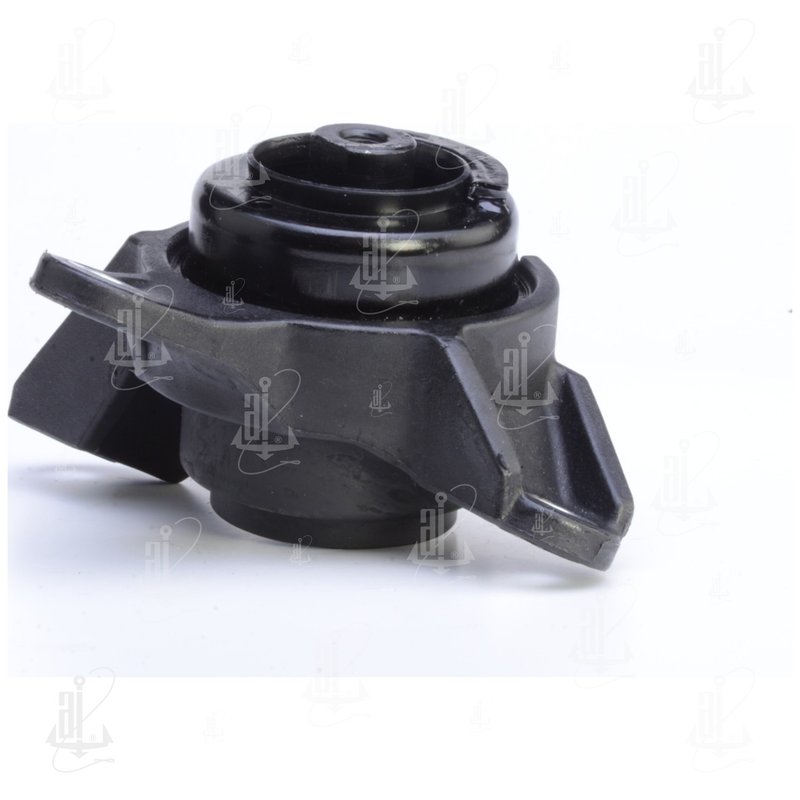

Anchor 9516 Manual Transmission Mount - Left

Brand Anchor 9516
Position Left
NOTE HYDRAULIC
NOTE REUSE BRACKET
Fits Acura and Honda · 23 vehicles

OE-standard design. Engineered for direct transmission support and vibration damping.

Natural and SBR rubber. Built for long life and dependable performance.

Heat-treated bolts. Grade 5 steel fasteners help secure a strong mount assembly.

Cross-references CSF 3789, Marmon Ride Control A4561 and 3450HR for the same application. See all 9.

$63.35Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $63.35
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Manual Transmission Mount options

Manual Transmission Mount for Honda and Acura

Anchor 9516 is a left-side manual transmission mount built for select Honda and Acura applications. It supports the transmission, helps reduce vibration, and follows OE-level design targets for fit and function. This hydraulic mount is listed for vehicles such as the Honda Accord, Honda Crosstour, Acura TSX, and Acura TL.

Key Features

  • Hydraulic manual transmission mount for the left side
  • Engineered to OE standards for direct replacement fitment
  • Natural and SBR rubber are used for durability and performance
  • Heat-treated grade 5 steel fasteners
  • Special bonding agent helps secure the rubber-to-metal bond
  • Rubber compound is mixed to a specific Durometer hardness
  • Reuse bracket note applies to listed applications

Detailed Description

Anchor 9516 is a transmission mount designed to isolate drivetrain movement while helping control vibration transfer into the cabin. The hydraulic design is listed for left, upper mounting locations on select Honda and Acura models, including 2008-2012 Honda Accord, 2012 Honda Crosstour, 2010-2011 Honda Accord Crosstour, 2010-2014 Acura TSX, and 2010-2011 Acura TL. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. If you are replacing a worn Honda Accord transmission mount or an Acura TSX left upper mount, Anchor 9516 provides an OE-style service part reference for those applications.

What It Helps Fix

  • Excess drivetrain vibration felt in the cabin
  • Clunking or shifting movement during acceleration and deceleration
  • Mount separation caused by aged rubber or fluid loss in hydraulic mounts
  • Transmission movement from a worn left upper mount
  • Noise transfer from a deteriorated Honda Accord or Acura TSX transmission mount

Installation Notes

  • Verify the vehicle’s transmission type and left-side upper mount location before ordering.
  • Reuse bracket note is listed for the covered applications.
  • Hydraulic mount design requires correct orientation during installation.
  • Inspect adjacent mounts and brackets for wear before completing the repair.

Quality Assurance

Anchor designs this mount to OE standards and uses natural and SBR rubber, heat-treated grade 5 bolts, and a bonded rubber-to-metal construction for consistent service performance. Part number 9516 is backed by a 12-month warranty.

Related reading

This part fits 23 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeLitersCylindersPositionNotes
2014AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2014AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2013AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2013AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2012AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2012AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2012HondaAccordSedan3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2012HondaCrosstour—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2012HondaCrosstour—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2011AcuraTL—3.7LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2011AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2011AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2011HondaAccordSedan3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2011HondaAccord Crosstour—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2011HondaAccord Crosstour—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2010AcuraTL—3.7LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2010AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2010AcuraTSX—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2010HondaAccordSedan3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2010HondaAccord Crosstour—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2010HondaAccord Crosstour—3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; MT;
2009HondaAccordSedan3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
2008HondaAccordSedan3.5LV6LeftUPPER; ; HYDRAULIC; REUSE BRACKET; ; AT;
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
CSF — 3789Marmon Ride Control — A45613450HR7398H950870TA1A0150870TK5A516095166201796EM9516
