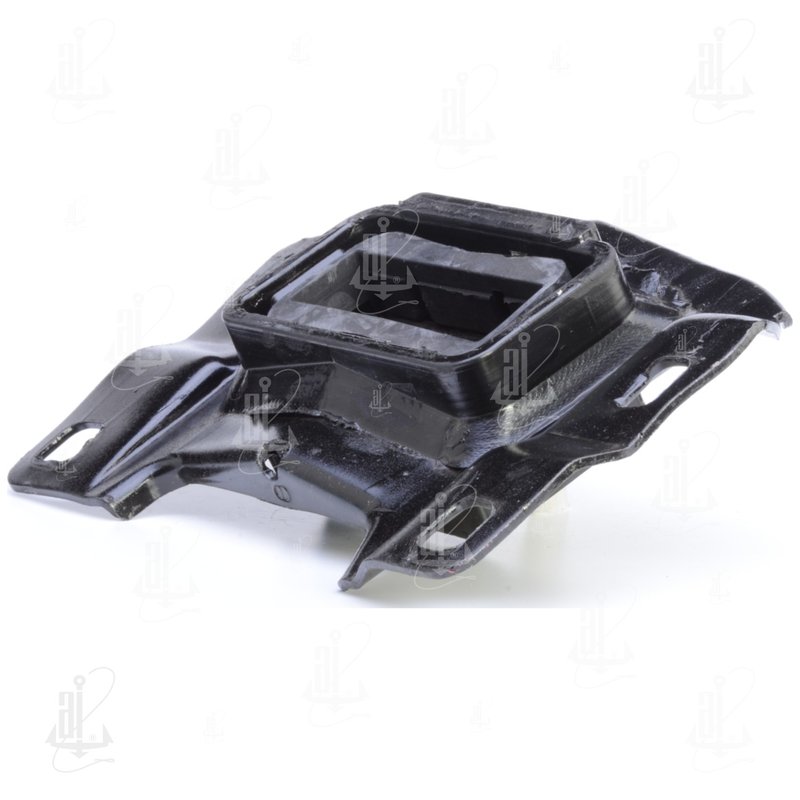

Anchor 9540 Manual Transmission Mount - Left
OE Quality 60-Day Returns
Anchor

Anchor 9540 Manual Transmission Mount - Left

Brand Anchor 9540
Position Left
NOTE NOT WEIGHTED
Fits Mazda · 26 vehicles

OE-standard design. Supports the transmission and dampens vibration.

Rubber and steel construction. Natural and SBR rubber with heat-treated grade 5 bolts.

Bonded rubber-to-metal. Special bonding agent helps create a durable connection.

Cross-references AMS Automotive 4024, Carlson 7837 and Pioneer Automotive Industries 624422 for the same application. See all 13.

$63.54Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $63.54
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Manual Transmission Mount options

Manual Transmission Mount for Mazda 3 and Mazda 5

Anchor 9540 is a left manual transmission mount engineered to support the transmission and reduce vibration transfer. It is built to OE standards for direct replacement use on select Mazda 3, Mazda 3 Sport, and Mazda 5 applications.

  • Left manual transmission mount for select Mazda applications
  • Engineered to OE standards for fit and function
  • Natural and SBR rubber are used for durability and performance
  • Rubber-to-metal bonding uses a specialized adhesive process
  • Rubber hardness is formulated to specific Durometer requirements
  • Heat-treated grade 5 steel fasteners are used in the mount construction
  • Anchor 9540 cross-references AMS Automotive 4024 and Carlson 7837 for the same application

Detailed Application Coverage

Compatible with 2012-2017 Mazda 5, left; 2010-2013 Mazda 3, left; 2010-2013 Mazda 3 Sport, left. Anchor 9540 is a practical OE-style replacement for drivers servicing a Mazda 3 manual transmission mount or replacing a worn left-side transmission mount on a Mazda 5. The part number 9540 is also commonly searched as Anchor 9540 for fitment-based replacement lookup.

Common Problems This Part Addresses

  • Excess drivetrain vibration felt through the cabin
  • Transmission movement caused by a worn mount
  • Clunking or shifting noise during acceleration and deceleration
  • Misalignment related to deteriorated rubber isolation
  • Reduced support at the left transmission mounting point

Installation Notes and Tips

Verify the vehicle’s transmission type and left-side mounting location before installation. Compare the original mount shape, bolt pattern, and bracket interface to confirm the correct replacement for your Mazda 3, Mazda 3 Sport, or Mazda 5. Because fitment varies by model and transmission configuration, use the vehicle identification details to match the application exactly.

Quality Assurance

Anchor designs this mount to OE standards and uses natural and SBR rubber, bonded rubber-to-metal construction, and heat-treated grade 5 steel fasteners for consistent performance. Anchor 9540 includes a 12-month warranty.

Related reading

This part fits 26 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2013Mazda32.0LL4LeftNOT WEIGHTED; ; AT;
2013Mazda32.0LL4LeftNOT WEIGHTED; ; MT;
2013Mazda32.5LL4LeftNOT WEIGHTED; ; AT;
2013Mazda32.3LL4LeftNOT WEIGHTED; ; MT;
2013Mazda3 Sport2.0LL4LeftNOT WEIGHTED; ; AT;
2013Mazda3 Sport2.0LL4LeftNOT WEIGHTED; ; MT;
2013Mazda3 Sport2.5LL4LeftNOT WEIGHTED; ; AT;
2012Mazda32.0LL4LeftNOT WEIGHTED; ; AT;
2012Mazda32.0LL4LeftNOT WEIGHTED; ; MT;
2012Mazda32.5LL4LeftNOT WEIGHTED; ; AT;
2012Mazda32.3LL4LeftNOT WEIGHTED; ; MT;
2012Mazda3 Sport2.0LL4LeftNOT WEIGHTED; ; AT;
2012Mazda3 Sport2.0LL4LeftNOT WEIGHTED; ; MT;
2012Mazda3 Sport2.5LL4LeftNOT WEIGHTED; ; AT;
2011Mazda32.0LL4LeftNOT WEIGHTED; ; AT;
2011Mazda32.0LL4LeftNOT WEIGHTED; ; MT;
2011Mazda32.5LL4LeftNOT WEIGHTED; ; AT;
2011Mazda32.3LL4LeftNOT WEIGHTED; ; MT;
2011Mazda3 Sport2.0LL4LeftNOT WEIGHTED; ; AT;
2011Mazda3 Sport2.0LL4LeftNOT WEIGHTED; ; MT;
2011Mazda3 Sport2.5LL4LeftNOT WEIGHTED; ; AT;
2010Mazda32.5LL4LeftNOT WEIGHTED; ; AT;
2010Mazda32.3LL4LeftNOT WEIGHTED; ; MT;
2010Mazda32.0LL4LeftNOT WEIGHTED; ; AT;
2010Mazda3 Sport2.5LL4LeftNOT WEIGHTED; ; AT;
2010Mazda3 Sport2.0LL4LeftNOT WEIGHTED; ; AT;
Directly replaces or cross-references 13 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
AMS Automotive — 4024Carlson — 7837Pioneer Automotive Industries — 624422117-5940-64291MX609540104231562018086202810A9540B9540BFD139070AEM5864
