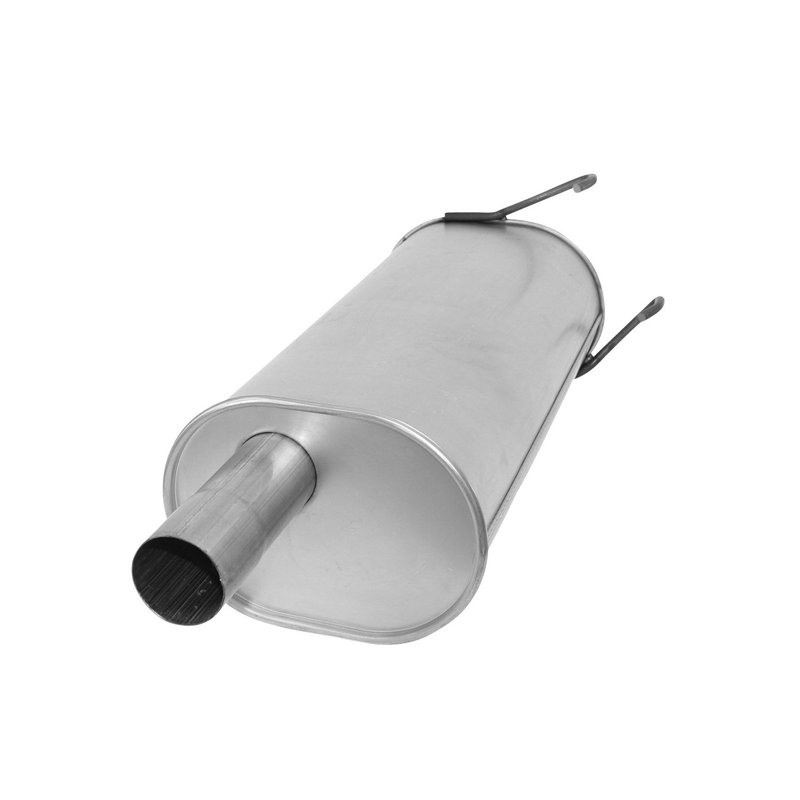

AP Exhaust 2567 Exhaust Muffler

AP Exhaust Challenge LTW Muffler for Ram 1500

The AP Exhaust Challenge LTW 2567 is a baffled exhaust muffler built for Ram 1500 applications with factory dual exhaust layouts. It uses an aluminized steel body and an oval case to support OE-comparable sound levels while maintaining a direct-fit style for the listed vehicles.

Key Features

• AP Exhaust Challenge LTW series muffler
• Part number 2567
• Aluminized steel body construction
• Oval muffler shape with baffled internal design
• OE comparable sound level
• Single 3-inch inlet, left upper location
• Dual 2.25-inch outlets, left lower and right lower locations
• Body dimensions: 8.5 in. height, 11.5 in. width, 26 in. length
• Overall length: 37.5 in.

Challenge LTW Series Details

The Challenge LTW line from AP Exhaust focuses on replacement mufflers for truck applications that need controlled exhaust tone and factory-style routing. This AP Exhaust muffler, part number 2567, uses a baffled muffler configuration to help maintain a sound profile close to OE while matching the inlet and outlet layout used on the specified Ram and Dodge Ram 1500 models.

Fitment

• Fits 2017-2018 Ram 1500, N/A, Dual Exhaust; Challenge LTW
• Fits 2011-2016 Ram 1500, N/A, Challenge LTW; w/ Factory Duals
• Fits 2009-2010 Dodge Ram 1500, N/A, Challenge LTW; w/ Factory Duals

What This Muffler Helps Address

• Exhaust noise that has become louder than factory levels
• Replacement needs for a damaged or corroded muffler body
• Restoring factory-style exhaust routing on dual-exhaust trucks
• Maintaining an OE-comparable exhaust note on Ram 1500 applications
• Replacing a worn muffler with the correct inlet and outlet configuration

Installation Notes

Verify inlet and outlet orientation before installation: this muffler uses a 3-inch left upper inlet and dual 2.25-inch left lower/right lower outlets. Confirm the vehicle has the listed factory dual exhaust configuration and match the overall length and body dimensions to the existing exhaust layout before final fitment. AP Exhaust 2567 is listed for 2009-2018 Ram 1500 and Dodge Ram 1500 applications shown above.

Quality Assurance

AP Exhaust manufactures replacement exhaust components for direct-fit service applications, and the Challenge LTW 2567 is built with aluminized steel for standard corrosion resistance in exhaust use. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
