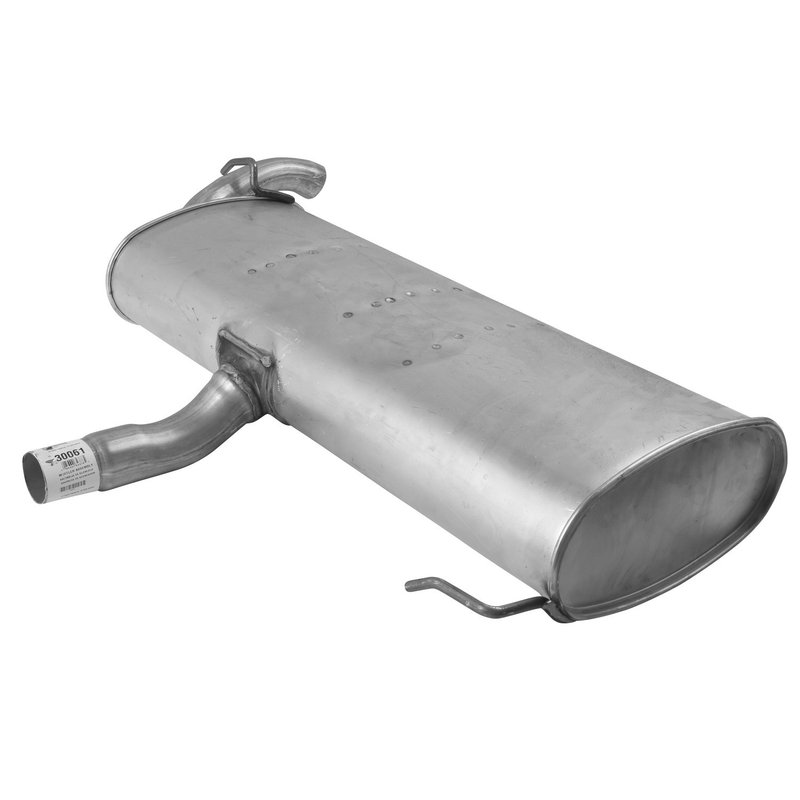

AP Exhaust 30061 Exhaust Muffler Assembly
OE Quality 60-Day Returns
AP Exhaust

AP Exhaust 30061 Exhaust Muffler Assembly

Brand AP Exhaust 30061
Automotive Item Grade Regular
Body Height 5.50
Body Length 28
Body Material Aluminized steel
Body Width 11
Fitment Oe replacement
Inlet Quantity 1
Inlet Type Pipe
Mount Type 2 bracket
Muffler Color Bare
Muffler Configuration Transverse
Muffler In. Dia. Designation Od
Muffler Inlet Diameter 1 (in) 2.00
Muffler Inlet Location Body side
Muffler Out. Dia. Designation Od
Muffler Outlet Diameter (in) 2.00
Muffler Outlet Location Right center
Muffler Outlet Quantity 1
Muffler Overall Length 34
Muffler Reversible No
Muffler Shape Oval
Muffler Type Baffled
Outlet Type Pipe
Series Challenge
Fits Jeep · 13 vehicles

OE replacement. Direct-fit muffler assembly for straightforward installation.

Aluminized steel body. Helps resist corrosion for longer service life.

Baffled oval design. Delivers controlled exhaust flow and sound.

Cross-references 68142882AE for the same application. See all 1.

$151.62Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $151.62
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Exhaust Muffler Assembly options

AP Exhaust 30061 Muffler Assembly

AP Exhaust 30061 is an OE replacement exhaust muffler assembly built for direct-fit service on select Jeep Compass and Jeep Patriot applications. It uses a transverse oval baffled design with aluminized steel construction to match the original exhaust layout on welded-system vehicles.

Key Features

  • OE replacement exhaust muffler assembly for select Jeep Compass and Jeep Patriot models
  • Transverse muffler configuration with an oval body
  • Baffled muffler design for factory-style exhaust flow characteristics
  • Aluminized steel body for corrosion resistance in everyday driving conditions
  • 2.00 in. inlet and 2.00 in. outlet pipe connections
  • Body-side inlet and right-center outlet location
  • Challenge series AP Exhaust 30061

Detailed Description

AP Exhaust 30061 is engineered as a replacement muffler assembly for vehicles equipped with a welded OE exhaust system. The 28-inch body length, 11-inch body width, and 5.50-inch body height support a factory-style underbody fit, while the transverse oval layout helps maintain the original routing on the Jeep Compass and Jeep Patriot. This AP Exhaust 30061 muffler assembly is a practical choice when replacing a worn or damaged rear exhaust section on 2012-2017 Jeep Compass and 2012-2017 Jeep Patriot applications listed in the fitment data.

This part cross-references Mopar 68142882AE for the same application.

Vehicle Fitment

  • Fits 2017 Jeep Compass, N/A. Welded assembly; w/o tip; OE system was a welded assembly; recommended to replace all noted parts.
  • Fits 2017 Jeep Patriot, N/A. Welded assembly; w/o tip; OE system was a welded assembly; recommended to replace all noted parts.
  • Fits 2013-2016 Jeep Compass, N/A. Welded assembly; w/o tip; OE system was a welded assembly; recommended to replace all noted parts.
  • Fits 2013-2016 Jeep Patriot, N/A. Welded assembly; w/o tip; OE system was a welded assembly; recommended to replace all noted parts.
  • Fits 2012 Jeep Compass, N/A. Welded assembly; w/o tip; OE system was a welded assembly; recommended to replace all noted parts; from 10/30/2011.
  • Fits 2012 Jeep Patriot, N/A. Welded assembly; w/o tip; OE system was a welded assembly; recommended to replace all noted parts; from 10/30/2011.

Installation Notes and Tips

Verify the vehicle’s exhaust layout before ordering, since this muffler assembly is specified for welded OE systems and does not use a reversible configuration. Confirm the 2.00-inch inlet and outlet pipe sizing, body-side inlet location, and right-center outlet position against the original part before installation. Because the OE system was welded, replacement may require exhaust cutting and welding by a qualified technician.

Quality Assurance

AP Exhaust manufactures replacement exhaust components for OE-style service applications, and this muffler assembly is built to match the listed fitment and dimensional requirements for the supported Jeep Compass and Jeep Patriot vehicles.

Related reading

This part fits 13 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersNotes
2017JeepCompass4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.; 2017
2017JeepCompassAWD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.; 2017
2017JeepPatriot4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.; 2017
2016JeepCompass4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2016JeepPatriot4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2015JeepCompass4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2015JeepPatriot4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2014JeepCompass4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2014JeepPatriot4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2013JeepCompass4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2013JeepPatriot4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2012JeepCompass4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.; FROM 10/30/2011
2012JeepPatriot4WD2.4LL4Welded Assembly; (w/o Tip); OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.; (FROM 10/30/2011)
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
68142882AE
