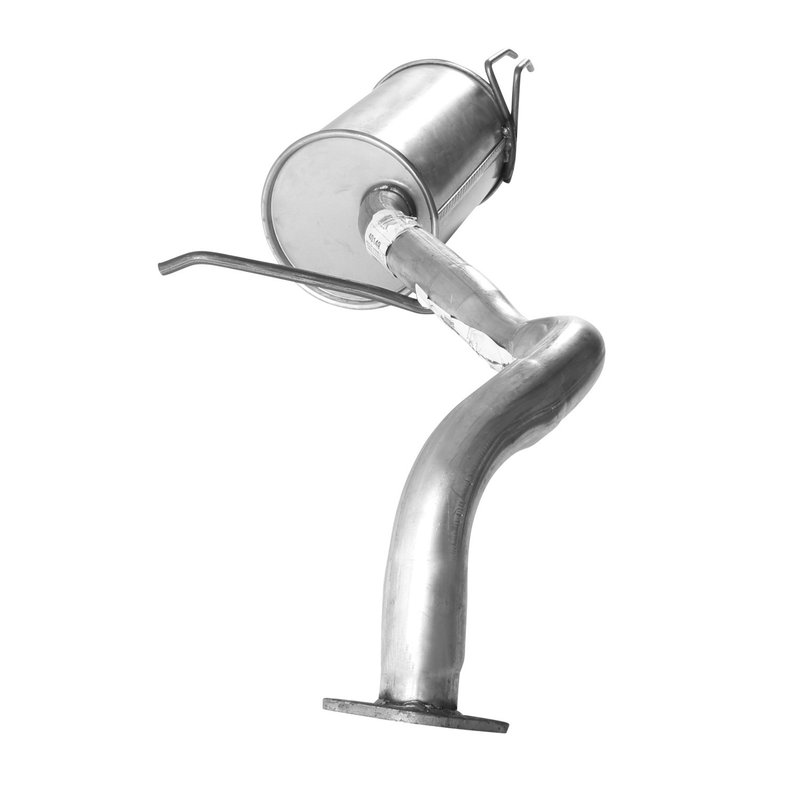

AP Exhaust 40149 Exhaust Muffler Assembly - Right
OE Quality 60-Day Returns
AP Exhaust

AP Exhaust 40149 Exhaust Muffler Assembly - Right

Brand AP Exhaust 40149
Position Right
Automotive Item Grade Regular
Body Height 7
Body Length 12
Body Material Aluminized steel
Body Width 7
Fitment Oe replacement
Inlet Quantity 1
Inlet Type Flange
Mount Type 3 bracket
Muffler Color Bare
Muffler Configuration O/co
Muffler In. Dia. Designation Od
Muffler Inlet Diameter 1 (in) 2.00
Muffler Inlet Location Upper right offset
Muffler Out. Dia. Designation Od
Muffler Outlet Diameter (in) 2.00
Muffler Outlet Location Lower center
Muffler Outlet Quantity 1
Muffler Overall Length 43
Muffler Reversible No
Muffler Shape Round
Muffler Type Baffled
Outlet Type Pipe
Series Challenge
Fits Hyundai · 6 vehicles

OE replacement. Built as a direct-fit exhaust muffler assembly.

Aluminized steel body. Helps resist corrosion in demanding exhaust conditions.

Baffled design. Delivers a round muffler with controlled exhaust flow.

Cross-references 28700-3J150 for the same application. See all 1.

$167.61Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $167.61
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Exhaust Muffler Assembly options

AP Exhaust 40149 Muffler Assembly

AP Exhaust 40149 is an OE replacement exhaust muffler assembly built for the right side of select Hyundai Veracruz models. It uses a baffled round muffler design with a 2.00-inch inlet and 2.00-inch outlet to match the original exhaust layout on 2007-2012 Hyundai Veracruz applications.

For buyers searching for a Hyundai Veracruz right exhaust muffler assembly, AP Exhaust 40149 provides the correct flange inlet, lower center outlet, and welded muffler assembly configuration for direct replacement service.

  • Brand: AP Exhaust
  • Part number: 40149
  • OE replacement exhaust muffler assembly
  • Fits 2007-2012 Hyundai Veracruz, right
  • Round, baffled muffler construction
  • Aluminized steel body for exhaust system service
  • Upper right offset inlet and lower center outlet layout
  • 2.00-inch inlet and 2.00-inch outlet diameter
  • Flange inlet with 3-bracket mount type

Detailed Fitment and Design

This AP Exhaust 40149 muffler assembly is engineered around the original exhaust routing used on the Hyundai Veracruz. The aluminized steel body measures 7 inches high, 12 inches long, and 7 inches wide, with a 43-inch overall length, giving it the form factor needed for the right-side exhaust position on 2007-2012 Hyundai Veracruz vehicles. The baffled internal design supports factory-style exhaust flow control while maintaining OE replacement fitment.

This part cross-references Hyundai OE number 28700-3J150 for the same application. If you are replacing a worn or damaged Hyundai Veracruz muffler assembly, AP Exhaust 40149 is the direct-fit part number to compare against the original equipment layout.

Common Problems This Part Addresses

  • Rust-through or corrosion in the original muffler body
  • Exhaust leaks at the muffler assembly
  • Excessive exhaust noise from a damaged muffler
  • Fitment issues when replacing the right-side factory muffler
  • Loss of proper exhaust routing on Hyundai Veracruz models

Installation Notes and Tips

Verify the vehicle is a 2007-2012 Hyundai Veracruz, right-side application before ordering. Match the flange inlet, 2.00-inch inlet and outlet diameters, and the upper right offset to lower center outlet configuration to the original exhaust assembly. Because this is an OE replacement muffler assembly, installation should follow the factory exhaust routing and mounting points for proper alignment.

Quality Assurance

AP Exhaust manufactures replacement exhaust components for direct-fit service applications, and this muffler assembly is built to OE replacement specifications for the listed Hyundai Veracruz fitment.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2012HyundaiVeracruz3.8LV6RightWelded Exhaust Muffler Assembly
2011HyundaiVeracruz3.8LV6RightWelded Exhaust Muffler Assembly
2010HyundaiVeracruz3.8LV6RightWelded Exhaust Muffler Assembly
2009HyundaiVeracruz3.8LV6RightWelded Exhaust Muffler Assembly
2008HyundaiVeracruz3.8LV6RightWelded Exhaust Muffler Assembly
2007HyundaiVeracruz3.8LV6RightWelded Exhaust Muffler Assembly
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
28700-3J150
