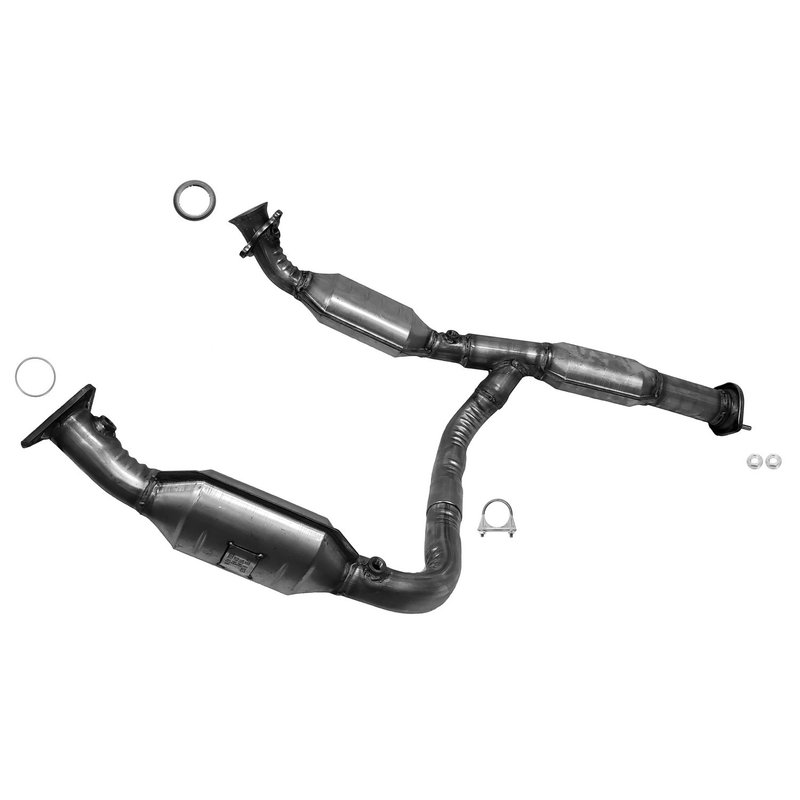

AP Exhaust 645767 Catalytic Converter - Front

Direct-Fit Catalytic Converter for Express and Savana

AP Exhaust 645767 is a Federal / EPA direct-fit catalytic converter assembly built for front-position applications on select Chevrolet Express and GMC Savana vans. It uses a stainless steel body with a ceramic catalyst and OE-style dimensions for straightforward replacement on the listed vehicles.

Key Features

• Federal / EPA direct-fit catalytic converter for front exhaust placement
• Stainless steel body for corrosion resistance in exhaust service
• Ceramic catalyst type
• Built to exact OE dimensions and fitment
• 4 O2 sensor ports for the listed applications
• 3-bolt welded and 3-bolt spinner inlet configurations
• 2-bolt welded outlet design with outlet hardware noted
• Overall length: 61 in.

Detailed Product Overview

AP Exhaust part number 645767 is engineered for 2018-2021 Chevrolet Express 2500, 2018-2021 Chevrolet Express 3500, 2018-2021 GMC Savana 2500, and 2018-2021 GMC Savana 3500 front applications. It is a direct-fit Y-pipe converter assembly for the listed vans, with fitment covering Federal and California emissions configurations as noted in the application data. The converter uses AP Emissions Technologies manufacturing methods and proprietary substrate chemistry to support efficient catalyst loading while maintaining OE-style fit and dimensional accuracy. This part number, 645767, is a practical replacement choice when servicing the front exhaust converter on Express and Savana platforms.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Failed or inefficient front catalytic converter operation
• Check engine light concerns related to catalyst efficiency or O2 sensor readings
• Exhaust restriction caused by a damaged converter substrate
• Exhaust leaks at the converter assembly connection points
• Fitment issues when replacing an OE-style Y-pipe converter assembly

Installation Notes and Tips

Verify the vehicle’s emissions configuration and state restrictions before installation. This converter is listed for Federal and California emissions applications on the specified vans, but it is not for sale or use on vehicles licensed in CA, CO, ME, or NY, and restrictions may apply in other states. Confirm the front position, inlet style, outlet style, O2 sensor port count, and overall length against the original assembly before installation. Professional exhaust installation is recommended to ensure proper sealing and sensor placement.

Quality Assurance

AP Exhaust builds this converter using automated workstations, spinner welding equipment, and high-speed production lines to maintain OE dimensions and consistent fitment. The stainless steel construction and ceramic catalyst are selected for exhaust-system service on the listed Chevrolet Express and GMC Savana applications.
