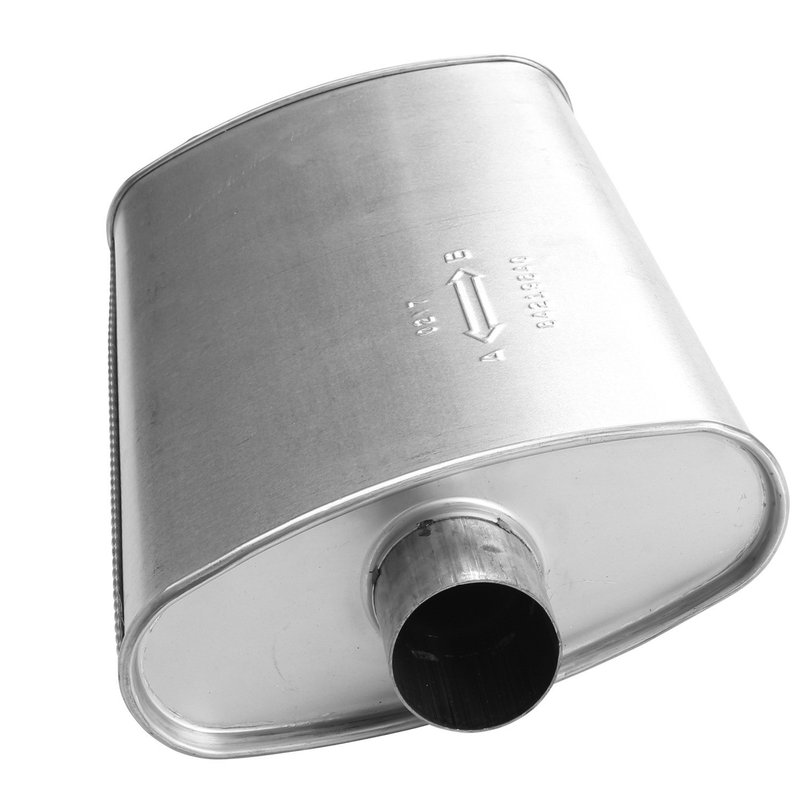

AP Exhaust 700109 Exhaust Muffler

AP Exhaust 700109 Muffler Overview

AP Exhaust 700109 is a direct-fit exhaust muffler for select 1987-1989 Chevrolet Blazer and GMC Jimmy applications, along with several 1987-1988 Chevrolet and GMC Suburban and 1987 Chevrolet/GMC truck models. It uses an oval, baffled design with OE-comparable sound level for a factory-style exhaust note.

• AP Exhaust part number 700109
• Exhaust muffler with baffled construction
• Oval body shape with aluminized steel body material
• Center 2.5 in. inlet and right-center 2.5 in. outlet
• Overall length: 24 in.; body length: 20 in.
• OE comparable sound level
• Direct-fit MSL/Maximum Muffler application coverage

Fitment Details

• Fits 1987-1989 Chevrolet Blazer, N/A. DIRECT FIT MSL/MAXIMUM Muffler.
• Fits 1987-1989 GMC Jimmy, N/A. DIRECT FIT MSL/MAXIMUM Muffler.
• Fits 1987-1988 Chevrolet V10 Suburban, N/A. DIRECT FIT MSL/MAXIMUM Muffler; Dual Exhaust; with 2 1/2" Muffler Inlet.
• Fits 1987-1988 Chevrolet V20 Suburban, N/A. DIRECT FIT MSL/MAXIMUM Muffler; Dual Outlet; with 2 1/2" Muffler Inlet.
• Fits 1987-1988 GMC V1500 Suburban, N/A. DIRECT FIT MSL/MAXIMUM Muffler; Dual Exhaust; with 2 1/2" Muffler Inlet.
• Fits 1987-1988 GMC V2500 Suburban, N/A. DIRECT FIT MSL/MAXIMUM Muffler; Dual Outlet; with 2 1/2" Muffler Inlet.
• Fits 1987 Chevrolet R10, N/A. DIRECT FIT MSL/MAXIMUM Muffler.
• Fits 1987 Chevrolet R20, N/A. DIRECT FIT MSL/MAXIMUM Muffler; (To 8500 lbs. G.V.W.).
• Fits 1987 Chevrolet V10, N/A. DIRECT FIT MSL/MAXIMUM Muffler.
• Fits 1987 Chevrolet V20, N/A. DIRECT FIT MSL/MAXIMUM Muffler; (To 8500 lbs. G.V.W.).
• Fits 1987 GMC R1500, N/A. DIRECT FIT MSL/MAXIMUM Muffler.
• Fits 1987 GMC R2500, N/A. DIRECT FIT MSL/MAXIMUM Muffler; (To 8500 lbs. G.V.W.).
• Fits 1987 GMC V1500, N/A. DIRECT FIT MSL/MAXIMUM Muffler.
• Fits 1987 GMC V2500, N/A. DIRECT FIT MSL/MAXIMUM Muffler; (To 8500 lbs. G.V.W.).

Detailed Product Description

Built for direct replacement service, AP Exhaust 700109 features a 4.06 in. body height, 10.5 in. body width, and 20 in. body length in an oval aluminized steel shell. The muffler uses a single center inlet and a single right-center outlet, both with 2.5 in. inside diameter pipe connections. Its baffled internal design and OE-comparable sound level make it a practical choice for restoring exhaust function on a Chevrolet Blazer, GMC Jimmy, or the listed Chevrolet and GMC truck and Suburban applications. AP Exhaust 700109 is part of the MSL series and is not tunable.

Common Problems This Muffler Can Address

• Rust-through or corrosion in the original muffler body
• Exhaust leaks caused by a damaged muffler shell or internal failure
• Excessive exhaust noise from a worn factory muffler
• Poor exhaust routing match when replacing a direct-fit MSL/Maximum Muffler
• Need for a replacement muffler with OE-style sound characteristics

Installation Notes and Tips

Confirm inlet and outlet orientation before installation: this muffler uses a center inlet and right-center outlet with 2.5 in. pipe connections. Verify vehicle-specific fitment for your Chevrolet Blazer, GMC Jimmy, or listed 1987-1988 Suburban and 1987 truck application, including notes for dual exhaust and GVW-specific coverage where shown. Because the body is aluminized steel and no heat shield is attached, inspect surrounding exhaust components and hangers during replacement.

Quality Assurance

AP Exhaust 700109 is a regular-grade exhaust muffler from AP Exhaust’s MSL series, built with aluminized steel construction for service replacement use. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
