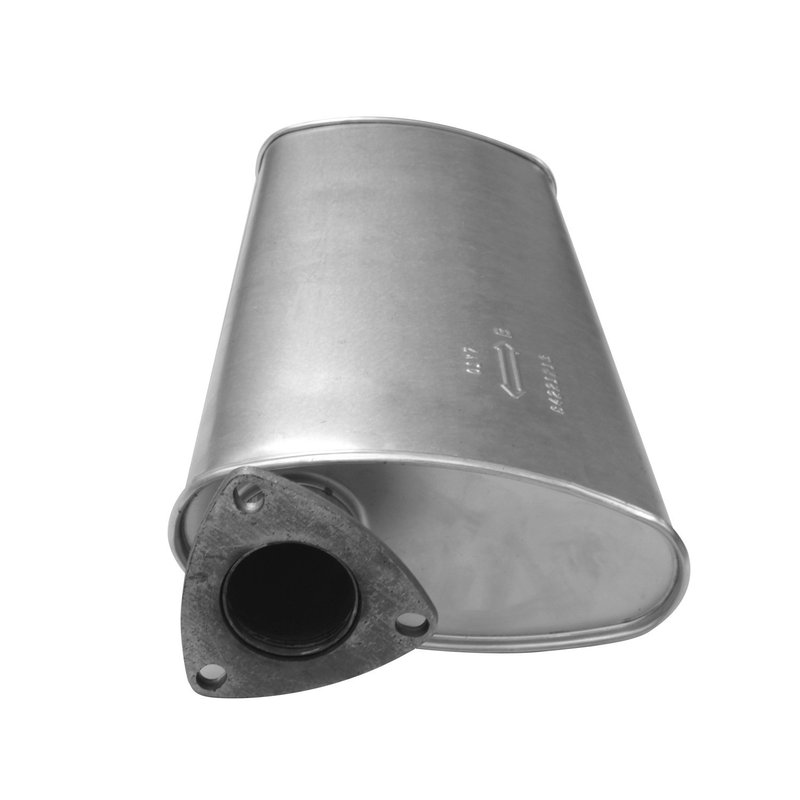

AP Exhaust 700150 Exhaust Muffler

AP Exhaust 700150 Exhaust Muffler Overview

The AP Exhaust 700150 muffler is designed for reliable exhaust flow and sound control in Chevrolet, GMC, and Oldsmobile vehicles. Engineered with aluminized steel, this muffler offers durability and corrosion resistance for models like the Blazer, Bravada, and Jimmy.

• Body dimensions: 28" length, 11" width, 4.5" height
• Constructed from aluminized steel for enhanced corrosion resistance
• Oval-shaped baffled muffler with OE comparable sound level
• Single inlet flange (2.75" outside diameter) located at right center
• Single outlet pipe (2.25" inside diameter) positioned at center
• Overall length of 32.62" with regular grade type

Detailed Product Features and Specifications

The AP Exhaust 700150 muffler features a baffled design that helps reduce exhaust noise to levels comparable with original equipment. Its oval shape and aluminized steel body provide a balance of durability and fitment precision. The muffler’s inlet is a flange type located at the right center, measuring 2.75 inches in outside diameter, while the outlet is a pipe type centered with a 2.25-inch inside diameter. This configuration supports efficient exhaust flow and sound attenuation for compatible vehicles.

Compatible Vehicles and Applications

This exhaust muffler is compatible with select Chevrolet, GMC, and Oldsmobile models, specifically the Blazer, Bravada, and Jimmy. It is designed to replace factory mufflers in these vehicles, maintaining proper exhaust function and sound characteristics.

• Replaces worn or damaged mufflers on Chevrolet Blazer models
• Restores exhaust performance on GMC Bravada vehicles
• Maintains OE sound levels for Oldsmobile Jimmy applications
• Addresses exhaust leaks and excessive noise issues
• Helps improve exhaust flow and reduce emissions

Installation Notes and Tips

When installing the AP Exhaust 700150 muffler, ensure the flange inlet aligns correctly with the vehicle’s exhaust pipe at the right center position. Verify the outlet pipe is centered for proper exhaust routing. This muffler does not include a heat shield, so check for adequate clearance from heat-sensitive components. Professional installation is recommended to ensure proper fit and seal.

Quality Assurance and Warranty

Manufactured by AP Exhaust, the 700150 muffler meets industry standards for material quality and performance. The aluminized steel construction offers resistance to rust and corrosion, extending the service life of the muffler. Warranty details are provided by the manufacturer and should be confirmed at the time of purchase.
