AP Exhaust 700350 Exhaust Muffler

AP Exhaust 700350 Muffler for Blazer and Jimmy

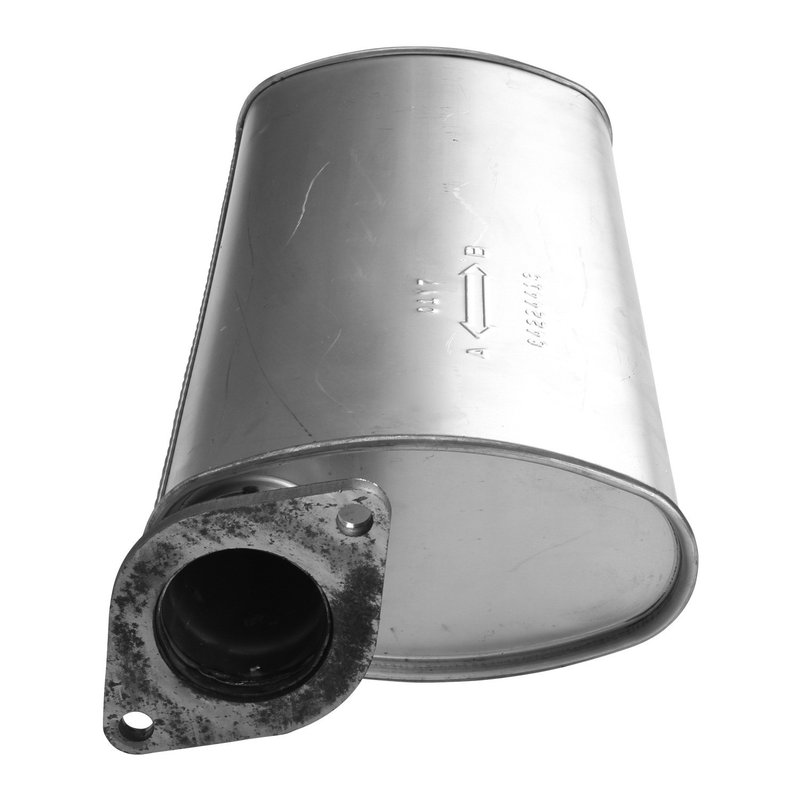

AP Exhaust 700350 is a direct-fit exhaust muffler built for select Chevrolet Blazer and GMC Jimmy applications. It uses an oval aluminized steel body with a baffled design and OE-comparable sound level for a factory-style exhaust repair.

Key Features

• Part number 700350 from AP Exhaust
• Oval muffler body with aluminized steel construction
• Baffled muffler type with OE-comparable sound level
• Single right-center inlet with 2.75-inch outside diameter and flange connection
• Single center outlet with 2.25-inch inside diameter and pipe outlet type
• Overall length of 25.25 inches for direct-fit exhaust service
• AP Exhaust 700350 is part of the MSL series

Detailed Description

This AP Exhaust muffler is engineered for direct replacement on 2000-2005 Chevrolet Blazer and 2000-2005 GMC Jimmy applications listed in the fitment data. The oval body measures 21 inches long, 8.75 inches wide, and 4.25 inches high, with aluminized steel construction for standard exhaust system durability. The baffled internal design and OE-comparable sound level support a factory-style exhaust tone, while the right-center inlet and center outlet layout match the specified vehicle routing. If you are replacing a welded OE muffler assembly on a Chevrolet Blazer or GMC Jimmy, AP Exhaust 700350 provides a direct-fit service part for the listed applications.

Vehicle Fitment

• Fits 2000-2005 Chevrolet Blazer, N/A. DIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
• Fits 2000-2003 GMC Jimmy, N/A. DIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
• Fits 2005 GMC Jimmy, N/A. DIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.

What This Muffler Helps Address

• Replacement for a rusted or damaged factory muffler
• Correction for exhaust noise that has become louder than OE levels
• Service for a welded original muffler assembly that requires direct-fit replacement
• Restoration of proper exhaust routing on listed Blazer and Jimmy models
• Repair of a leaking or restricted muffler section in the exhaust system

Installation Notes and Tips

Verify inlet and outlet orientation before installation: this muffler uses a right-center inlet, center outlet, and flange inlet connection. Because the OE system was a welded assembly on the listed Chevrolet Blazer and GMC Jimmy applications, related exhaust components noted in the fitment comments should be inspected and replaced as needed during service. Confirm vehicle year and model against the fitment data before ordering AP Exhaust 700350.

Quality Assurance

AP Exhaust manufactures exhaust components for direct-fit replacement service, and this muffler is built to match the listed application details for the Chevrolet Blazer and GMC Jimmy. Part number 700350 is specified as an MSL series muffler with OE-comparable sound characteristics for the confirmed fitment range.
