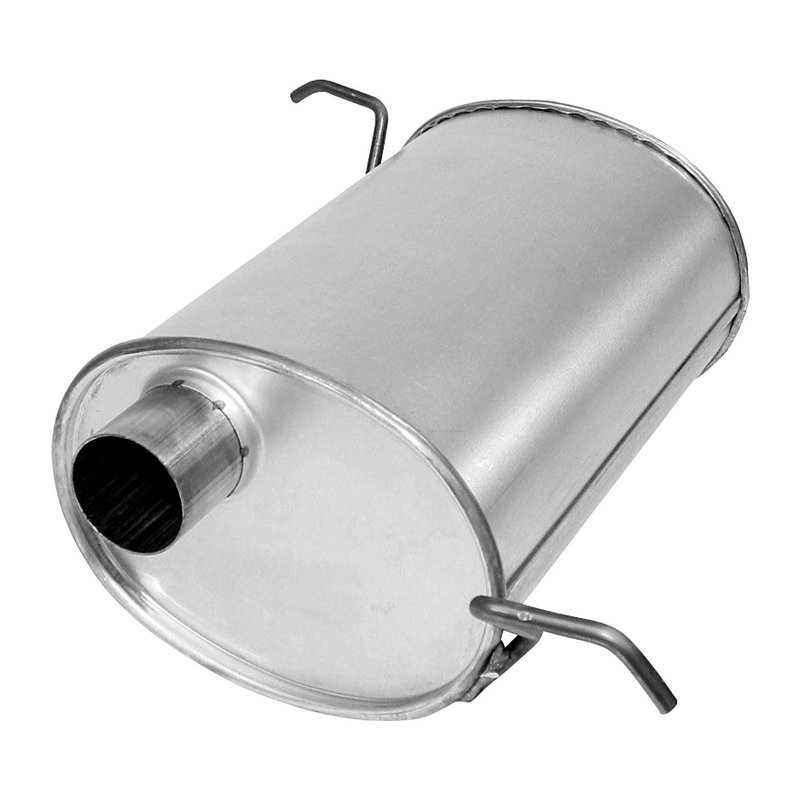

AP Exhaust 700396 Exhaust Muffler
OE Quality 60-Day Returns
AP Exhaust

AP Exhaust 700396 Exhaust Muffler

Brand AP Exhaust 700396
Body Height 7
Body Length 14
Body Material Aluminized Steel
Body Width 9
Grade Type Regular
Heat Shield Attached No
Inlet Inside Diameter 2.25
Inlet Location Right Lower
Inlet Type Pipe
Muffler Configuration HH
Muffler Type Baffled
Outlet Location Left Upper
Outlet Outside Diameter 2.25
Outlet Type Pipe
Overall Length 21.5
Series MSL
Shape Oval
Sound Level OE comparable
Tunable No
Fits Chrysler · 14 vehicles

Baffled muffler. Helps control exhaust tone for an OE-comparable sound level.

Aluminized steel body. Resists corrosion while keeping the muffler durable.

Oval shape. Compact design fits neatly within the exhaust system.

$61.19Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $61.19
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Exhaust Muffler options

AP Exhaust 700396 Muffler for PT Cruiser

AP Exhaust 700396 is a direct-fit exhaust muffler for select 2001-2010 Chrysler PT Cruiser applications. Built with aluminized steel and an oval baffled design, it is sized for OE-comparable sound control and factory-style exhaust routing.

  • Part number: 700396
  • Brand: AP Exhaust
  • Series: MSL
  • Body material: aluminized steel
  • Oval muffler with baffled construction
  • OE comparable sound level
  • Single inlet and single outlet pipe design
  • Inlet inside diameter: 2.25 in.
  • Outlet outside diameter: 2.25 in.
  • Overall length: 21.5 in.

Fitment Details

Fits 2001-2010 Chrysler PT Cruiser, N/A. This AP Exhaust 700396 muffler is listed as a direct-fit MSL/Maximum muffler for the PT Cruiser, and the OE system was a welded assembly. For this application, the catalog notes that all parts identified in the original system should be replaced.

Product Overview

AP Exhaust 700396 uses a 7 in. x 9 in. x 14 in. oval body with a right lower inlet and left upper outlet to match the factory exhaust path. The baffled muffler configuration is intended to maintain an OE-like exhaust note while supporting a clean replacement for the original welded assembly on Chrysler PT Cruiser models. If you are searching for a Chrysler PT Cruiser muffler replacement, AP Exhaust 700396 provides the dimensions and connection style needed for a direct-fit service part.

Common Repair Uses

  • Replacing a rusted or damaged muffler on a 2001-2010 Chrysler PT Cruiser
  • Restoring factory-style exhaust sound after muffler failure
  • Addressing exhaust leaks at the muffler body or pipe connections
  • Replacing a welded OE muffler assembly with a serviceable direct-fit part
  • Correcting exhaust noise caused by internal muffler deterioration

Installation Notes

Verify inlet and outlet orientation before installation: right lower inlet, left upper outlet. Because the OE system was welded, inspect the adjoining exhaust components and replace any worn sections noted in the original assembly. Confirm 2.25 in. pipe sizing and overall length before final fitment on your Chrysler PT Cruiser.

Quality Assurance

AP Exhaust 700396 is a regular-grade replacement muffler built from aluminized steel for service use in the AP Exhaust MSL series. It is specified as an OE-comparable muffler for 2001-2010 Chrysler PT Cruiser applications.

Related reading

This part fits 14 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeLitersCylindersPositionNotes
2010ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2009ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2008ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2008ChryslerPT CruiserConvertible2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2007ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2007ChryslerPT CruiserConvertible2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2006ChryslerPT CruiserConvertible2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2006ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2005ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2005ChryslerPT CruiserConvertible2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2004ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2003ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2002ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
2001ChryslerPT Cruiser—2.4LL4N/ADIRECT FIT MSL/MAXIMUM Muffler; OE system was a welded assembly. It is recommended that all parts noted [1] should be replaced.
