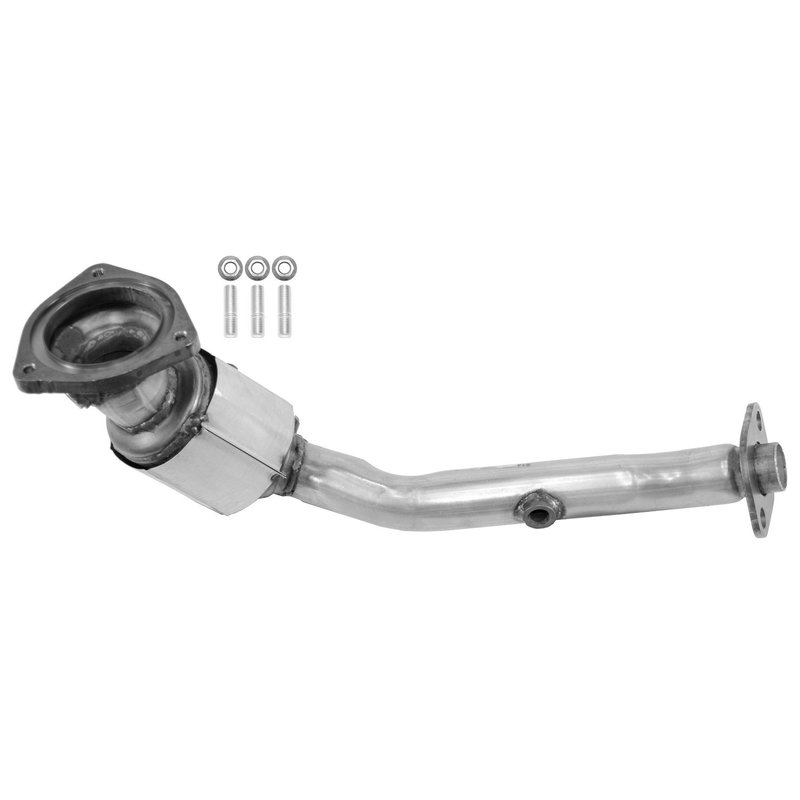

AP Exhaust 771497 Catalytic Converter - Front

CARB-Compliant Direct-Fit Catalytic Converter

AP Exhaust 771497 is a CARB compliant direct-fit catalytic converter built for the front position on select Suzuki SX4 models. It is engineered with a stainless steel body, ceramic substrate, and OE-style dimensions for a direct replacement on California-emissions applications.

For 2007-2009 Suzuki SX4 front catalytic converter replacement, this unit is built to match the original fitment and emissions configuration. The AP Exhaust 771497 also carries California Executive Order D-798-9 for the listed applications.

Key Features

• Direct-fit catalytic converter for front-position installation
• Stainless steel body for corrosion resistance
• Ceramic substrate material
• CARB compliant with Executive Order D-798-9
• 3-bolt welded inlet flange
• 2-bolt welded outlet flange with gasket stub
• Three O2 sensor ports
• OE-style dimensions and fitment

Product Line Details

AP Exhaust’s 7SKXV1.995D1 product line is built around ARISTO substrate chemistry and advanced manufacturing methods to support efficient converter loading and consistent OE-style fitment. The line is produced with automated workstations, spinner welding equipment, and high-speed production processes to maintain dimensional accuracy across the converter assembly.

Detailed Description

This catalytic converter is designed for 2007, 2008, and 2009 Suzuki SX4 front applications listed as California direct-fit replacements. The stainless steel housing, ceramic substrate, and welded flange design support a factory-style installation path while maintaining the emissions configuration required for the covered vehicles. Part number 771497 is a practical choice when replacing a front catalytic converter on a Suzuki SX4 with California emissions requirements.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Failed catalytic converter efficiency codes
• Exhaust odor caused by a worn substrate
• Emissions test failure on California-equipped vehicles
• Exhaust leaks at the converter flange connection
• Restricted exhaust flow from internal converter damage

Installation Notes and Tips

Verify the vehicle is a 2007-2009 Suzuki SX4 with front-position California emissions fitment before installation. Confirm the inlet uses a 3-bolt welded flange and the outlet uses a 2-bolt welded flange with gasket stub. The converter includes inlet hardware, while inlet gasket, outlet gasket, and outlet hardware are not listed. Check all O2 sensor connections and clear any stored diagnostic trouble codes after installation.

Quality Assurance

AP Exhaust Holdings, LLC identifies this converter as CARB compliant for the listed application and assigns Executive Order D-798-9. The 7SKXV1.995D1 line is manufactured to OE dimensions using controlled production processes to support consistent fitment and emissions compliance.
