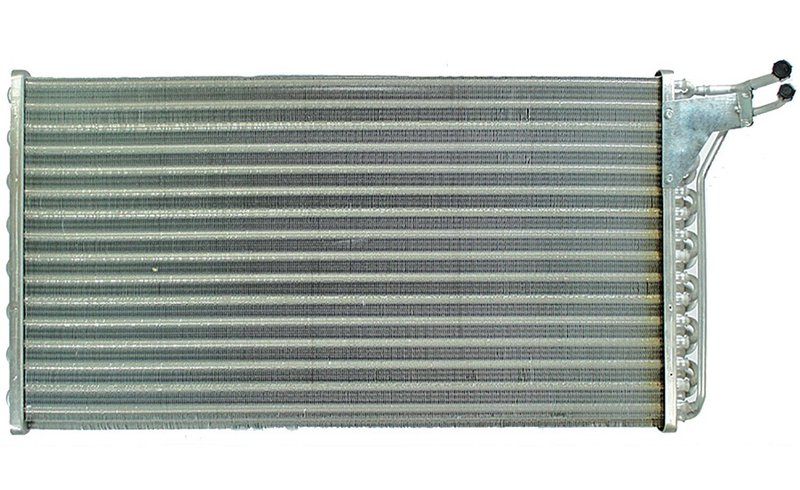

APDI 7013221 A/C Condenser

APDI A/C Condenser for GM Applications

The APDI 7013221 A/C condenser is a direct-fit HVAC replacement built for GM vehicles that use a tube and fin condenser design. It features an aluminum core with OE-style inlet and outlet connections for straightforward service on the air conditioning system.

Compatible with 1977-1986 Cadillac Fleetwood and 1987-1988 Cadillac Brougham, this APDI condenser supports proper refrigerant heat transfer in the front HVAC system. The APDI condenser line focuses on replacement condensers for vehicle-specific fitment, and part number 7013221 is built to match the listed GM applications.

Key Features

• Tube and fin condenser core type
• Aluminum core construction for efficient heat exchange
• Core dimensions: 29-1/2 in. length, 16-1/8 in. height, 1-3/8 in. thickness
• #8 male O-ring inlet fitting
• #6 male O-ring outlet fitting
• Direct replacement for select Cadillac Fleetwood and Cadillac Brougham models
• APDI part number 7013221

Detailed Description

APDI 7013221 is an A/C condenser for GM vehicles that uses a tube and fin aluminum core to transfer heat from the refrigerant before it returns to the rest of the air conditioning system. The condenser core measures 29-1/2 inches long, 16-1/8 inches high, and 1-3/8 inches thick, with #8 male O-ring inlet and #6 male O-ring outlet fittings for the specified applications. This part number 7013221 is listed for 1977-1986 Cadillac Fleetwood and 1987-1988 Cadillac Brougham, making it a focused replacement choice for Cadillac A/C service.

This part cross-references Anchor 3221 for the same application.

What It Helps Address

• Weak cabin cooling caused by a leaking or restricted condenser
• Reduced A/C performance from damaged condenser fins or tubes
• Refrigerant flow issues related to worn condenser fittings
• Heat rejection problems in the vehicle air conditioning system
• Service replacement needs on Cadillac Fleetwood and Cadillac Brougham A/C systems

Installation Notes and Tips

Verify condenser dimensions and fitting types before installation. Inspect the A/C system for contamination, leaks, and damaged seals, and confirm the refrigerant lines match the #8 inlet and #6 outlet O-ring connections. Proper evacuation and recharge procedures are required after condenser replacement.

Fits 1977-1986 Cadillac Fleetwood, N/A. Fits 1987-1988 Cadillac Brougham, N/A.

Quality Assurance

APDI manufactures replacement HVAC components for vehicle-specific applications, and this condenser is built around the listed GM fitment and OE-style connection points.
