APDI 7013240 A/C Condenser

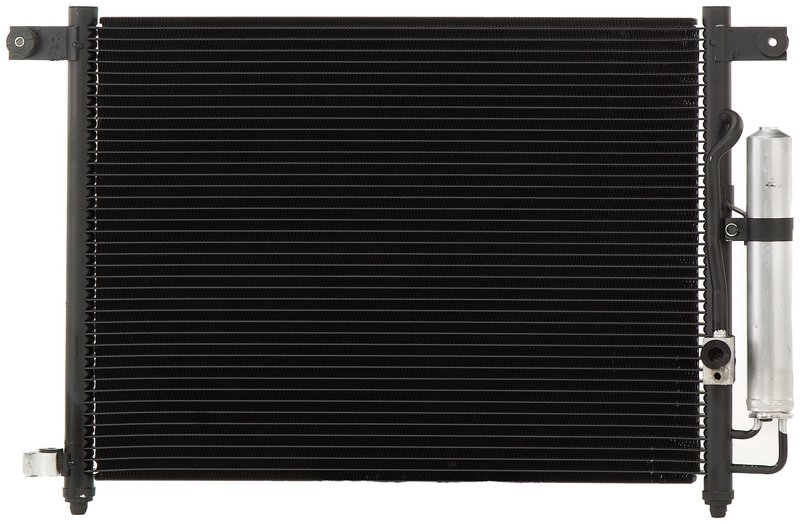

APDI 7013240 A/C Condenser for GM Applications

Restore A/C system performance with this APDI condenser, part number 7013240. Built as a parallel flow aluminum condenser with block connection inlet and outlet fittings, it is made for GM applications and includes the receiver/drier. Compatible With 2004-2009 Suzuki Swift+, 2004-2008 Chevrolet Aveo, 2007-2008 Chevrolet Aveo5, and 2005-2008 Pontiac Wave.

Key Features

• Parallel flow condenser core for efficient refrigerant heat transfer
• Aluminum core construction for lightweight corrosion resistance
• Core dimensions: 23-1/8 in. length, 16-1/8 in. height, 3/4 in. thickness
• Block connection inlet and outlet fittings
• Includes receiver/drier
• APDI condenser 7013240 for GM-based compact car A/C service

Product Details

This APDI condenser is a direct-fit A/C condenser assembly for GM-related compact vehicles, including Chevrolet Aveo, Chevrolet Aveo5, Pontiac Wave, and Suzuki Swift+. The parallel flow core design supports refrigerant cooling efficiency, while the aluminum construction helps keep weight down and supports long-term durability in the HVAC system. The APDI 7013240 is specified with block connection fittings and is sized for the listed applications.

APDI’s condenser line focuses on replacement HVAC components for vehicle-specific fitment. For shoppers searching for a Chevrolet Aveo A/C condenser, Pontiac Wave condenser, or Suzuki Swift+ condenser, this part number 7013240 matches the listed applications and core specifications.

Common Problems This Part Can Address

• Weak cabin cooling from a restricted or leaking condenser
• Refrigerant loss caused by condenser damage or corrosion
• High A/C operating temperatures from poor heat exchange
• System performance issues after front-end impact damage
• Need for a replacement condenser with receiver/drier included

Installation Notes and Tips

Verify the vehicle’s condenser dimensions, block connection style, and A/C line routing before installation. Replace contaminated refrigerant oil and evacuate and recharge the system according to factory service procedures after the condenser is installed. Because this unit includes a receiver/drier, confirm the rest of the HVAC system is clean and free of debris before reassembly.

Quality Assurance

APDI manufactures replacement HVAC components for vehicle-specific applications, and this condenser is built to match the listed fitment and core specifications for the stated GM vehicles. This part cross-references DENSO Auto Parts (e.g., 477-0769) and TYC (e.g., 2151) for the same application.
