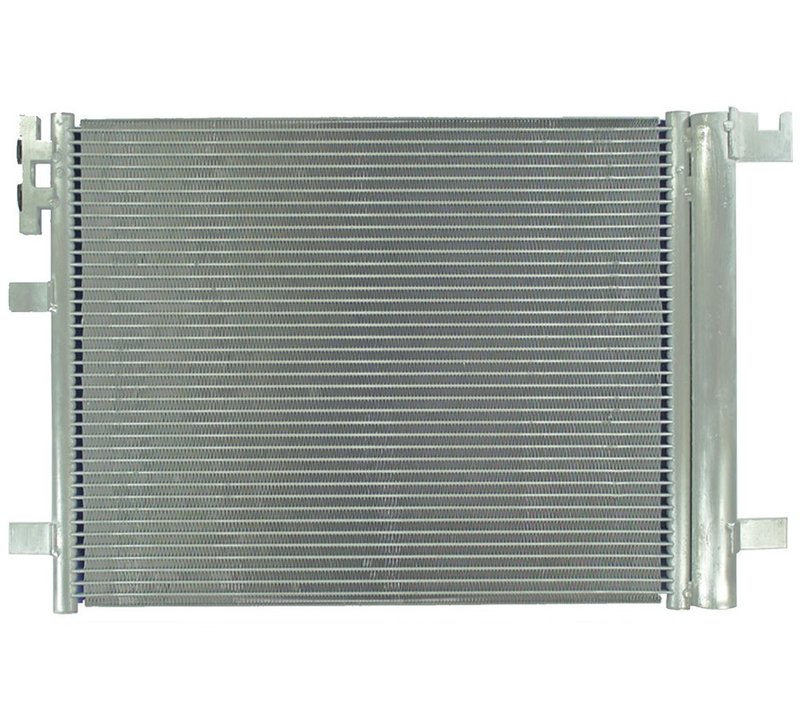

APDI 7013462 A/C Condenser

Overview of APDI 7013462 A/C Condenser for Chevrolet HHR

The APDI 7013462 A/C Condenser is designed specifically for the Chevrolet HHR, providing reliable cooling performance. This condenser features a parallel flow core construction and includes a receiver/drier to support efficient air conditioning operation.

• Parallel flow core construction for effective heat exchange
• Core dimensions: 15-3/4 inches height, 20-5/8 inches length, 5/8 inch thickness
• Block connection inlet and outlet fittings for secure installation
• Includes receiver/drier for system moisture control
• Compatible with Chevrolet HHR models

Detailed Features of the APDI Condenser Line

The APDI Condenser product line focuses on delivering durable and efficient A/C condensers tailored to specific vehicle applications. The 7013462 model utilizes a parallel flow core type, which enhances heat dissipation by allowing refrigerant to flow through multiple flat tubes in parallel. This design improves cooling efficiency and reduces pressure drop compared to traditional tube-and-fin condensers. The inclusion of a receiver/drier helps maintain system integrity by removing moisture and contaminants from the refrigerant.

Technical Specifications and Construction

This A/C condenser features a parallel flow core material and construction, measuring 15-3/4 inches in height, 20-5/8 inches in length, and 5/8 inch in thickness. Both the inlet and outlet fittings use block connections, ensuring a secure and leak-resistant fit within the Chevrolet HHR’s HVAC system. The parallel flow design supports consistent refrigerant flow and effective heat transfer, which is critical for maintaining optimal air conditioning performance.

Common Applications and Problem Resolution

• Replaces faulty or leaking A/C condensers in Chevrolet HHR vehicles
• Addresses reduced cooling efficiency due to clogged or damaged condenser cores
• Solves refrigerant leaks caused by corrosion or physical damage
• Restores proper refrigerant flow and pressure in the A/C system
• Helps eliminate moisture contamination with the included receiver/drier

Installation Notes and Tips

When installing the APDI 7013462 A/C Condenser, ensure the block connection fittings are properly aligned and securely tightened to prevent leaks. It is recommended to evacuate and recharge the A/C system following installation to maintain optimal performance. Inspect the surrounding components for damage or wear during replacement to avoid future issues.

Quality Assurance and Warranty Information

APDI A/C condensers are manufactured to meet or exceed OEM specifications for fit, form, and function. The 7013462 condenser undergoes quality control testing to ensure durability and performance in Chevrolet HHR applications. Warranty details should be confirmed with the distributor or retailer at the time of purchase.
