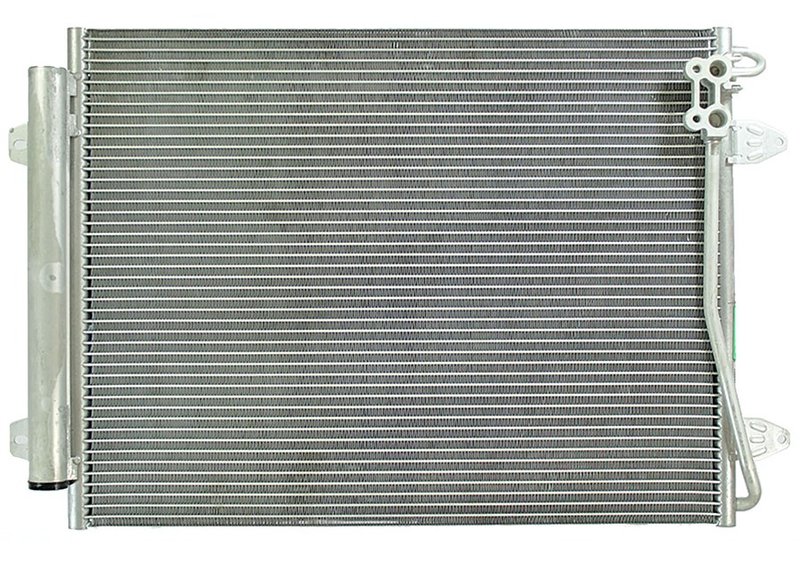

APDI 7013493 A/C Condenser

Volkswagen A/C Condenser Replacement

This APDI A/C condenser is built for Volkswagen cooling system service and matches the OE-style layout for select CC and Passat applications. Part number 7013493 uses a parallel flow design with block connection inlet and outlet fittings for a direct-fit replacement.

APDI Condenser line products focus on application-specific HVAC replacement parts, and this unit follows that approach with dimensions and connections matched to the listed Volkswagen fitments. It also includes a receiver/drier, making it a practical choice for restoring condenser-side A/C function on the correct vehicle applications.

• Parallel flow condenser core design
• Core height: 18-3/8 in.
• Core length: 22-1/4 in.
• Core thickness: 5/8 in.
• Block connection inlet and outlet fittings
• Includes receiver/drier
• Fits 2009-2017 Volkswagen CC, N/A
• Fits 2012-2015 Volkswagen Passat, N/A
• Fits 2006-2010 Volkswagen Passat, N/A
• Fits 2009-2010 Volkswagen Passat CC, N/A

Use this condenser when replacing a leaking, restricted, or damaged A/C condenser on a Volkswagen CC or Volkswagen Passat equipped with the listed configuration. The parallel flow core supports efficient refrigerant heat transfer, while the block connection fittings help match the factory-style hose attachment points. Part number 7013493 is also a useful reference when verifying the correct Volkswagen condenser before ordering.

Common Problems This Part Addresses

• Refrigerant loss from a cracked or corroded condenser
• Poor A/C cooling caused by restricted condenser flow
• Physical damage from road debris or front-end impact
• Leaks at the condenser body or connection points
• Loss of system performance after compressor contamination

Installation Notes

Confirm condenser dimensions and block connection style against the original unit before installation. Replace any contaminated refrigerant and inspect the rest of the A/C system for debris, leaks, or damage before charging. Proper evacuation and recharge procedures are required after condenser replacement on Volkswagen CC and Passat applications.

Quality Assurance

APDI manufactures HVAC replacement components for vehicle-specific applications, and this condenser is built to match the listed fitment and connection style for the correct Volkswagen models. Cross-reference part numbers include DENSO Auto Parts 477-0778 and Nissens 94832 for the same application.
