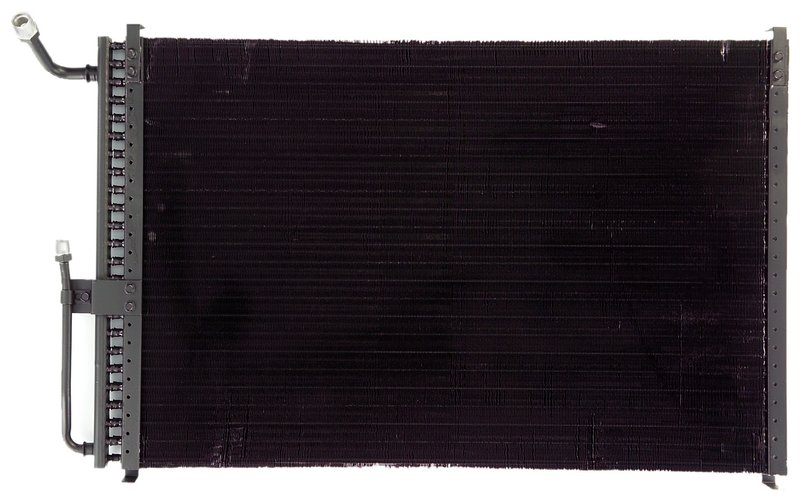

APDI 7013647 A/C Condenser

APDI 7013647 A/C Condenser Overview

The APDI 7013647 A/C condenser is a direct-fit HVAC replacement for select GM vans, including 1985-1989 Chevrolet Astro and 1985-1989 GMC Safari. Built with a 6mm core design and OE-style O-ring fittings, it is specified to match the factory condenser layout for these applications.

APDI’s Condenser line focuses on replacement condensers for vehicle air conditioning systems, and this GM condenser follows that approach with application-specific dimensions and fittings for a straightforward service replacement.

Key Features

• Part number 7013647 for GM A/C condenser replacement
• 6mm condenser core construction
• Core dimensions: 25-1/4 in. length, 15-1/2 in. height, 7/8 in. thickness
• #8 male O-ring inlet fitting
• #6 male O-ring outlet fitting
• Fits 1985-1989 Chevrolet Astro and 1985-1989 GMC Safari

Detailed Description

APDI 7013647 is an A/C condenser for GM HVAC systems, engineered around the listed core size and fitting configuration to align with factory-style refrigerant line connections. The 6mm core construction and OE-style inlet and outlet fittings support proper condenser replacement on Chevrolet Astro and GMC Safari models from 1985 through 1989. If you are searching for an A/C condenser for 1985-1989 Chevrolet Astro or a replacement condenser for 1985-1989 GMC Safari, this part number 7013647 matches those vehicle applications.

This part cross-references Gates 36470 and Anchor 3647 for the same application.

What It Helps Address

• Leaking or damaged condenser cores
• Restricted refrigerant flow through the front A/C heat exchanger
• Loss of cooling performance in the HVAC system
• Corrosion or physical damage to the original condenser
• Service replacement needs on Chevrolet Astro and GMC Safari vans

Installation Notes and Tips

Verify the inlet and outlet fitting sizes before installation: #8 male O-ring inlet and #6 male O-ring outlet. Confirm condenser dimensions against the original unit and inspect refrigerant lines, seals, and related HVAC components during service. Proper evacuation, leak checking, and recharge procedures should be followed after installation.

Quality Assurance

This APDI condenser is built to application-specific dimensions for GM fitment and uses OE-style O-ring connections for factory-style service replacement. Always confirm vehicle year, model, and line connection details before ordering.
