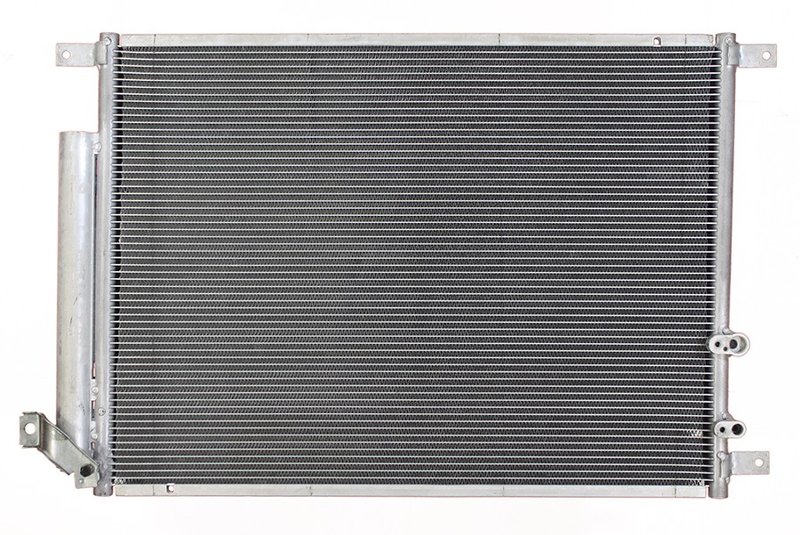

APDI 7013688 A/C Condenser

APDI A/C Condenser for GM Applications

This APDI A/C condenser is built for GM HVAC systems and fits 2008-2014 Cadillac CTS, N/A. The APDI 7013688 uses a parallel flow design with block connection inlet and outlet fittings for a direct-style condenser replacement.

Key Features

• Parallel flow construction for efficient refrigerant heat transfer.
• Block connection inlet and outlet fittings.
• Includes receiver/drier.
• Core dimensions: 22-1/4 in. length, 16-1/2 in. height, 5/8 in. thickness.
• APDI 7013688 for GM condenser applications.

Detailed Description

The APDI 7013688 A/C condenser is engineered for GM vehicles that use a parallel flow condenser layout. Its core design supports efficient cooling performance by allowing refrigerant to move through multiple small passages, while the block connection fittings match the specified condenser connection style. This part fits 2008-2014 Cadillac CTS, N/A, and the included receiver/drier adds an important service component to the assembly. APDI 7013688 is a practical replacement choice when servicing a GM air conditioning system that requires this condenser configuration.

What It Is Used For

• Replacing a leaking or damaged A/C condenser.
• Restoring refrigerant heat rejection in the HVAC system.
• Addressing poor A/C cooling caused by condenser restriction or damage.
• Servicing a condenser assembly that requires a receiver/drier.

Installation Notes and Tips

Verify condenser dimensions, inlet and outlet connection style, and vehicle application before installation. Inspect the A/C system for contamination or debris after a condenser failure, and replace any worn seals or related service parts as needed. Confirm the system is evacuated and recharged according to service specifications after installation.

Quality Assurance

APDI supplies replacement HVAC components for GM applications, and this condenser is built to match the specified condenser layout for the listed fitment. This part cross-references DENSO Auto Parts (e.g., 477-0846, 3688) for the same application.
