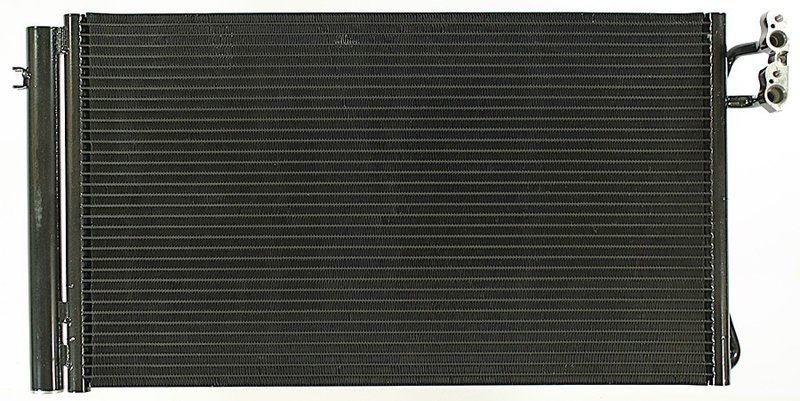

APDI 7013739 A/C Condenser

BMW A/C Condenser Overview

APDI condenser 7013739 is a parallel flow A/C condenser for select BMW applications. It is built with block-style inlet and outlet connections and includes a receiver/drier, making it a focused replacement for restoring refrigerant heat exchange performance.

Key Features

• Parallel flow condenser construction for efficient refrigerant cooling.
• Block connection inlet and outlet fittings for the listed applications.
• Core dimensions: 24-3/4 in. length, 15-3/4 in. height, and 5/8 in. thickness.
• Includes receiver/drier.
• APDI part number 7013739 for BMW HVAC service.

Detailed Description

This APDI A/C condenser, part number 7013739, is engineered for BMW HVAC systems that use a parallel flow design. The condenser core measures 24-3/4 inches long, 15-3/4 inches high, and 5/8 inch thick, with block connection fittings at both the inlet and outlet. The included receiver/drier adds an important service component for maintaining refrigerant system cleanliness and moisture control. Compatible BMW applications include 2007-2013 335i, 2013 335i with Mfr Body Code E93, 2009-2013 335i xDrive, 2011-2013 335is, 2007-2008 335xi, 2009-2011 335d, 2008-2013 135i, 2013 135is, 2011 1 Series M, 2011 323i, 2007 330i, 2013-2015 X1, and 2013-2016 Z4. This part cross-references CSF 3739 for the same application.

What It Is Used For

• Replacing a leaking or damaged A/C condenser.
• Restoring refrigerant heat transfer in the air conditioning system.
• Addressing poor cooling caused by restricted condenser flow.
• Servicing BMW HVAC systems with block connection fittings.
• Replacing a condenser assembly that includes a receiver/drier.

Installation Notes and Tips

Verify condenser dimensions and fitting style before installation. Confirm the vehicle’s BMW application and note any body-code or model-specific details listed in the fitment data. Inspect the A/C system for contamination or leaks before charging the system after replacement. Part number 7013739 should be matched to the listed fitment only.

Quality Assurance

APDI supplies HVAC replacement components for service applications, and this condenser is built to the listed parallel flow specification for the stated BMW fitments.
