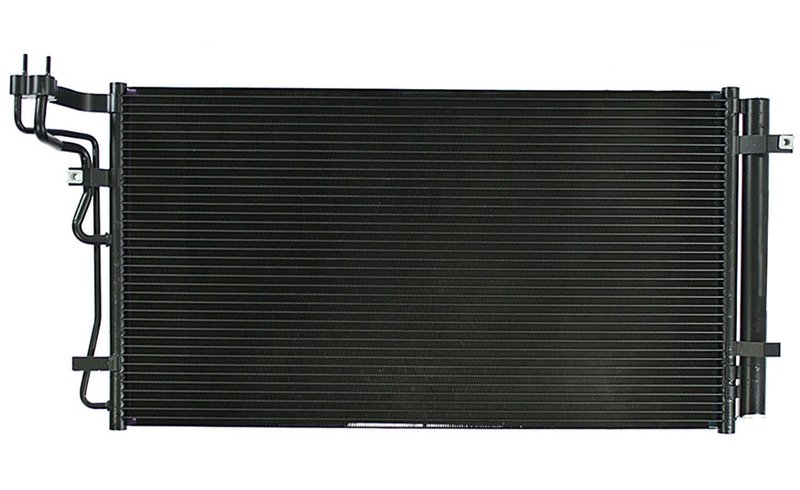

APDI 7013761 A/C Condenser

Overview of APDI 7013761 A/C Condenser for Hyundai Equus and Genesis

The APDI 7013761 A/C Condenser is designed specifically for Hyundai Equus and Genesis models, providing reliable cooling performance. This condenser features a parallel flow core construction and includes a receiver/drier for enhanced system efficiency.

• Parallel flow core construction for efficient heat exchange
• Core dimensions: 16-5/8 inches height, 27-5/16 inches length, and 5/8 inch thickness
• Block connection inlet and outlet fittings for secure installation
• Includes receiver/drier to maintain system cleanliness and moisture control
• Compatible with Hyundai Equus and Genesis models

Detailed Features of the APDI Condenser Brand Line

The APDI Condenser product line focuses on delivering durable and efficient A/C condensers tailored to specific vehicle applications. The 7013761 part benefits from this line's emphasis on parallel flow core technology, which improves refrigerant flow and heat dissipation. This design supports consistent air conditioning performance in Hyundai Equus and Genesis vehicles.

Technical Description and Specifications

This A/C condenser utilizes a parallel flow core material and construction, which enhances heat transfer by allowing refrigerant to flow through multiple flat tubes arranged in parallel. The core measures 16-5/8 inches in height, 27-5/16 inches in length, and 5/8 inch in thickness, providing a compact yet effective cooling surface. Both the inlet and outlet fittings use block connections, ensuring a secure and leak-resistant fit. Additionally, the included receiver/drier helps to filter contaminants and remove moisture from the refrigerant, protecting the A/C system components.

Common Applications and Problem Resolution

• Replaces faulty or leaking A/C condensers in Hyundai Equus and Genesis models
• Addresses reduced cooling efficiency due to clogged or damaged condenser cores
• Solves refrigerant leaks caused by corrosion or physical damage
• Helps restore proper refrigerant flow and pressure in the A/C system
• Prevents moisture-related damage with the included receiver/drier

Installation Notes and Tips

When installing the APDI 7013761 A/C Condenser, ensure compatibility with Hyundai Equus and Genesis models by verifying part number and fitment. Proper handling of the block connection fittings is essential to avoid leaks. It is recommended to evacuate and recharge the A/C system after installation to maintain optimal performance. Inspect the receiver/drier and replace it if necessary to ensure system cleanliness.

Quality Assurance and Warranty Information

APDI A/C condensers are manufactured to meet OEM specifications for fit, form, and function. The 7013761 part undergoes quality control testing to ensure durability and performance. Warranty coverage details should be confirmed with the supplier or manufacturer, as they may vary by region and distributor.
