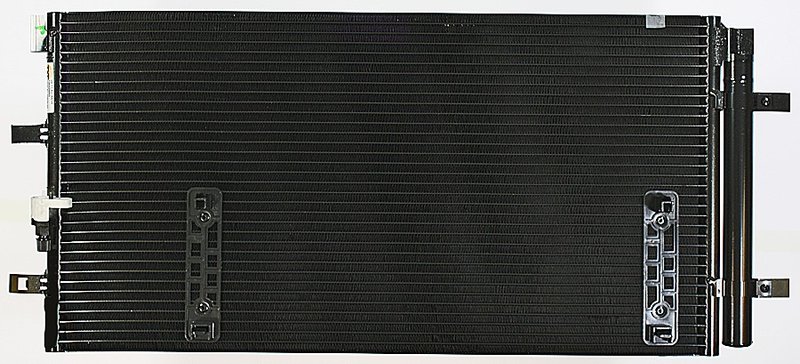

APDI 7013868 A/C Condenser

Overview of APDI 7013868 A/C Condenser for Audi Vehicles

The APDI 7013868 A/C Condenser is designed specifically for select Audi models including the A4, A4 Quattro, A5, A5 Quattro, Q5, S4, and S5. This condenser features a parallel flow core construction that enhances heat dissipation and overall air conditioning efficiency.

• Parallel flow core construction for improved cooling performance
• Core dimensions: 13-3/8 inches height, 25-1/4 inches length, and 5/8 inch thickness
• Block connection type for both inlet and outlet fittings
• Includes receiver/drier for system protection and moisture removal
• Compatible with multiple Audi models including A4, A5, Q5, S4, and S5

Detailed Product Features and Specifications

The APDI Condenser 7013868 utilizes a parallel flow core design, which allows refrigerant to flow through multiple flat tubes in parallel, increasing heat exchange efficiency and reducing pressure drop. The core measures 13-3/8 inches in height, 25-1/4 inches in length, and 5/8 inch in thickness, providing a compact yet effective cooling surface. Both the inlet and outlet fittings use block connections, ensuring secure and leak-resistant attachment to the vehicle’s HVAC system. This condenser also includes a receiver/drier, which helps to remove moisture and contaminants from the refrigerant, protecting the A/C system components and maintaining optimal performance.

About the APDI Condenser Product Line

The APDI Condenser product line focuses on delivering reliable and precise HVAC components tailored for specific vehicle applications. The Condenser line emphasizes quality core materials and construction methods such as parallel flow technology to meet OEM standards. The 7013868 part is a representative example, engineered to fit Audi’s A4, A5, Q5, S4, and S5 models, ensuring compatibility and efficient air conditioning operation.

Common Applications and Problem Resolution

• Replaces faulty or leaking A/C condensers in Audi A4, A5, Q5, S4, and S5 models
• Addresses reduced cooling efficiency due to clogged or damaged condenser cores
• Solves refrigerant leaks caused by corrosion or physical damage
• Restores proper refrigerant flow and pressure in the A/C system
• Prevents moisture contamination with the included receiver/drier

Installation Notes and Tips

When installing the APDI 7013868 condenser, ensure the vehicle’s A/C system is fully evacuated and depressurized before removal of the old condenser. Verify that the block connection fittings are clean and free of debris to ensure a secure seal. It is recommended to replace the receiver/drier along with the condenser to maintain system integrity. After installation, perform a leak test and recharge the system with the appropriate refrigerant type and amount as specified by the vehicle manufacturer.

Quality Assurance and Warranty Information

APDI condensers are manufactured to meet or exceed OEM specifications, using durable materials and tested for performance reliability. The 7013868 part undergoes quality control inspections to ensure proper fitment and function. Warranty coverage details should be confirmed with the distributor or retailer, as they may vary by region and purchase conditions.
